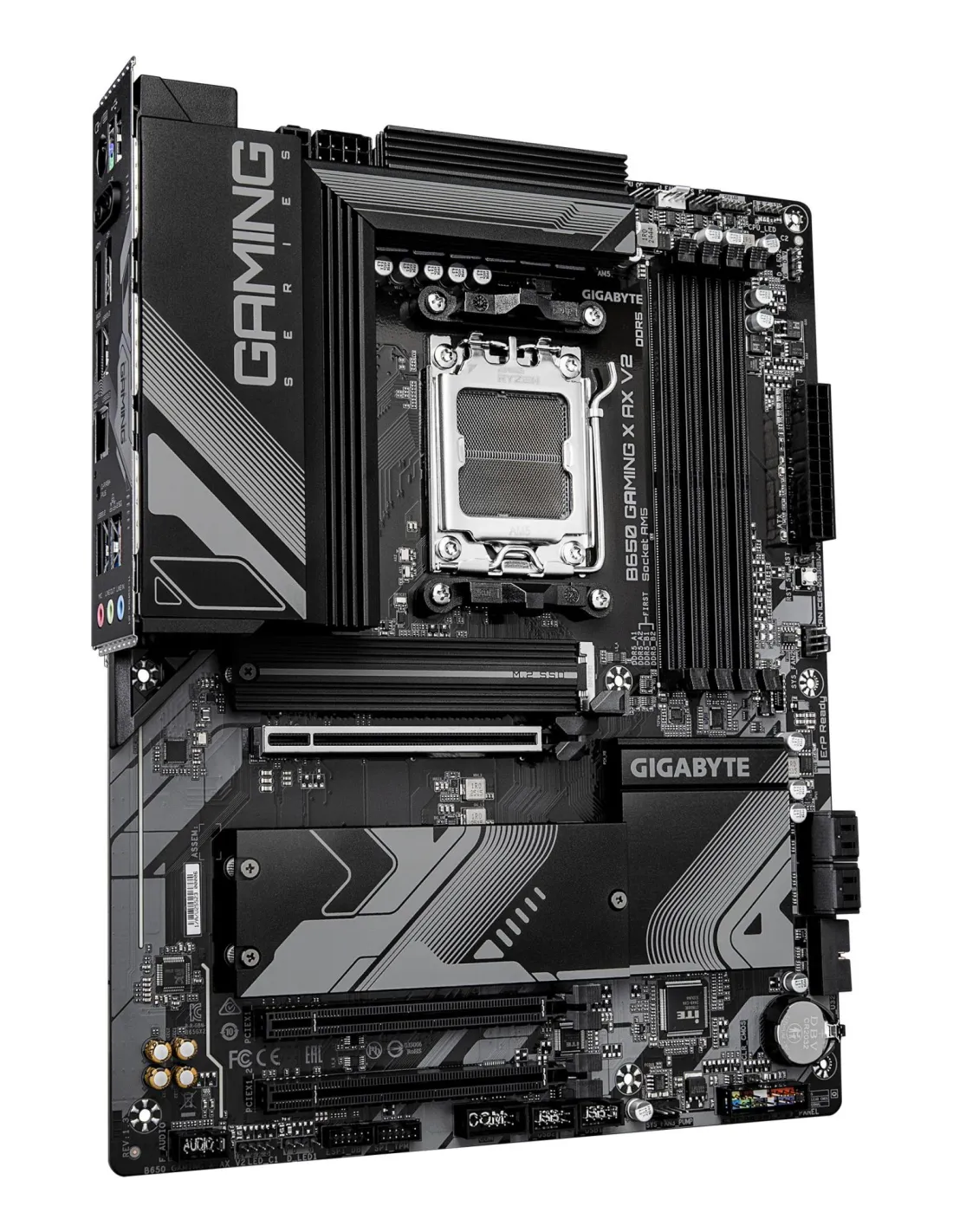

GIGABYTE B650 GAMING X AX V2 pagrindinė plokštė – plokštės vaizdas kampu

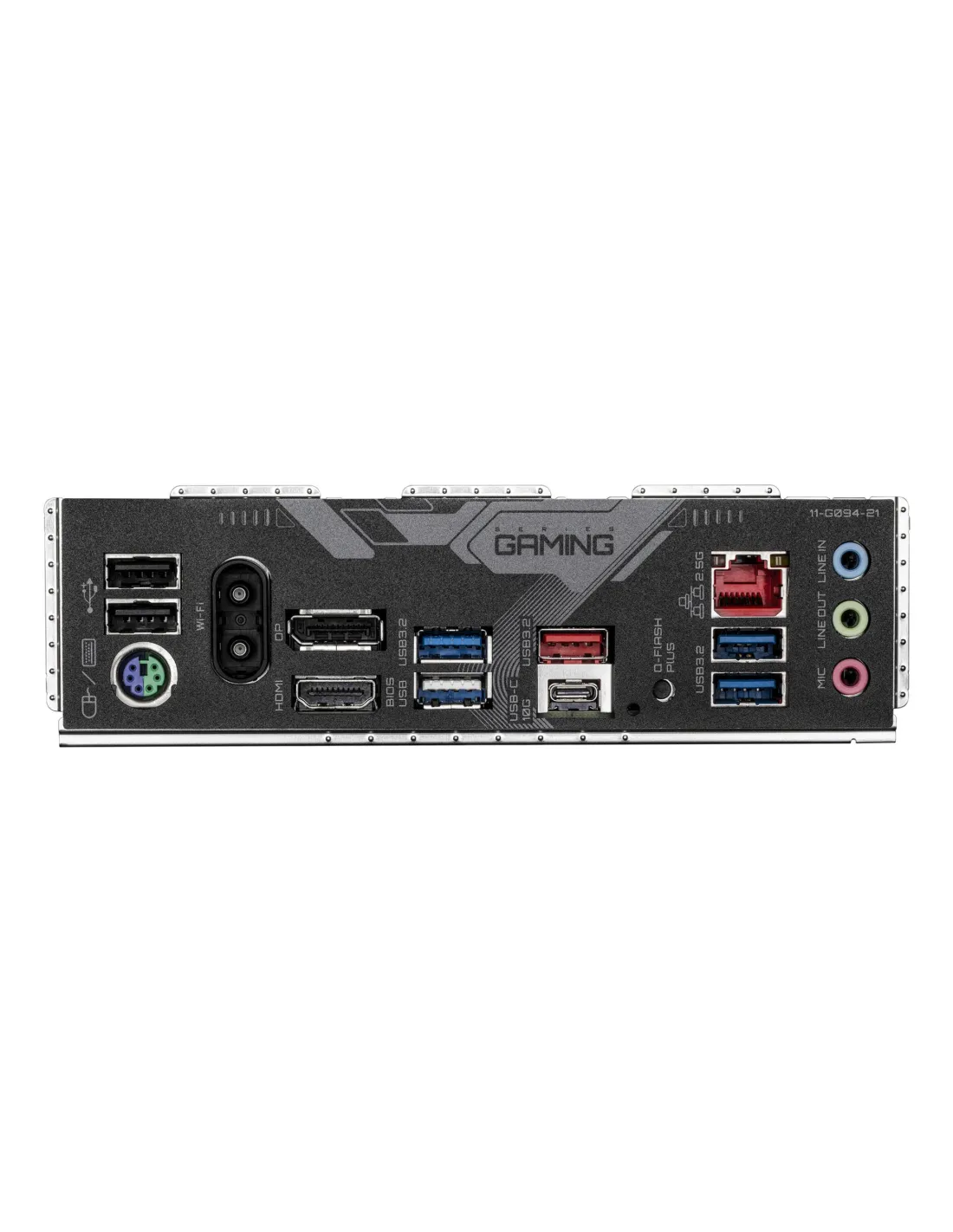

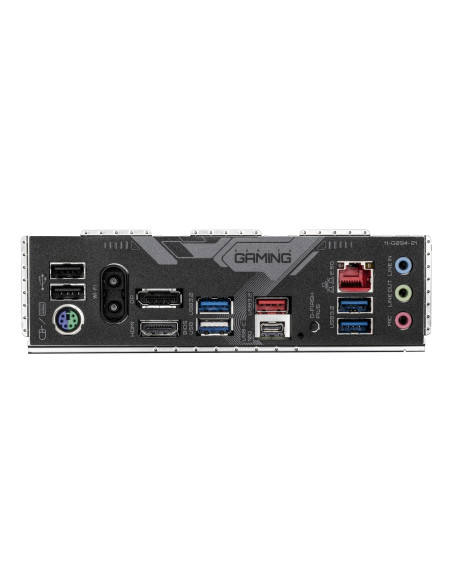

GIGABYTE B650 GAMING X AX V2 pagrindinė plokštė – galinės įvesties ir išvesties jungtys

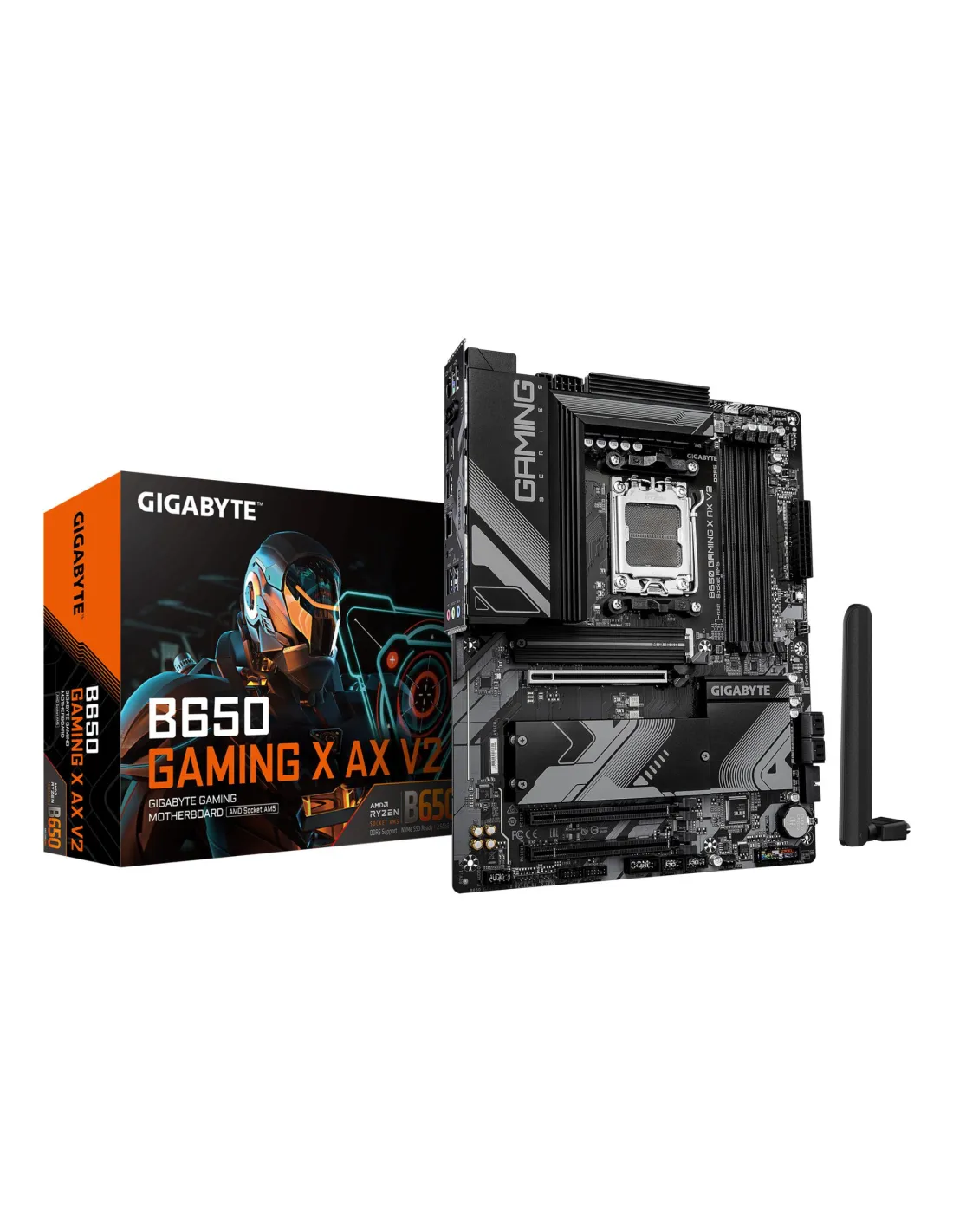

GIGABYTE B650 GAMING X AX V2 pagrindinė plokštė – plokštė ir pakuotė

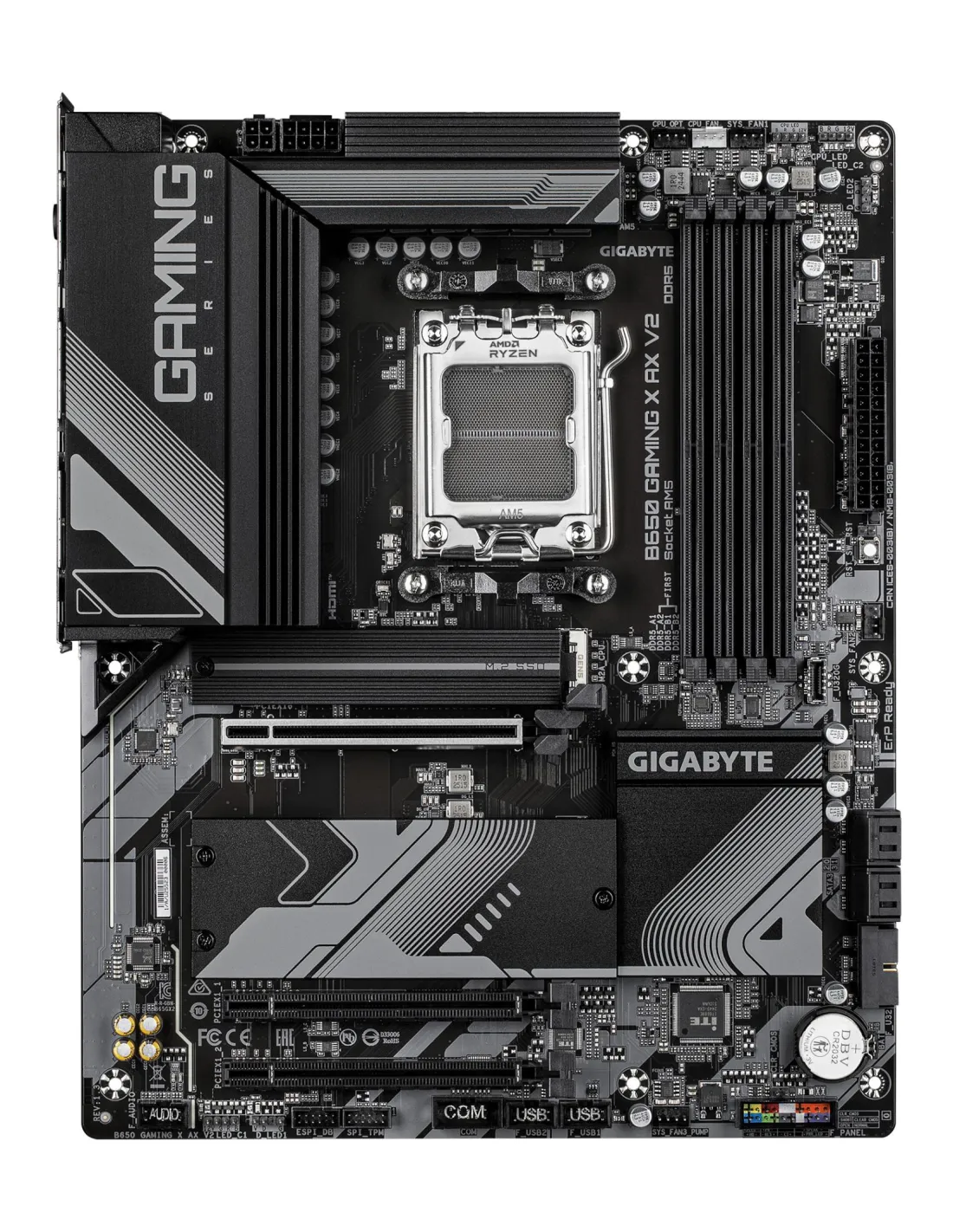

GIGABYTE B650 GAMING X AX V2 pagrindinė plokštė – vaizdas iš viršaus
GIGABYTE B650 GAMING X AX V2 pagrindinė plokštė – plokštės vaizdas kampu
GIGABYTE B650 GAMING X AX V2 pagrindinė plokštė – galinės įvesties ir išvesties jungtys
GIGABYTE B650 GAMING X AX V2 pagrindinė plokštė – plokštė ir pakuotė
GIGABYTE B650 GAMING X AX V2 pagrindinė plokštė – vaizdas iš viršaus

Gigabyte B650 GAMING X AX V2 (rev. 1.3) pagrindinė plokštė

B650 GAMING X AX V2 1.3
Turime Lietuvoje
135,40 €
Pristatome 1 - 3 d.d.

AMD B650 , ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces PCI Express 4.0,PCI Express 5.0,SATA III , 4096 x 2160 pixels , 3xUSB 2.0 ports quantity , 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes


CATEGORY CODE
MBA
CNCODE
84733020
UNIT BOX HEIGHT
0.27
UNIT BOX LENGTH
0.335
UNIT BOX WIDTH
0.08
UNIT CALCULATED WEIGHT, KG
2.13
UNIT CALCULATED VOLUME, CUBM
0.01033
UNITS PER SHIPPING BOX
8
SIUNTOS PAKUOTĖS SVORIS, KG
17
UNIT WIDTH, CM
8
SUMMARY
GIGABYTE B650 GAMING X AX V2 (REV. 1.3). PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES, AMD RYZEN 9000 SERIES, AMD RYZEN 8000 SERIES. SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMO
SIUNTOS PAKUOTĖS AUKŠTIS, CM
38
UNIT DEPTH, CM
33.5
SIUNTOS PAKUOTĖS ILGIS, CM
58
UNIT HEIGHT, CM
27
SIUNTOS PAKUOTĖS PLOTIS, CM
37.5
NAME
MB AMD B650 SAM5 ATX/B650 GAMING X AX V2 GIGABYTE
PRODUCT COLOUR
BLACK
NUMBER OF STORAGE DRIVES SUPPORTED
7
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY
1
PLOTIS, MM
305
ILGIS, MM
244
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-C PORTS QUANTITY
1
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY
3
MOTHERBOARD CHIPSET
AMD B650
HIGH DYNAMIC RANGE (HDR) SUPPORTED
TAIP
HDMI PORTS QUANTITY
1
HDMI VERSION
2.1
DISPLAYPORTS QUANTITY
1
DISPLAYPORT VERSION
1.4
HEADPHONE OUTPUTS
3
CABLES INCLUDED
SATA
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN)
1
MAXIMUM RESOLUTION, PIXELS
4096 X 2160
PARALLEL PROCESSING TECHNOLOGY SUPPORT
NOT SUPPORTED
WINDOWS OPERATING SYSTEMS SUPPORTED
WINDOWS 10 X64/WINDOWS 11 X64
PC HEALTH MONITORING
FAN/TEMPERATURE/VOLTAGE/WATER COOLING
COMPONENT FOR
PC
MOTHERBOARD FORM FACTOR
ATX
AUDIO OUTPUT CHANNELS, CHANNELS
7.1
MOTHERBOARD CHIPSET FAMILY
AMD
PROCESSOR MANUFACTURER
AMD
PROCESSOR SOCKET
SOCKET AM5
COMPATIBLE PROCESSOR SERIES
AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
SUPPORTED PROCESSOR SOCKETS
SOCKET AM5
SUPPORTED MEMORY TYPES
DDR5-SDRAM
NUMBER OF MEMORY SLOTS
4
MEMORY SLOTS TYPE
DIMM
MEMORY CHANNELS
DUAL-CHANNEL
ECC СOMPATIBILITY
NON-ECC
SUPPORTED MEMORY CLOCK SPEEDS, MHZ
4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ
8000
MAXIMUM INTERNAL MEMORY, GB
256
UNBUFFERED MEMORY
TAIP
SUPPORTED STORAGE DRIVE TYPES
HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES
PCI EXPRESS 4.0,PCI EXPRESS 5.0,SATA III
RAID SUPPORT
TAIP
RAID LEVELS
0/1/10
HDCP
TAIP
MAXIMUM INTERNAL MEMORY PER SLOT, GB
64
USB 2.0 CONNECTORS
2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS
1
HDCP VERSION
2.3
NUMBER OF SATA III CONNECTORS
4
FRONT PANEL AUDIO CONNECTOR
TAIP
FRONT PANEL CONNECTOR
TAIP
ATX POWER CONNECTOR (24-PIN)
TAIP
CPU FAN CONNECTOR
TAIP
NUMBER OF CPU FAN CONNECTORS
1
EPS POWER CONNECTOR (8-PIN)
TAIP
NUMBER OF EPS POWER CONNECTORS (8-PIN)
1
USB 3.2 GEN 2X2 CONNECTORS
1
NUMBER OF WATER PUMP CONNECTORS
1
TPM CONNECTOR
TAIP
RGB LED PIN HEADER
TAIP
NUMBER OF RGB LED PIN HEADERS
3
ETHERNET LAN (RJ-45) PORTS
1
LINE-IN
TAIP
WIFI-AP ANTENNA JACK
2
ETHERNET LAN
TAIP
ETHERNET INTERFACE TYPE
2.5 GIGABIT ETHERNET/FAST ETHERNET/GIGABIT ETHERNET
WI-FI
TAIP
TOP WI-FI STANDARD
WI-FI 6E (802.11AX)
WI-FI STANDARDS
802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)
WLAN CONTROLLER MODEL
INTEL WI-FI 6E AX210
BLUETOOTH
TAIP
BLUETOOTH VERSION
5.3
NUMBER OF M.2 (M) SLOTS
3
1ST M.2 LARGEST KEY SIZE
25110
1ST M.2 HIGHEST PCI EXPRESS GENERATION
5.0
2ND M.2 LARGEST KEY SIZE
25110
2ND M.2 HIGHEST PCI EXPRESS GENERATION
4.0
3RD M.2 LARGEST KEY SIZE
25110
3RD M.2 HIGHEST PCI EXPRESS GENERATION
4.0
BIOS TYPE
UEFI AMI
BIOS MEMORY SIZE, MBIT
256
ACPI VERSION
5.0
CLEAR CMOS JUMPER
TAIP
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION
2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION
2.7
ANTENNA INCLUDED
TAIP
SCREWS INCLUDED
TAIP
BUNDLED SOFTWARE
NORTON INTERNET SECURITY
12V POWER CONNECTOR
TAIP
USB 2.0 PORTS QUANTITY
3
MICROPHONE IN
TAIP
PCI EXPRESS X16 SLOTS
3
SERIAL PORT HEADERS
1
PS/2 PORTS QUANTITY
1
USB CONNECTOR TYPE
USB TYPE-A/USB TYPE-C
30 Prekės
4719331860073
