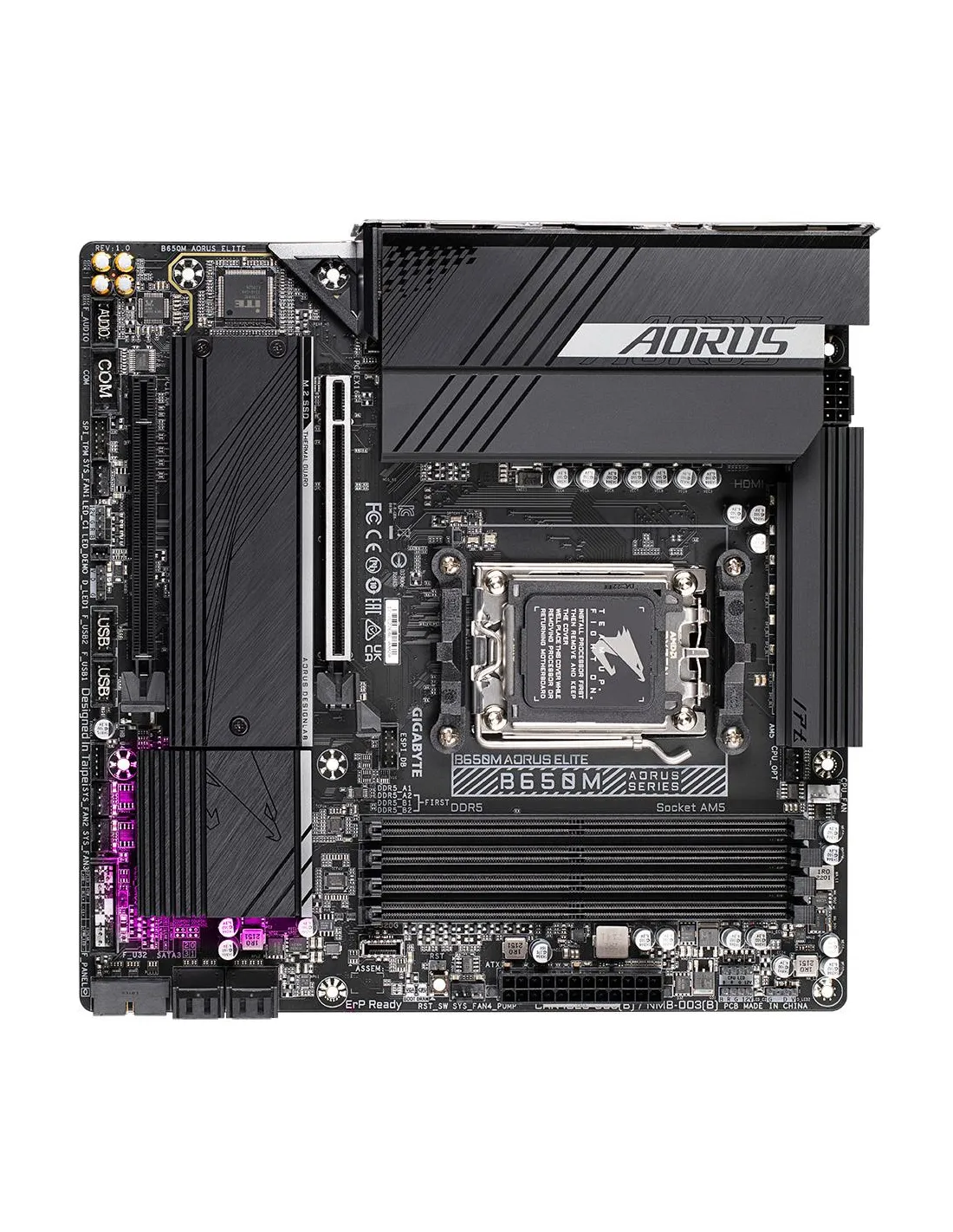

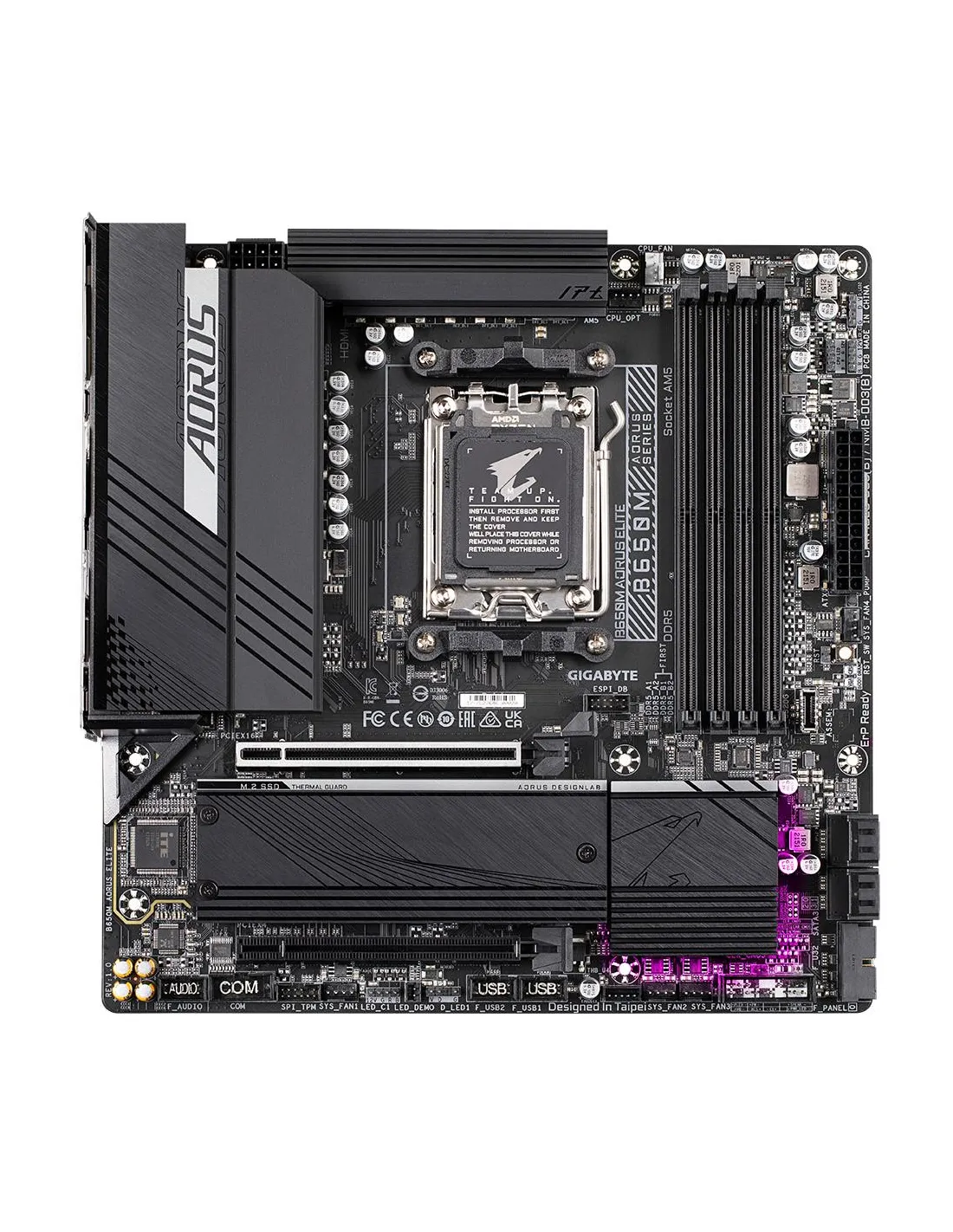

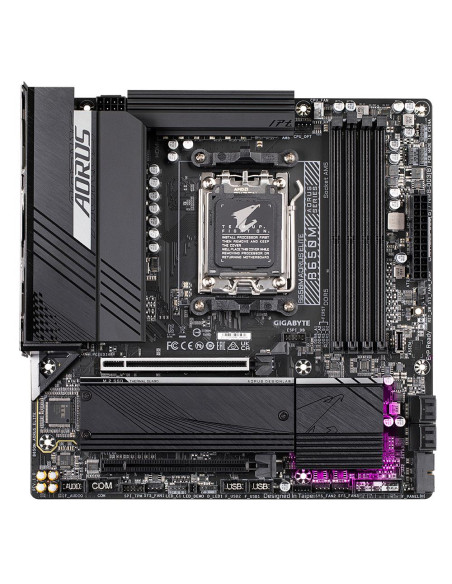

GIGABYTE B650M AORUS ELITE pagrindinė plokštė – vaizdas iš viršaus

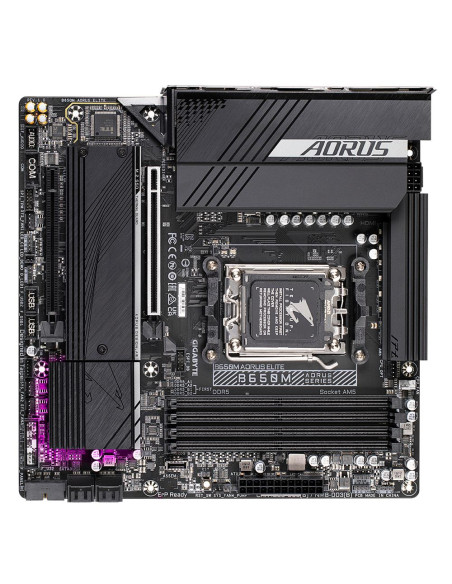

GIGABYTE B650M AORUS ELITE pagrindinė plokštė – procesoriaus ir atminties lizdai

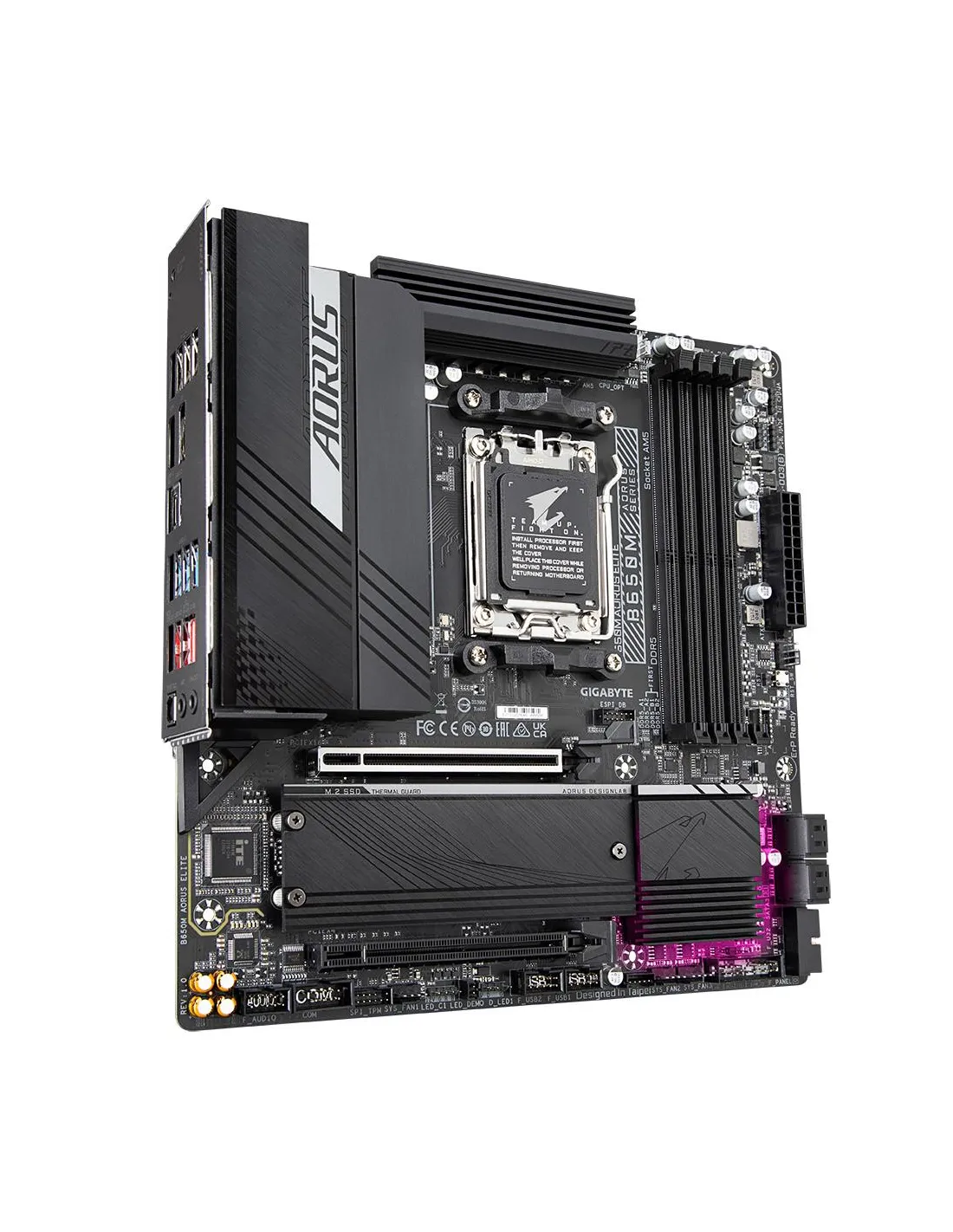

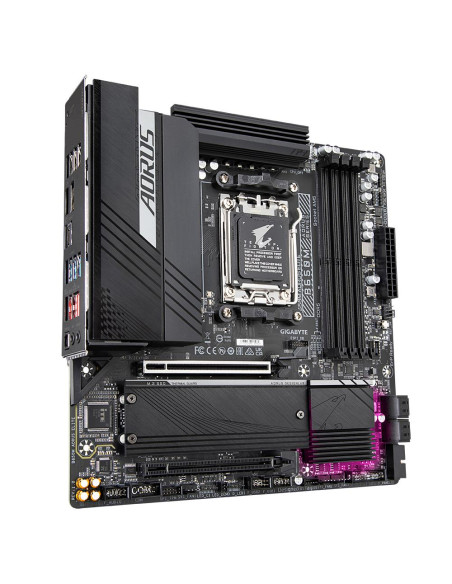

GIGABYTE B650M AORUS ELITE pagrindinė plokštė – plokštės vaizdas kampu

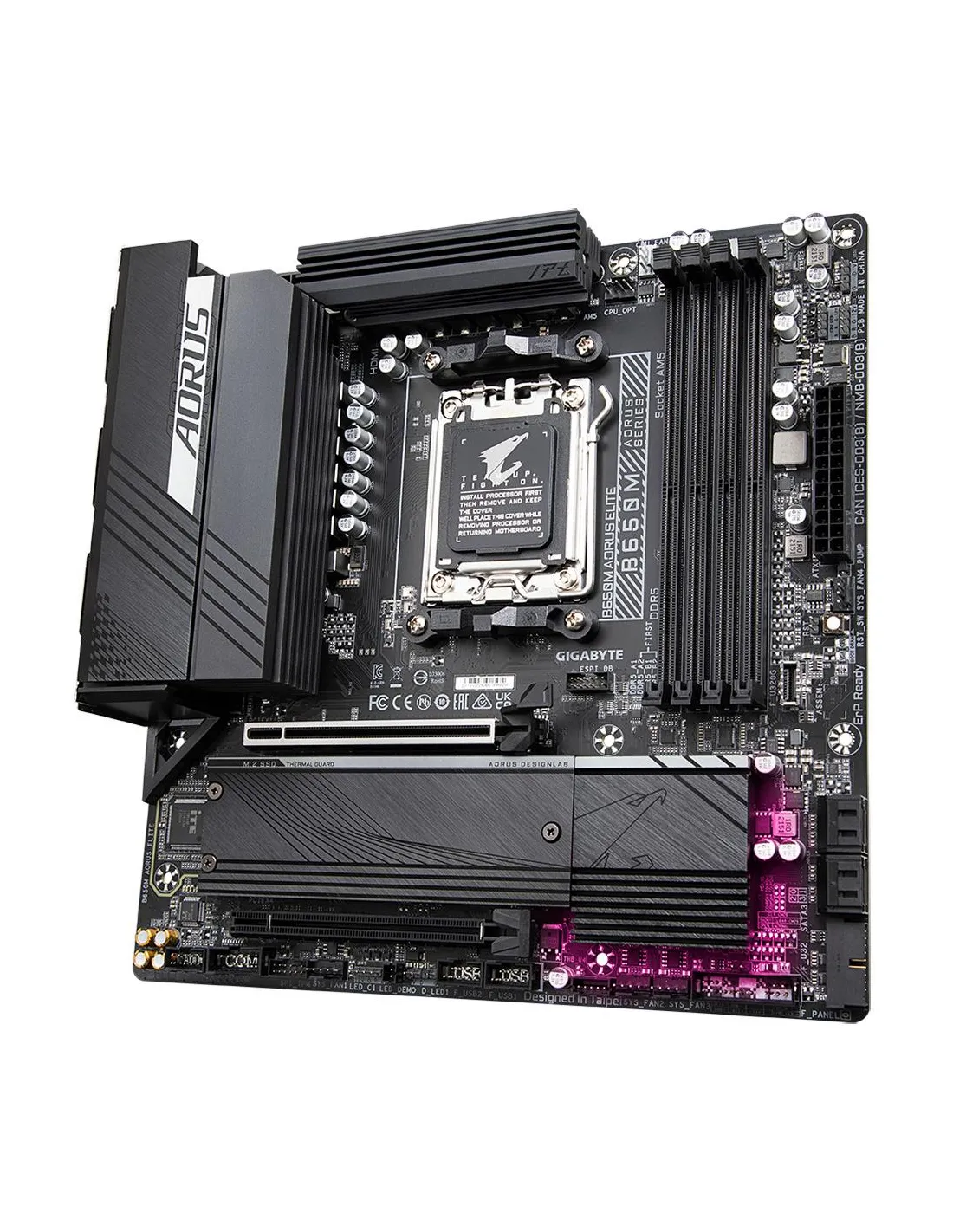

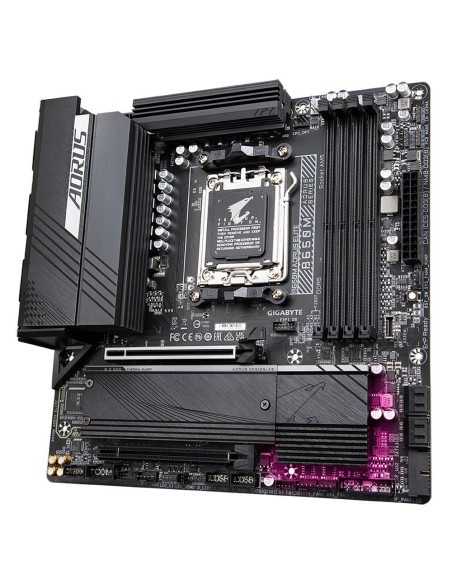

GIGABYTE B650M AORUS ELITE pagrindinė plokštė – radiatoriai ir komponentai kampu

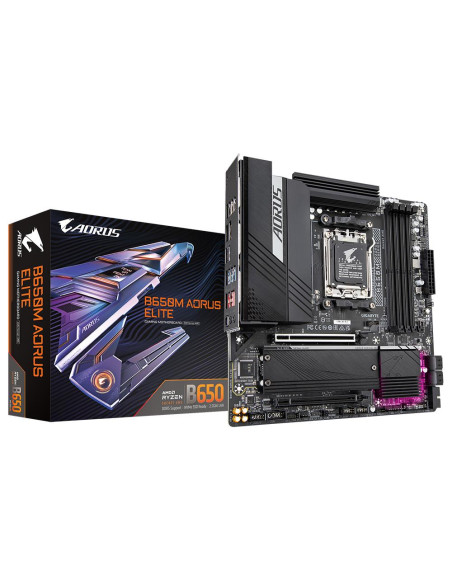

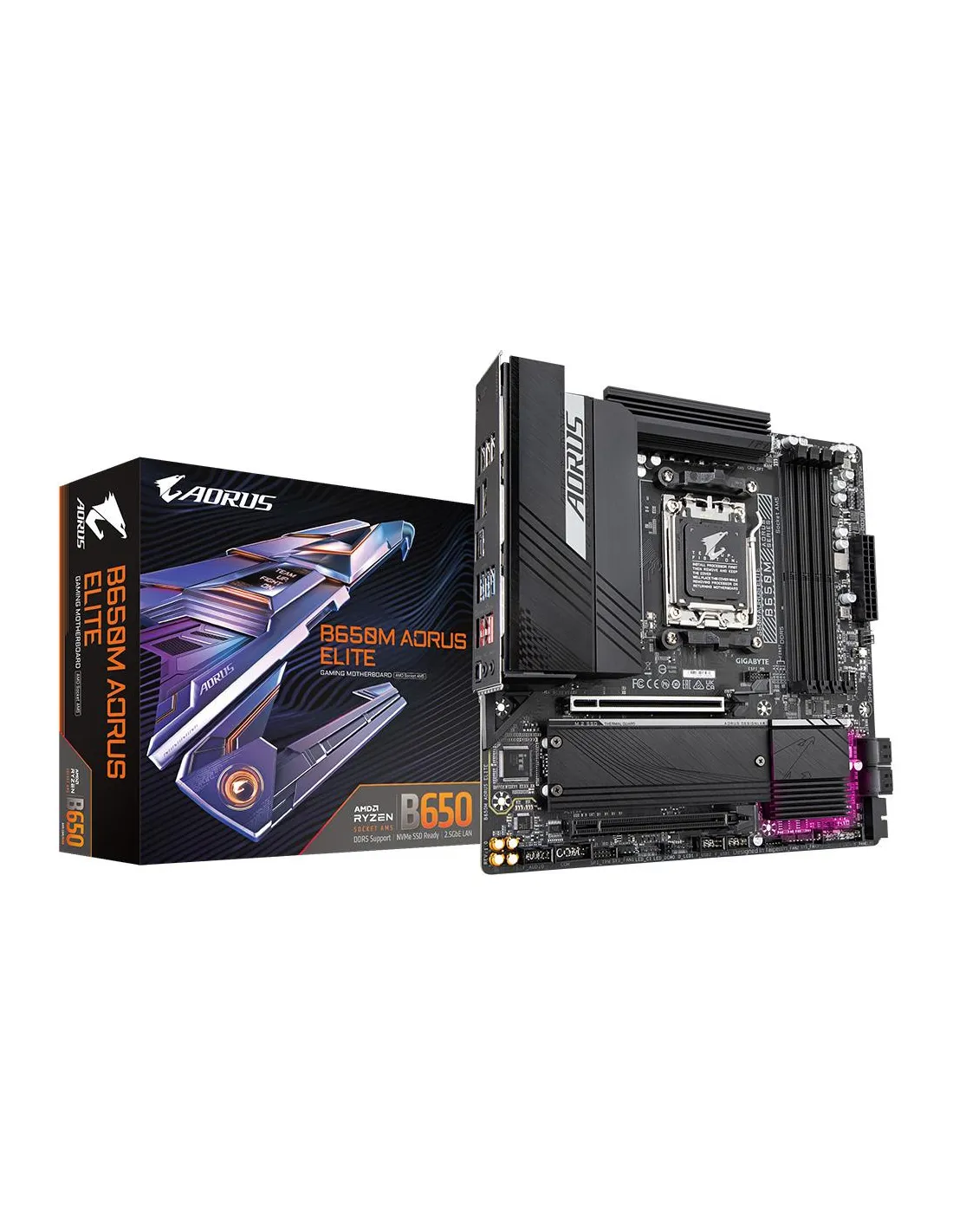

GIGABYTE B650M AORUS ELITE pagrindinė plokštė – plokštė ir pakuotė

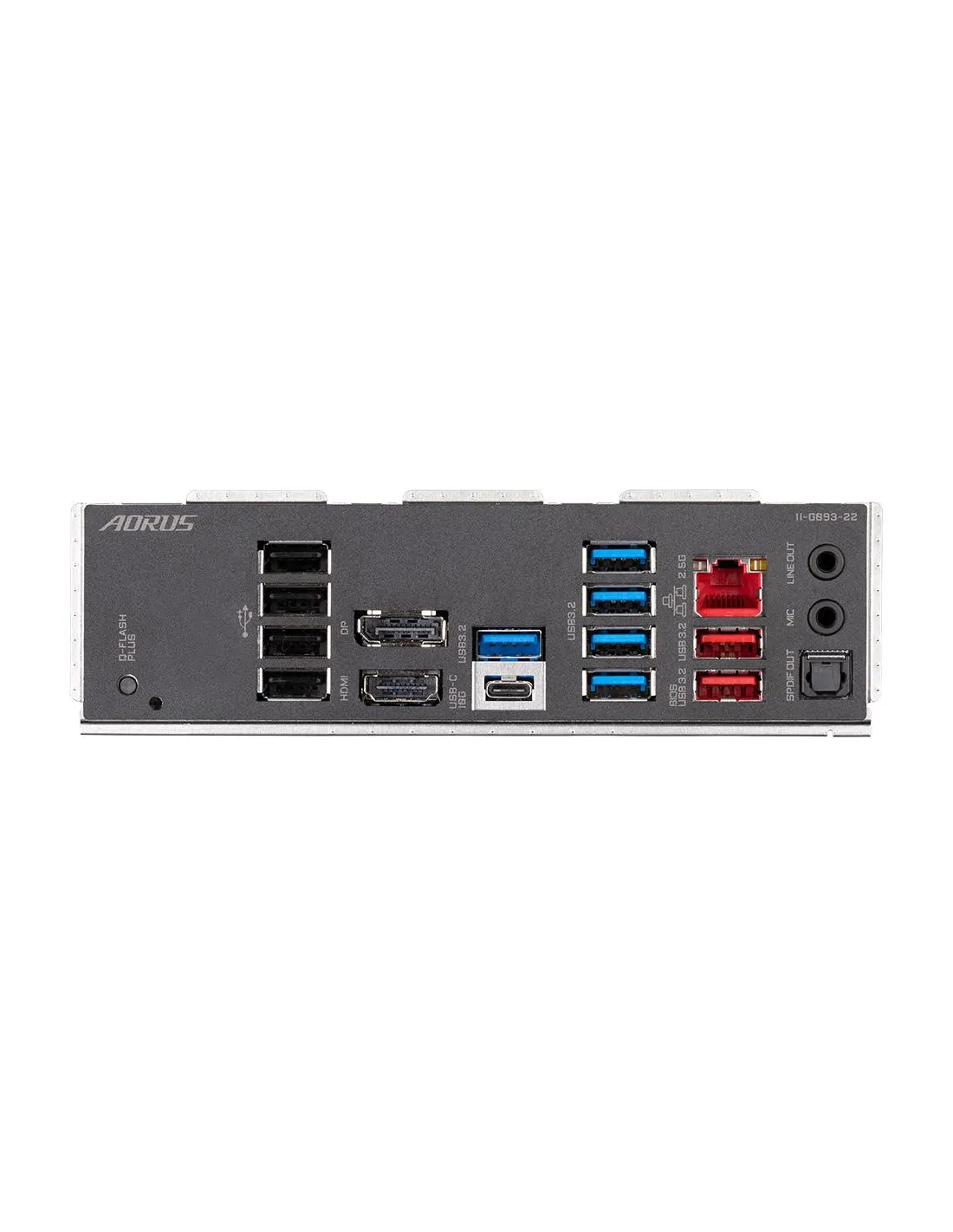

GIGABYTE B650M AORUS ELITE pagrindinė plokštė – galinės įvesties ir išvesties jungtys

Gigabyte B650M AORUS ELITE (rev. 1.3) pagrindinė plokštė

Name: Gigabyte B650M AORUS ELITE (rev. 1.3) pagrindinė plokštė
Brand: GIGABYTE
SKU: B650M AORUS ELITE 1.3
Price: 132.01 EUR
Availability: InStock

Kodas B650M AORUS ELITE 1.3

Turime Lietuvoje

132,01 €

Pristatome 1 - 3 d.d.

AMD B650 , ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4096 x 2160 pixels , 4xUSB 2.0 ports quantity , 5xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Weight 1.66 kg

Prekė detaliau
Atsiliepimai (0)

CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.069
UNIT BOX LENGTH: 0.274
UNIT BOX WIDTH: 0.267
UNIT CALCULATED WEIGHT, KG: 1.86
PRODUCT NET WEIGHT, KG: 0.7
UNIT CALCULATED VOLUME, CUBM: 0.007239
UNITS PER SHIPPING BOX: 8
SIUNTOS PAKUOTĖS SVORIS, KG: 14.85
UNIT WIDTH, CM: 26.7
SUMMARY: GIGABYTE B650M AORUS ELITE MOTHERBOARD - AMD RYZEN 9000 CPUS, 12+2+2 PHASES VRM, UP TO 8000MHZ DDR5, 1XPCIE 5.0 + 1XPCIE 4.0 M.2, 2.5GBE LAN, USB 3.2 GEN 2X2. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERIES: AMD RYZE
SIUNTOS PAKUOTĖS AUKŠTIS, CM: 31.1
UNIT DEPTH, CM: 27.4
SIUNTOS PAKUOTĖS ILGIS, CM: 57.3
UNIT HEIGHT, CM: 6.9
SIUNTOS PAKUOTĖS PLOTIS, CM: 32.5
NAME: MB AMD B650 SAM5 MATX/B650M AORUS ELITE 1.3 GIGABYTE
PRODUCT COLOUR: BLACK
NUMBER OF STORAGE DRIVES SUPPORTED: 6
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 2
PLOTIS, MM: 244
ILGIS, MM: 244
AUKŠTIS, MM: 35
WEIGHT, G: 1660
PACKAGE WIDTH, MM: 270
PACKAGE DEPTH, MM: 268
PACKAGE HEIGHT, MM: 68
PACKAGE WEIGHT, G: 1.9
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 5
MODEL: B650M AORUS ELITE 1.3
MOTHERBOARD CHIPSET: AMD B650
HDMI PORTS QUANTITY: 1
HDMI VERSION: 2.1
DISPLAYPORTS QUANTITY: 1
DISPLAYPORT VERSION: 1.4
HEADPHONE OUTPUTS: 1
WARRANTY PERIOD, YEAR(S): 3
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
COOLING TYPE: PASSIVE
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
DIRECTX VERSION: 12.0
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
AUDIO CHIP: REALTEK ALC897
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
COMPONENT FOR: PC
MOTHERBOARD FORM FACTOR: ATX
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET FAMILY: AMD
POWER SOURCE TYPE: ATX
PROCESSOR MANUFACTURER: AMD
PROCESSOR SOCKET: SOCKET AM5
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
SUPPORTED MEMORY TYPES: DDR5-SDRAM
NUMBER OF MEMORY SLOTS: 4
MEMORY SLOTS TYPE: DIMM
MEMORY CHANNELS: DUAL-CHANNEL
ECC СOMPATIBILITY: NON-ECC
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8000
MAXIMUM INTERNAL MEMORY, GB: 256
UNBUFFERED MEMORY: TAIP
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
NUMBER OF HDDS SUPPORTED: 4
RAID SUPPORT: TAIP
RAID LEVELS: 0/1/10
HDCP: TAIP
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
FRONT PANEL AUDIO CONNECTOR: TAIP
FRONT PANEL CONNECTOR: TAIP
ATX POWER CONNECTOR (24-PIN): TAIP
CPU FAN CONNECTOR: TAIP
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF CHASSIS FAN CONNECTORS: 4
EPS POWER CONNECTOR (8-PIN): TAIP
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
USB 3.2 GEN 2X2 CONNECTORS: 1
NUMBER OF WATER PUMP CONNECTORS: 2
TPM CONNECTOR: TAIP
RGB LED PIN HEADER: TAIP
NUMBER OF RGB LED PIN HEADERS: 5
USB 3.2 GEN 2X2 TYPE-C PORTS QUANTITY: 1
ETHERNET LAN (RJ-45) PORTS: 1
LINE-IN: TAIP
S/PDIF OUT PORT: TAIP
ETHERNET LAN: TAIP
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
LAN CONTROLLER: REALTEK RTL8125
WI-FI: NE
PCI EXPRESS X16 (GEN 4.X) SLOTS: 2
NUMBER OF M.2 (M) SLOTS: 2
1ST M.2 LARGEST KEY SIZE: 25110
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
2ND M.2 LARGEST KEY SIZE: 22110
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
BIOS TYPE: UEFI AMI
BIOS MEMORY SIZE, MBIT: 256
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: TAIP
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
COUNTRY OF ORIGIN: CHINA
BATTERY WEIGHT, G: 3
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
BATTERIES INCLUDED: TAIP
SCREWS INCLUDED: TAIP
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
12V POWER CONNECTOR: TAIP
USB 2.0 PORTS QUANTITY: 4
SERIAL PORT HEADERS: 1
THUNDERBOLT HEADERS: 1
