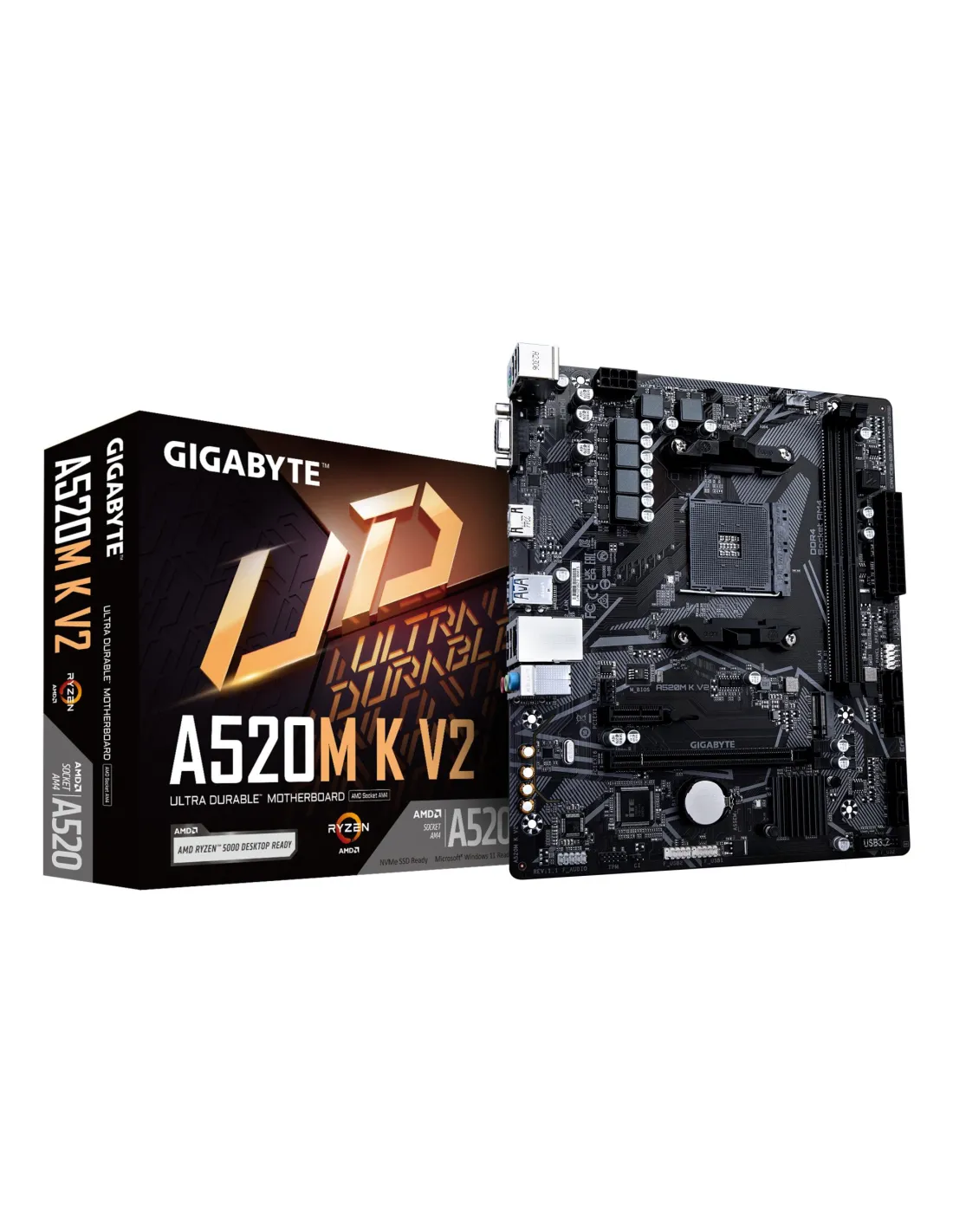

GIGABYTE A520M K V2 pagrindinė plokštė – plokštė ir pakuotė

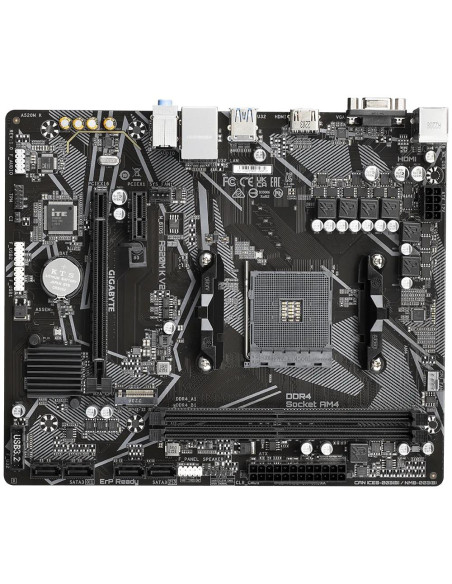

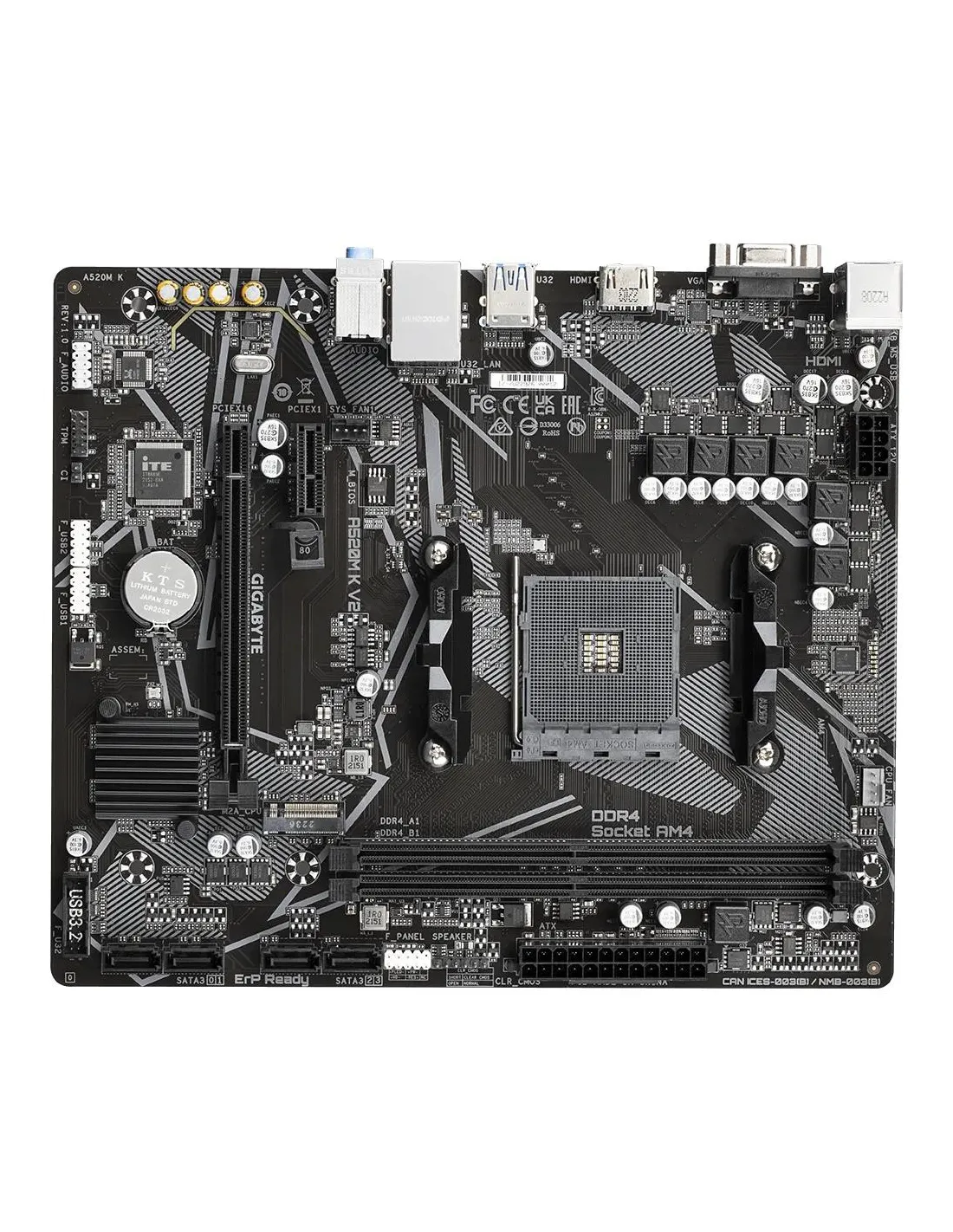

GIGABYTE A520M K V2 pagrindinė plokštė – komponentų ir lizdų išdėstymas

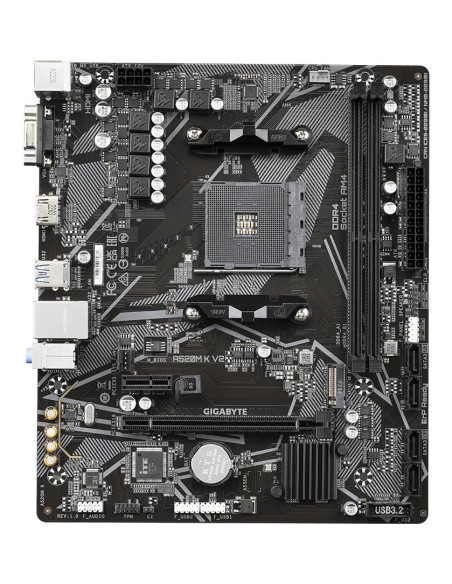

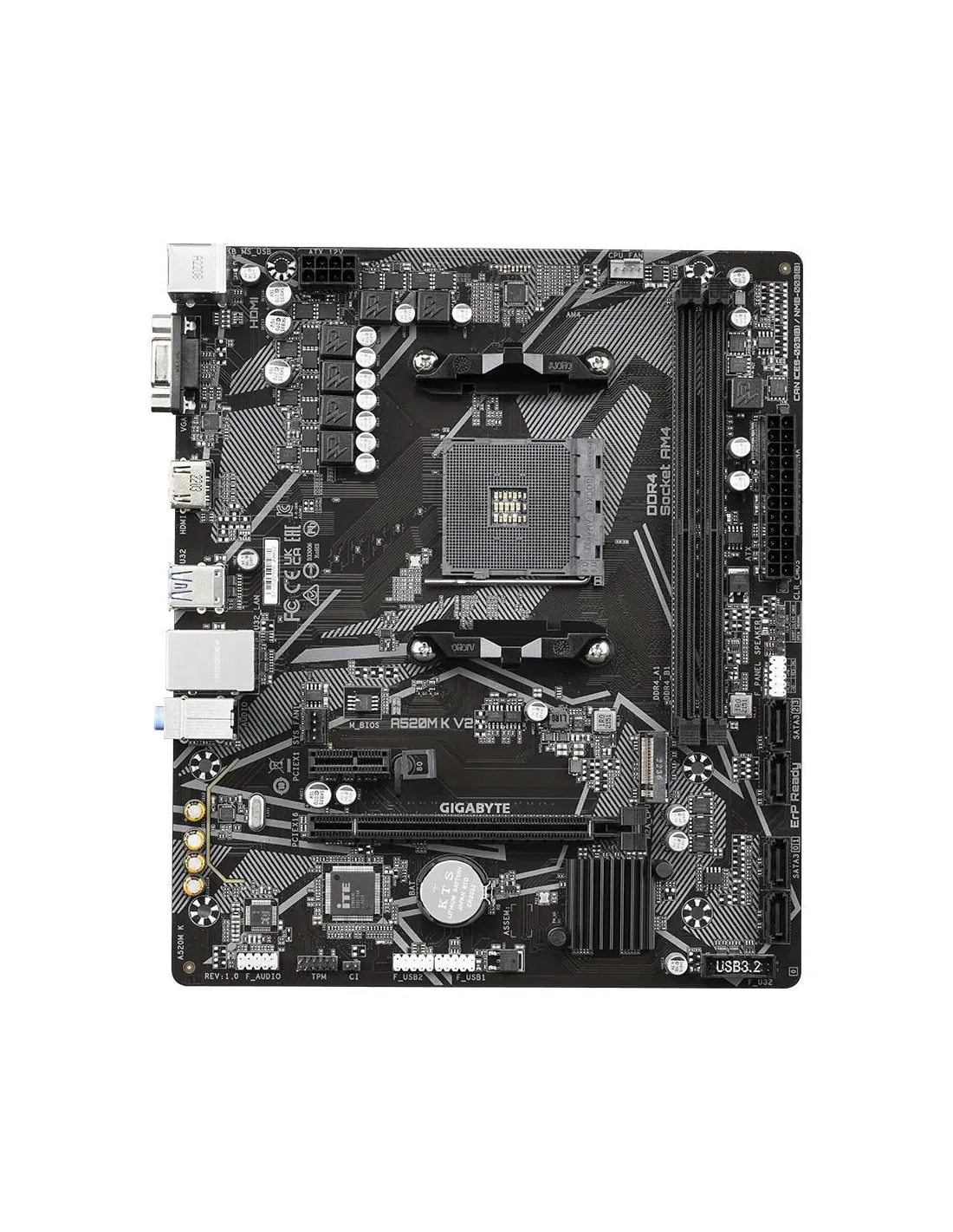

GIGABYTE A520M K V2 pagrindinė plokštė – vaizdas iš viršaus

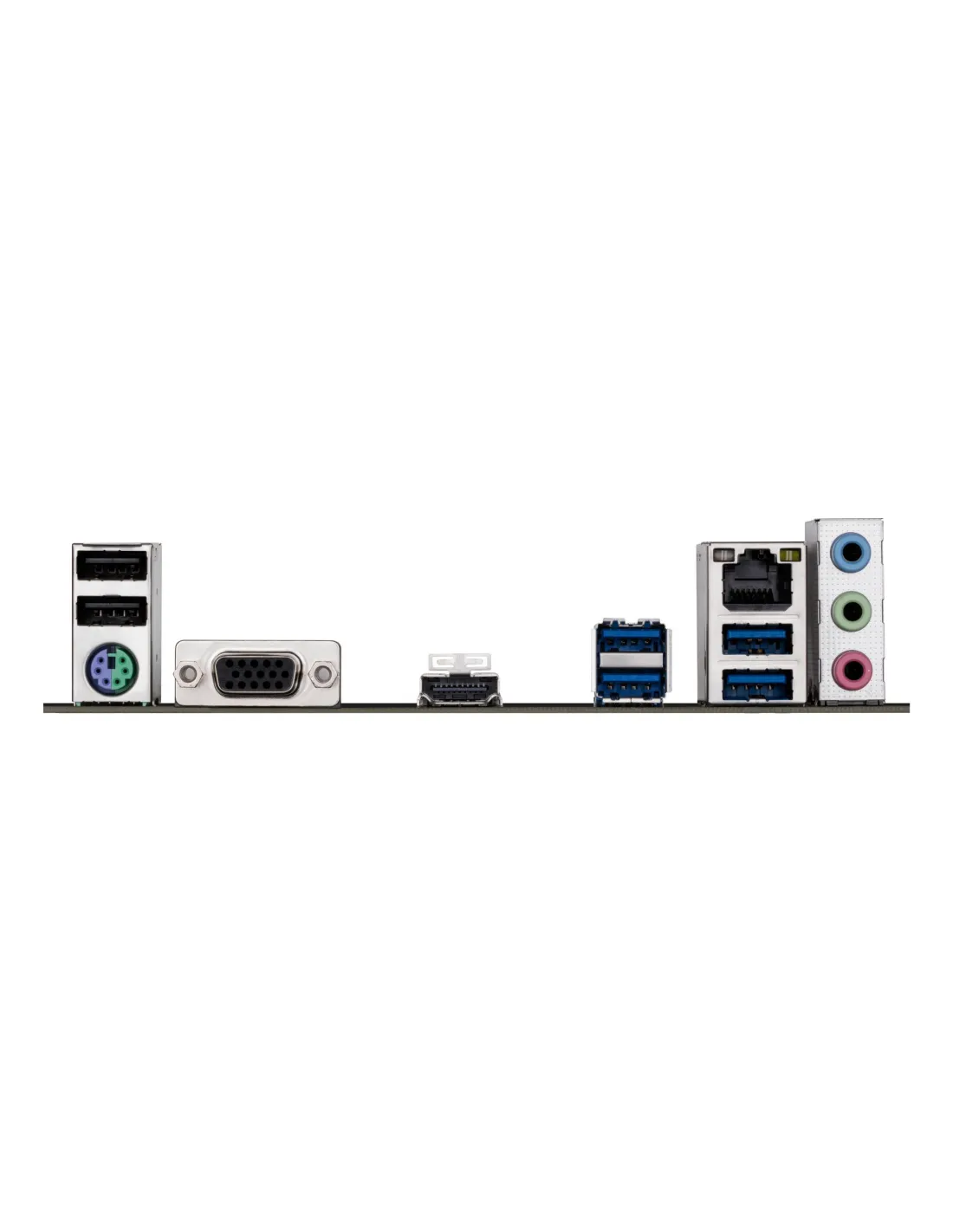

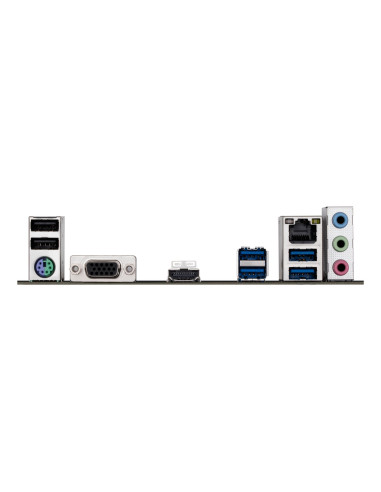

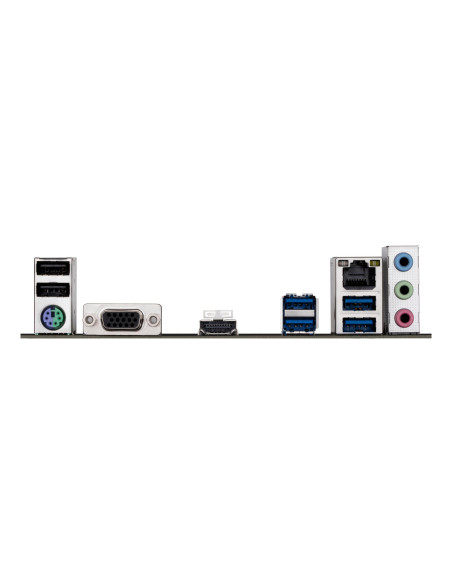

GIGABYTE A520M K V2 pagrindinė plokštė – galinės įvesties ir išvesties jungtys

Mainboard, GIGABYTE, AMD A520, SAM4, Micro-ATX, Memory DDR4, Memory slots 2, 1xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 1xM.2

Name: Mainboard, GIGABYTE, AMD A520, SAM4, Micro-ATX, Memory DDR4, Memory slots 2, 1xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 1xM.2
Brand: GIGABYTE
SKU: A520MKV21.1
Price: 48.56 EUR
Availability: InStock

Kodas A520MKV21.1

Turime Lietuvoje

48,56 €

Pristatome 1 - 3 d.d.

AMD A520 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM4 , Supported memory types DDR4-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4096 x 2160 pixels , 2xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xVGA (D-Sub) ports quantity , 1xHDMI ports quantity

Prekė detaliau
Atsiliepimai (0)

CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.05
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.23
UNIT CALCULATED WEIGHT, KG: 0.75
PRODUCT NET WEIGHT, KG: 0.5
UNIT CALCULATED VOLUME, CUBM: 0.004267
UNITS PER SHIPPING BOX: 10
SIUNTOS PAKUOTĖS SVORIS, KG: 7.5
UNIT WIDTH, CM: 23
SUMMARY: GIGABYTE A520M K V2 MOTHERBOARD - SUPPORTS AMD RYZEN 5000 SERIES AM4 CPUS, UP TO 5100MHZ DDR4 (OC), PCIE GEN3 X4 M.2, GBE LAN, USB 3.2 GEN 1. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM4, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES, AM
SIUNTOS PAKUOTĖS AUKŠTIS, CM: 26.5
UNIT DEPTH, CM: 27
SIUNTOS PAKUOTĖS ILGIS, CM: 56.5
UNIT HEIGHT, CM: 5
SIUNTOS PAKUOTĖS PLOTIS, CM: 28.5
NAME: MB AMD A520 SAM4 MATX/A520M K V2 1.1 GIGABYTE
NUMBER OF STORAGE DRIVES SUPPORTED: 5
PLOTIS, MM: 233
ILGIS, MM: 198
AUKŠTIS, MM: 35
PACKAGE WIDTH, MM: 265
PACKAGE DEPTH, MM: 235
PACKAGE HEIGHT, MM: 52
PACKAGE WEIGHT, G: 675
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
MODEL: A520M K V2 (REV. 1.1)
MOTHERBOARD CHIPSET: AMD A520
HDMI PORTS QUANTITY: 1
HDMI VERSION: 2.1
HEADPHONE OUTPUTS: 3
CABLES INCLUDED: SATA
WARRANTY PERIOD, YEAR(S): 3
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE
COMPONENT FOR: PC
MOTHERBOARD FORM FACTOR: MICRO ATX
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET FAMILY: AMD
PROCESSOR MANUFACTURER: AMD
PROCESSOR SOCKET: SOCKET AM4
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES/AMD RYZEN 5000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM4
SUPPORTED MEMORY TYPES: DDR4-SDRAM
NUMBER OF MEMORY SLOTS: 2
MEMORY SLOTS TYPE: DIMM
MEMORY CHANNELS: DUAL-CHANNEL
ECC СOMPATIBILITY: ECC & NON-ECC
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4800/5100
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 5100
MAXIMUM INTERNAL MEMORY, GB: 64
UNBUFFERED MEMORY: TAIP
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
RAID SUPPORT: TAIP
RAID LEVELS: 0/1/10
HDCP: TAIP
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
FRONT PANEL AUDIO CONNECTOR: TAIP
FRONT PANEL CONNECTOR: TAIP
ATX POWER CONNECTOR (24-PIN): TAIP
CPU FAN CONNECTOR: TAIP
CHASSIS INTRUSION CONNECTOR: TAIP
EPS POWER CONNECTOR (8-PIN): TAIP
TPM CONNECTOR: TAIP
ETHERNET LAN (RJ-45) PORTS: 1
ETHERNET LAN: TAIP
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
WI-FI: NE
NUMBER OF M.2 (M) SLOTS: 1
BIOS TYPE: UEFI AMI
BIOS MEMORY SIZE, MBIT: 128
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: TAIP
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
COUNTRY OF ORIGIN: CHINA
BATTERY WEIGHT, G: 3
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
BATTERIES INCLUDED: TAIP
BUNDLED SOFTWARE: NORTON INTERNET SECURITY
12V POWER CONNECTOR: TAIP
USB 2.0 PORTS QUANTITY: 2
MICROPHONE IN: TAIP
PCI EXPRESS X16 SLOTS: 1
PS/2 PORTS QUANTITY: 1
USB CONNECTOR TYPE: USB TYPE-A
VGA (D-SUB) PORTS QUANTITY: 1
PCI EXPRESS X1 SLOTS: 1
