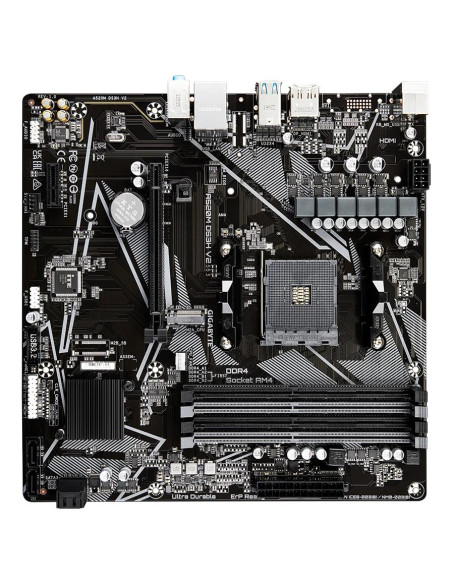

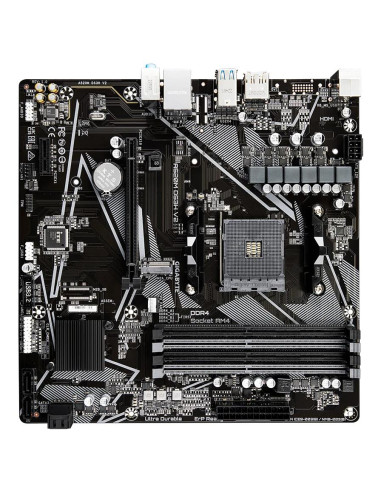

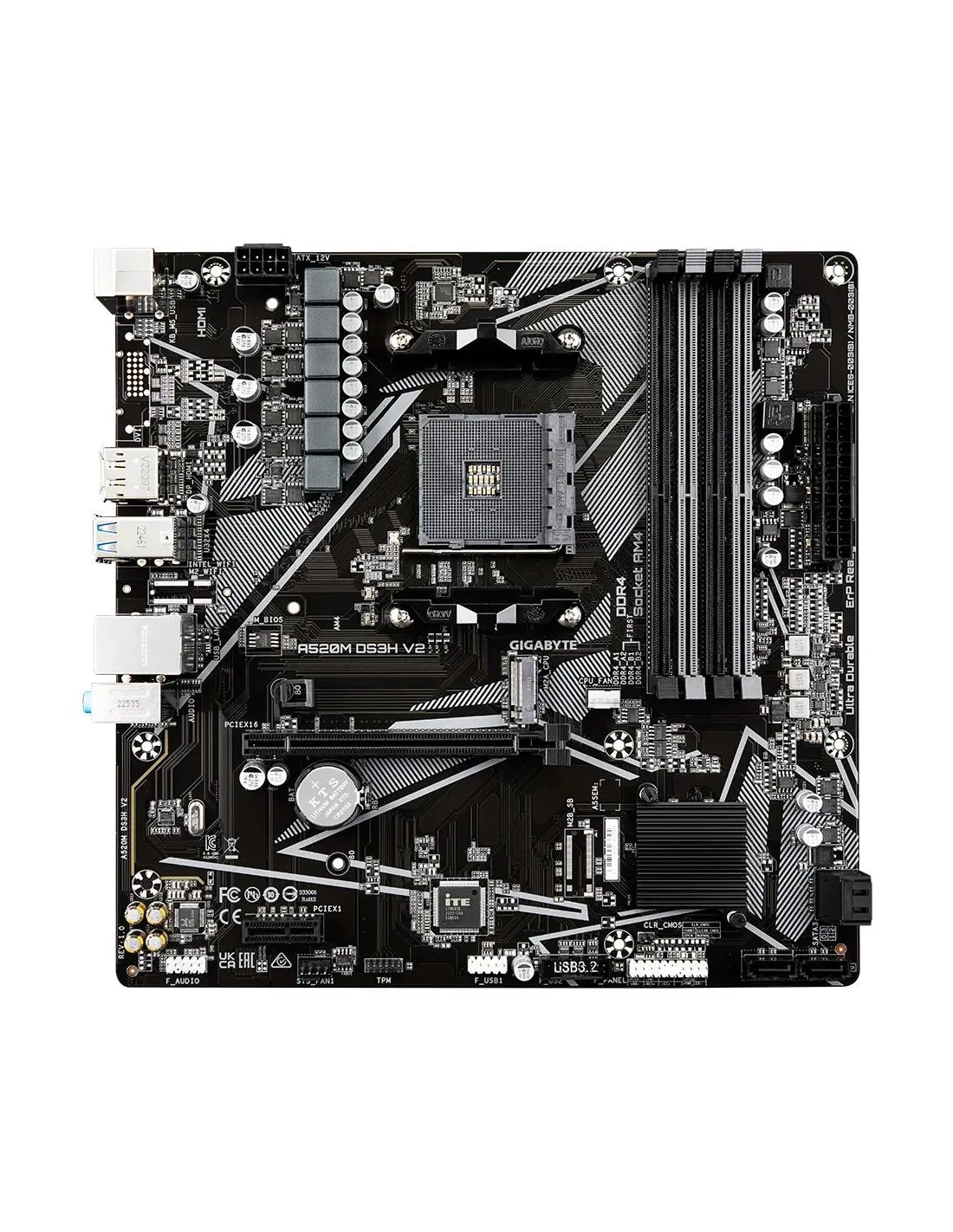

GIGABYTE A520M DS3H V2 pagrindinė plokštė – vaizdas iš viršaus

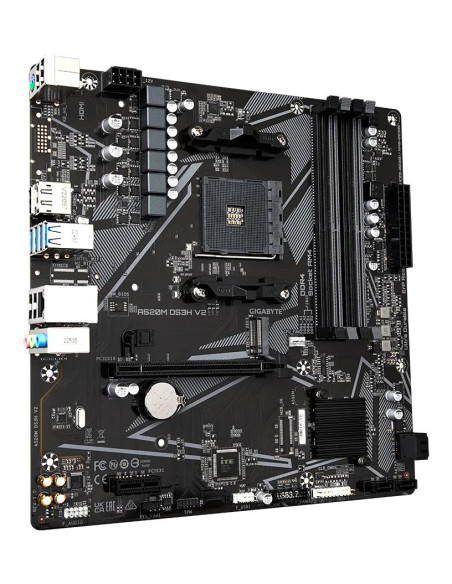

GIGABYTE A520M DS3H V2 pagrindinė plokštė – plokštės vaizdas kampu

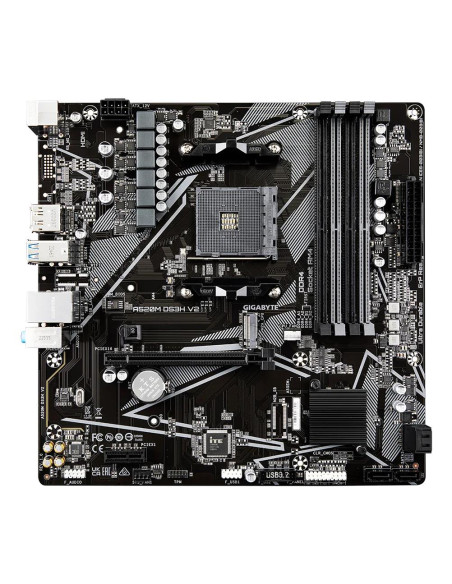

GIGABYTE A520M DS3H V2 pagrindinė plokštė – komponentų ir lizdų išdėstymas

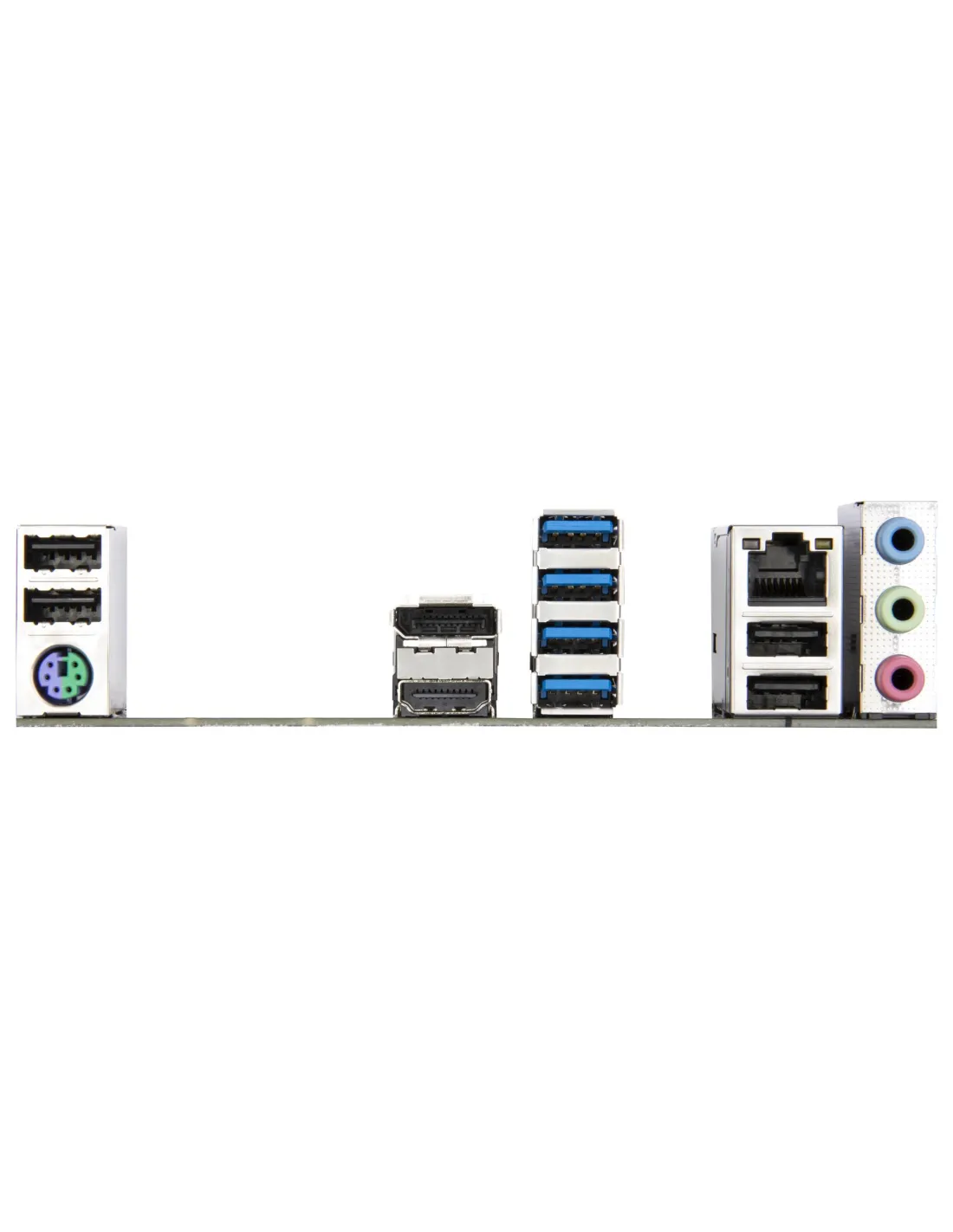

GIGABYTE A520M DS3H V2 pagrindinė plokštė – galinės įvesties ir išvesties jungtys

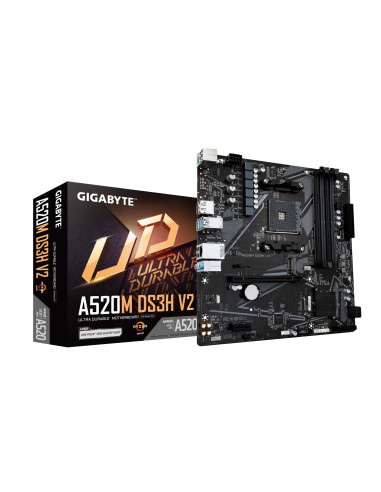

GIGABYTE A520M DS3H V2 pagrindinė plokštė – plokštė ir pakuotė

Mainboard, GIGABYTE, AMD A520, SAM4, Micro-ATX, Memory DDR4, Memory slots 4, A520MDS3HV2

Name: Mainboard, GIGABYTE, AMD A520, SAM4, Micro-ATX, Memory DDR4, Memory slots 4, A520MDS3HV2
Brand: GIGABYTE
SKU: A520MDS3HV2
Price: 60.09 EUR
Availability: InStock

Kodas A520MDS3HV2

Turime Lietuvoje

60,09 €

Pristatome 1 - 3 d.d.

micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM4 , Supported memory types DDR4-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 5120 x 2880 pixels , Discrete graphics support Yes , 2xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , 1xDVI-D ports quantity

Prekė detaliau
Atsiliepimai (0)

CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.055
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.265
UNIT CALCULATED WEIGHT, KG: 0.89
PRODUCT NET WEIGHT, KG: 0.7
UNIT CALCULATED VOLUME, CUBM: 0.004711
UNITS PER SHIPPING BOX: 10
SIUNTOS PAKUOTĖS SVORIS, KG: 8.9
UNIT WIDTH, CM: 26.5
SUMMARY: GIGABYTE A520M DS3H V2 MOTHERBOARD - SUPPORTS AMD RYZEN 5000 SERIES AM4 CPUS, UP TO 4733MHZ DDR4 (OC), PCIE 3.0 X16, GBE LAN, USB 3.2 GEN 1. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM4, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES, AMD
SIUNTOS PAKUOTĖS AUKŠTIS, CM: 29
UNIT DEPTH, CM: 27
SIUNTOS PAKUOTĖS ILGIS, CM: 57
UNIT HEIGHT, CM: 5.5
SIUNTOS PAKUOTĖS PLOTIS, CM: 28.5
NAME: MB AMD A520 SAM4 MATX/A520M DS3H V2 GIGABYTE
PRODUCT COLOUR: BLACK
NUMBER OF STORAGE DRIVES SUPPORTED: 5
PLOTIS, MM: 244
ILGIS, MM: 244
AUKŠTIS, MM: 35
PACKAGE WIDTH, MM: 265
PACKAGE DEPTH, MM: 265
PACKAGE HEIGHT, MM: 54
PACKAGE WEIGHT, G: 810
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
MODEL: A520M DS3H V2
HDMI PORTS QUANTITY: 1
HDMI VERSION: 2.1
DISPLAYPORTS QUANTITY: 1
DISPLAYPORT VERSION: 2.0
HEADPHONE OUTPUTS: 1
CABLES INCLUDED: SATA
WARRANTY PERIOD, YEAR(S): 3
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
COOLING TYPE: ACTIVE
MAXIMUM RESOLUTION, PIXELS: 5120 X 2880
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64
AUDIO CHIP: REALTEK ALC887
PC HEALTH MONITORING: CPU/LED/POWER SUPPLY/TEMPERATURE/VOLTAGE
COMPONENT FOR: PC
MOTHERBOARD FORM FACTOR: MICRO ATX
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET FAMILY: AMD
POWER SOURCE TYPE: ATX
PROCESSOR MANUFACTURER: AMD
PROCESSOR SOCKET: SOCKET AM4
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES/AMD RYZEN THREADRIPPER 3000 SERIES/AMD RYZEN THREADRIPPER PRO 3000 WX-SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM4
SUPPORTED MEMORY TYPES: DDR4-SDRAM
NUMBER OF MEMORY SLOTS: 4
MEMORY SLOTS TYPE: DIMM
MEMORY CHANNELS: DUAL-CHANNEL
ECC СOMPATIBILITY: ECC & NON-ECC
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2667/2933/3200/3333/3600/4000/4400/4733
MAXIMUM INTERNAL MEMORY, GB: 128
UNBUFFERED MEMORY: TAIP
MAXIMUM INTERNAL MEMORY SUPPORTED BY PROCESSOR, GB: 128
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
NUMBER OF HDDS SUPPORTED: 4
RAID SUPPORT: TAIP
RAID LEVELS: 0/1/10
HDCP: TAIP
USB 2.0 CONNECTORS: 1
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
FRONT PANEL AUDIO CONNECTOR: TAIP
FRONT PANEL CONNECTOR: TAIP
ATX POWER CONNECTOR (24-PIN): TAIP
CPU FAN CONNECTOR: TAIP
TPM CONNECTOR: TAIP
ETHERNET LAN (RJ-45) PORTS: 1
DIGITAL AUDIO OPTICAL OUT: 1
ETHERNET LAN: TAIP
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
WI-FI: NE
NUMBER OF M.2 (M) SLOTS: 1
BIOS TYPE: UEFI AMI
BIOS MEMORY SIZE, MBIT: 128
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: TAIP
CLEAR CMOS BUTTON: TAIP
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
COUNTRY OF ORIGIN: CHINA
BATTERY WEIGHT, G: 3
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
BATTERIES INCLUDED: TAIP
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) REALTEK 8118 GAMING LAN BANDWIDTH CONTROL UTILITY
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
12V POWER CONNECTOR: TAIP
USB 2.0 PORTS QUANTITY: 2
MICROPHONE IN: TAIP
DISCRETE GRAPHICS SUPPORT: TAIP
NUMBER OF DISPLAYS SUPPORTED: 3
TOTAL NUMBER OF SATA CONNECTORS: 4
SUPPORTED MEMORY MODULE CAPACITIES: 16GB/1GB/2GB/32GB/4GB/8GB
SERIAL PORT HEADERS: 1
MAXIMUM NUMBER OF SMP PROCESSORS: 1
PS/2 PORTS QUANTITY: 1
USB CONNECTOR TYPE: USB TYPE-A
PCI EXPRESS X1 (GEN 3.X) SLOTS: 2
DVI-D PORTS QUANTITY: 1
NUMBER OF EATX POWER CONNECTORS: 1
POWER FAN CONNECTOR: TAIP
DRIVERS INCLUDED: TAIP
