• Nauja

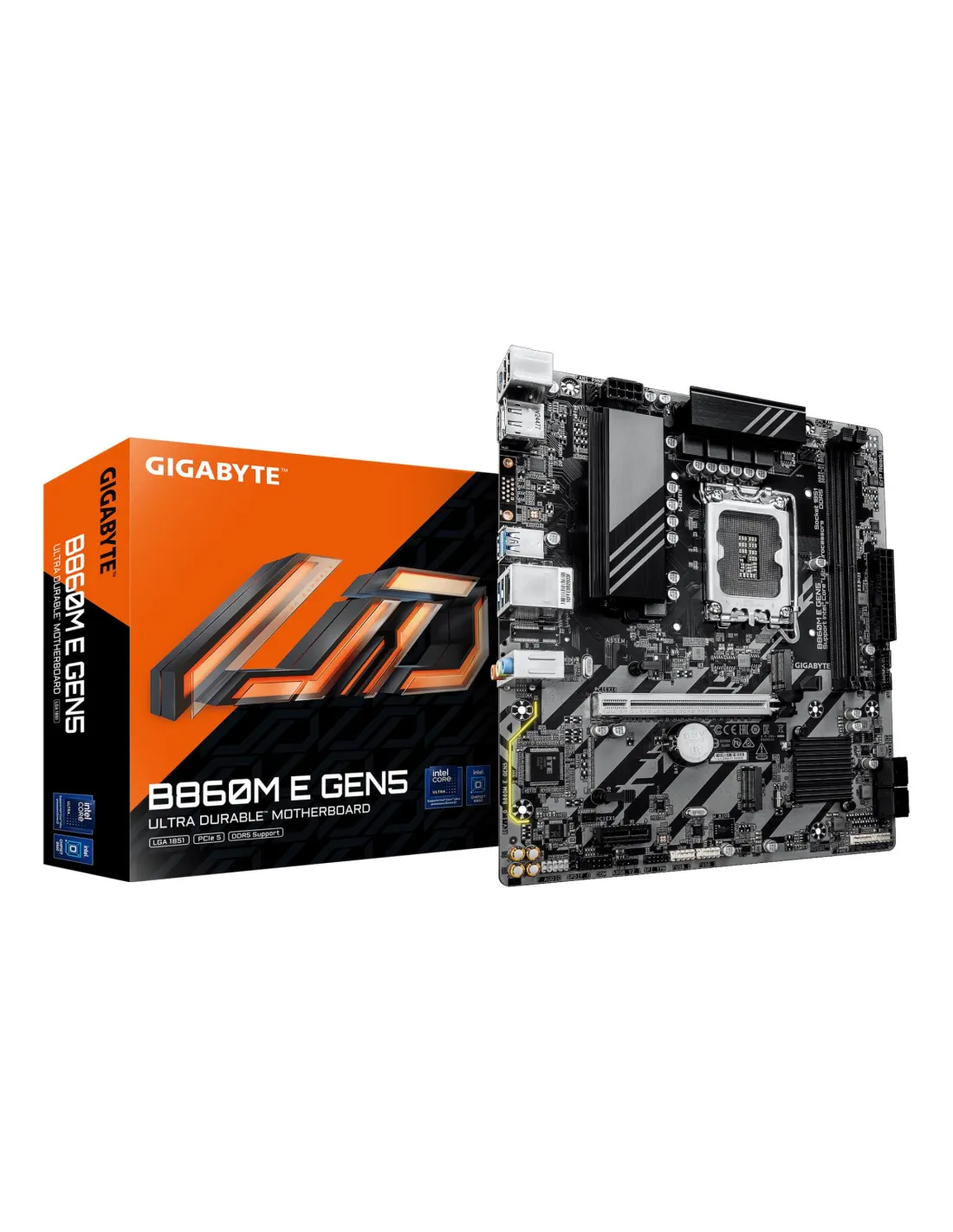

GIGABYTE B860M E GEN5 pagrindinė plokštė – plokštė ir pakuotė

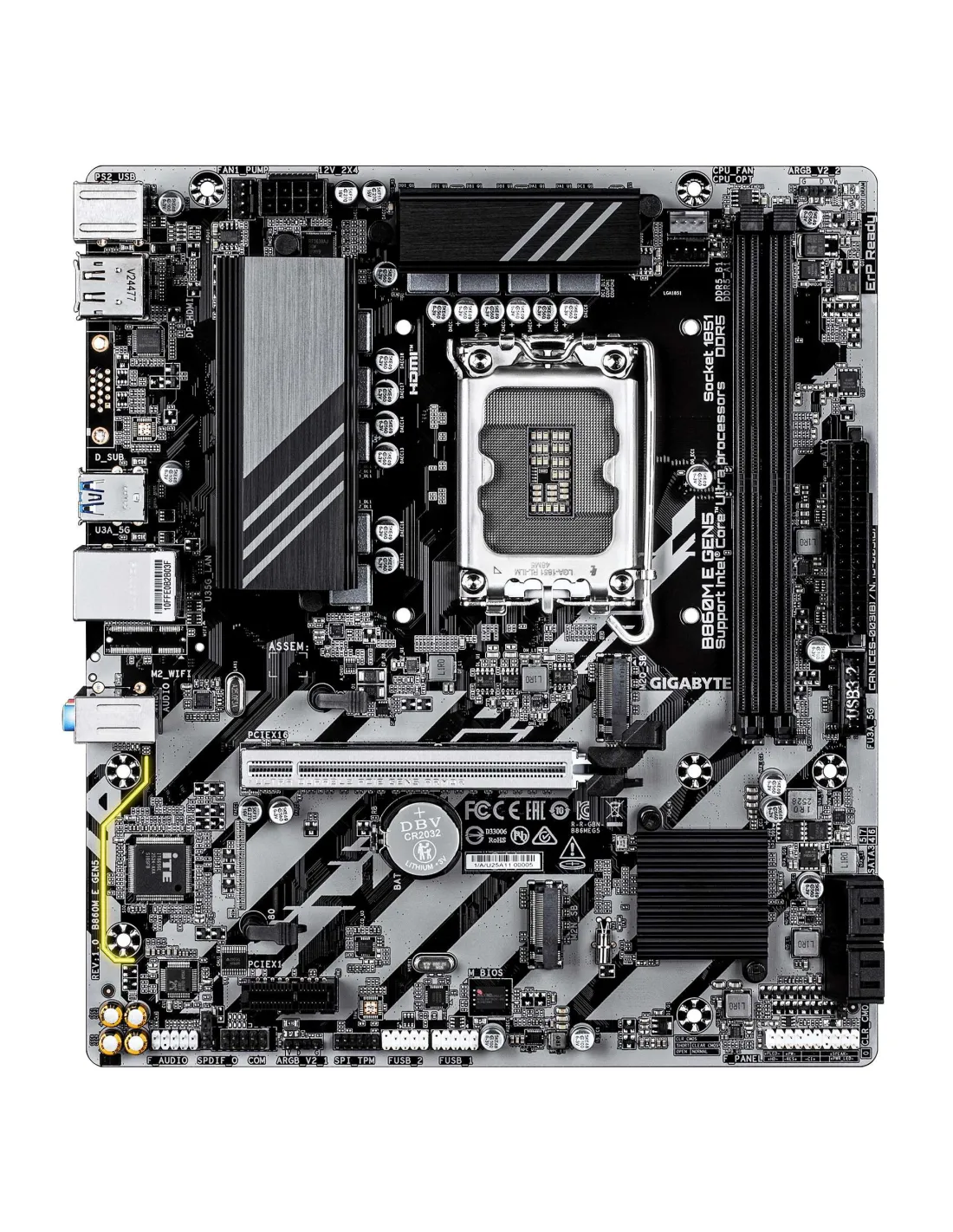

GIGABYTE B860M E GEN5 pagrindinė plokštė – vaizdas iš viršaus

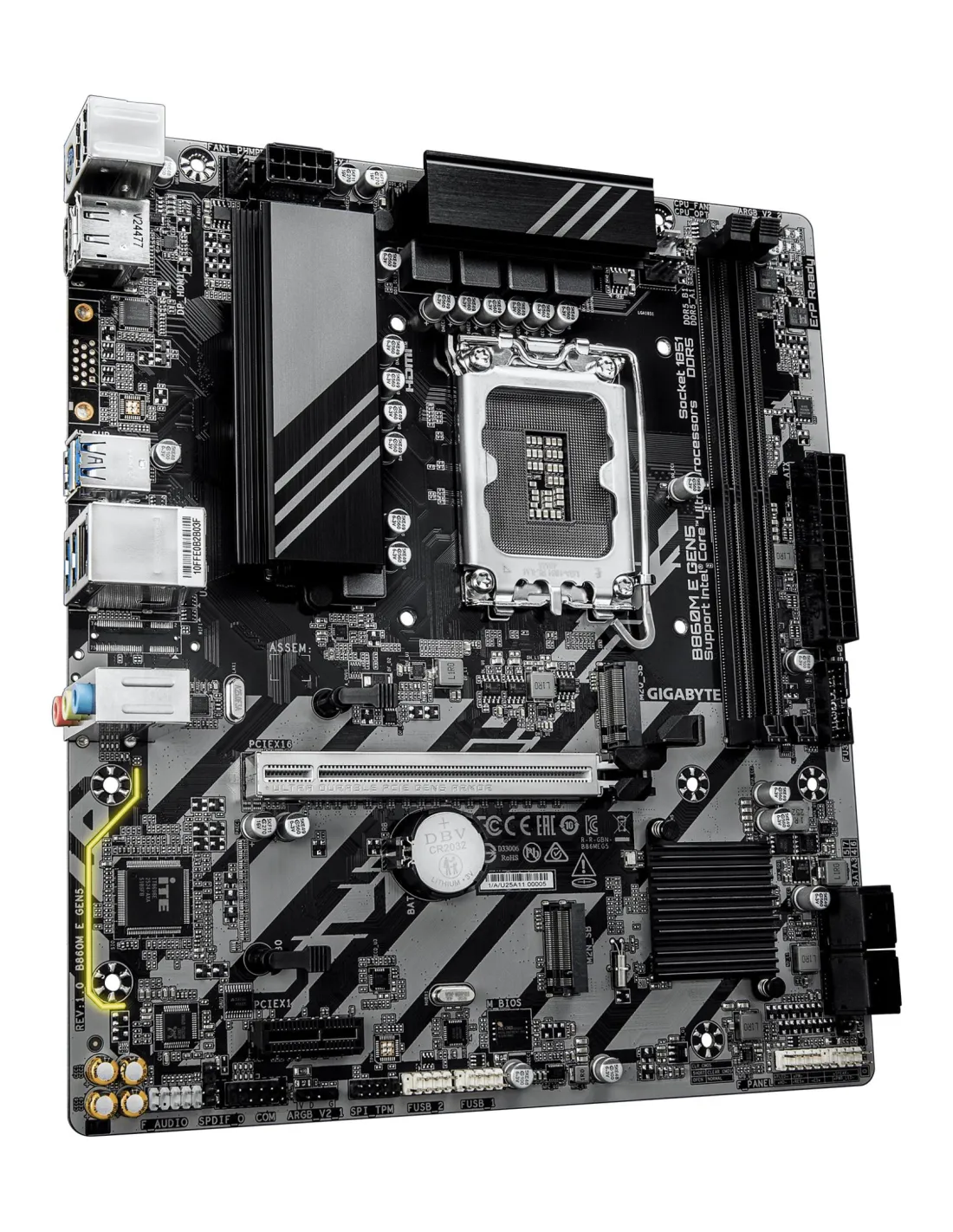

GIGABYTE B860M E GEN5 pagrindinė plokštė – plokštės vaizdas kampu

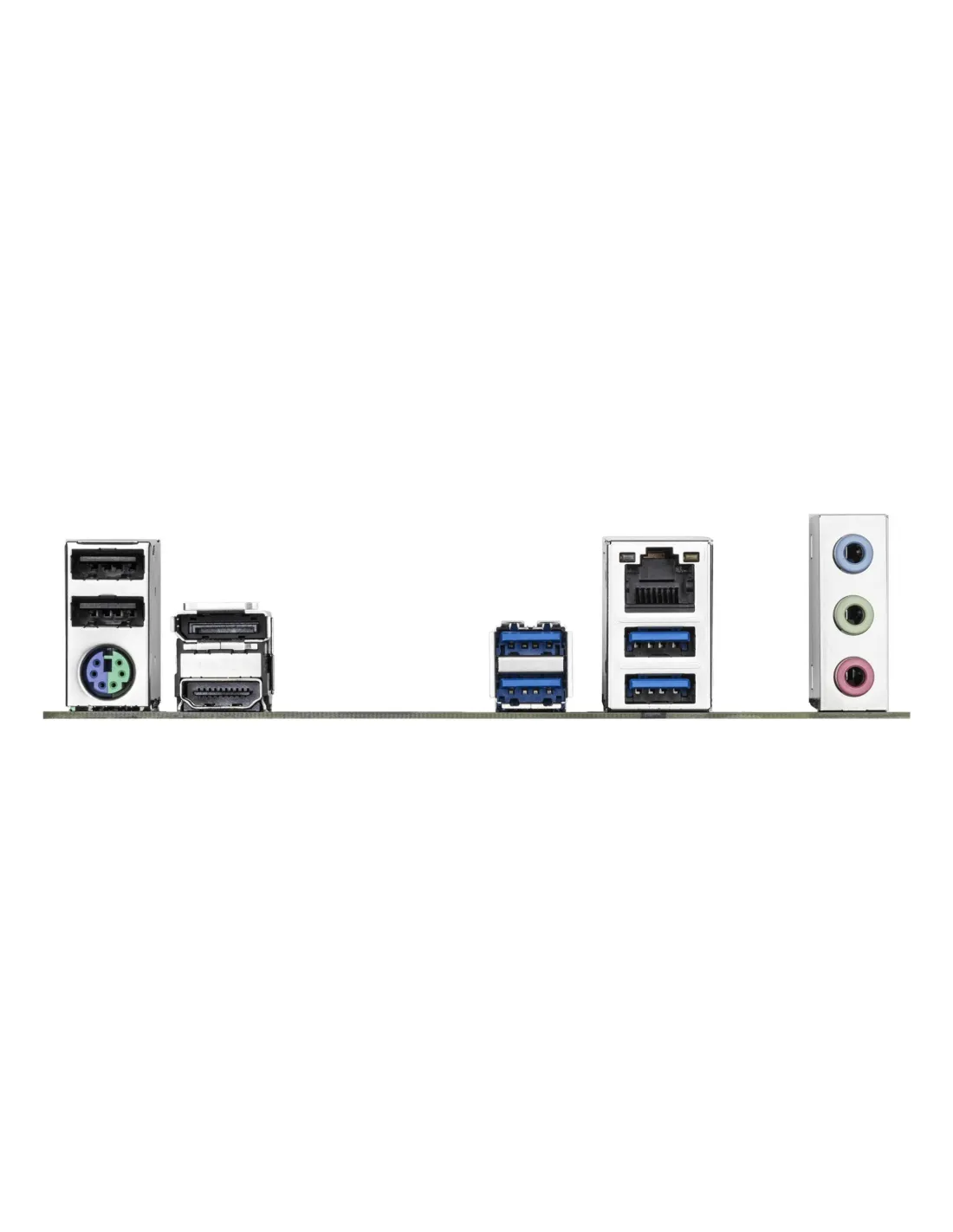

GIGABYTE B860M E GEN5 pagrindinė plokštė – galinės įvesties ir išvesties jungtys
GIGABYTE B860M E GEN5 pagrindinė plokštė – plokštė ir pakuotė
GIGABYTE B860M E GEN5 pagrindinė plokštė – vaizdas iš viršaus
GIGABYTE B860M E GEN5 pagrindinė plokštė – plokštės vaizdas kampu
GIGABYTE B860M E GEN5 pagrindinė plokštė – galinės įvesties ir išvesties jungtys

Mainboard, GIGABYTE, Intel B860, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 2xSlots, 2xNumber of M.2 (M) slots, B860MEGEN

B860M E GEN5
Turime Lietuvoje
100,21 €
Pristatome 1 - 3 d.d.

Intel B860 , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1851 (Socket V1) , Supported memory types DDR5-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,SATA III , 4096 x 2160 pixels , 2xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Weight 910 g


CATEGORY CODE
MBI
CNCODE
84733020
UNIT BOX HEIGHT
0.055
UNIT BOX LENGTH
0.265
UNIT BOX WIDTH
0.27
UNIT CALCULATED WEIGHT, KG
0.97
UNIT CALCULATED VOLUME, CUBM
0.004794
UNITS PER SHIPPING BOX
10
SIUNTOS PAKUOTĖS SVORIS, KG
10
UNIT WIDTH, CM
27
SUMMARY
GIGABYTE B860M E GEN5 MOTHERBOARD - INTEL CORE ULTRA SERIES CPUS, 4+1+2 PHASES VRM, UP TO 8800MHZ DDR5 (O.C.), 2XPCIE 4.0 M.2, 1GBE LAN, USB 3.2 GEN 1. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1851 (SOCKET V1), COMPATIBLE PROCESSOR SERIES: INT
SIUNTOS PAKUOTĖS AUKŠTIS, CM
28.5
UNIT DEPTH, CM
26.5
SIUNTOS PAKUOTĖS ILGIS, CM
58
UNIT HEIGHT, CM
5.5
SIUNTOS PAKUOTĖS PLOTIS, CM
29
NAME
MB B860 S1851 MATX/B860M E GEN5 GIGABYTE
PRODUCT COLOUR
DARK BROWN
NUMBER OF STORAGE DRIVES SUPPORTED
6
PLOTIS, MM
244
ILGIS, MM
215
AUKŠTIS, MM
35
WEIGHT, G
910
PACKAGE WIDTH, MM
265
PACKAGE DEPTH, MM
265
PACKAGE HEIGHT, MM
54
PACKAGE WEIGHT, G
988
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY
4
MOTHERBOARD CHIPSET
INTEL B860
HDMI PORTS QUANTITY
1
HDMI VERSION
2.1
DISPLAYPORTS QUANTITY
1
DISPLAYPORT VERSION
2.1
HEADPHONE OUTPUTS
1
WARRANTY PERIOD, YEAR(S)
3
PRODUCTS PER SHIPPING (INNER) CASE, PC(S)
1
COOLING TYPE
PASSIVE
MAXIMUM RESOLUTION, PIXELS
4096 X 2160
DIRECTX VERSION
12.0
PARALLEL PROCESSING TECHNOLOGY SUPPORT
NOT SUPPORTED
WINDOWS OPERATING SYSTEMS SUPPORTED
WINDOWS 10 X64/WINDOWS 11 X64
AUDIO CHIP
REALTEK ALC897
PC HEALTH MONITORING
FAN/TEMPERATURE/VOLTAGE/WATER COOLING
COMPONENT FOR
PC
MOTHERBOARD FORM FACTOR
MICRO ATX
AUDIO OUTPUT CHANNELS, CHANNELS
7.1
MOTHERBOARD CHIPSET FAMILY
INTEL
POWER SOURCE TYPE
ATX
PROCESSOR MANUFACTURER
INTEL
PROCESSOR SOCKET
LGA 1851 (SOCKET V1)
COMPATIBLE PROCESSOR SERIES
INTEL CORE ULTRA (SERIES 2)
SUPPORTED PROCESSOR SOCKETS
LGA 1851
SUPPORTED MEMORY TYPES
DDR5-SDRAM
NUMBER OF MEMORY SLOTS
2
MEMORY SLOTS TYPE
DIMM
MEMORY CHANNELS
DUAL-CHANNEL
ECC СOMPATIBILITY
ECC & NON-ECC
SUPPORTED MEMORY CLOCK SPEEDS, MHZ
5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ
8800
MAXIMUM INTERNAL MEMORY, GB
128
UNBUFFERED MEMORY
TAIP
SUPPORTED STORAGE DRIVE TYPES
HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES
M.2,PCI EXPRESS 4.0,SATA III
NUMBER OF HDDS SUPPORTED
4
RAID SUPPORT
TAIP
RAID LEVELS
0/1/10/5
HDCP
TAIP
MAXIMUM INTERNAL MEMORY PER SLOT, GB
64
USB 2.0 CONNECTORS
2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS
1
HDCP VERSION
2.3
NUMBER OF SATA III CONNECTORS
4
FRONT PANEL AUDIO CONNECTOR
TAIP
FRONT PANEL CONNECTOR
TAIP
ATX POWER CONNECTOR (24-PIN)
TAIP
CPU FAN CONNECTOR
TAIP
NUMBER OF CPU FAN CONNECTORS
2
NUMBER OF CHASSIS FAN CONNECTORS
1
EPS POWER CONNECTOR (8-PIN)
TAIP
NUMBER OF EPS POWER CONNECTORS (8-PIN)
1
NUMBER OF WATER PUMP CONNECTORS
2
TPM CONNECTOR
TAIP
RGB LED PIN HEADER
TAIP
NUMBER OF RGB LED PIN HEADERS
2
ETHERNET LAN (RJ-45) PORTS
1
LINE-IN
TAIP
ETHERNET LAN
TAIP
ETHERNET INTERFACE TYPE
GIGABIT ETHERNET
LAN CONTROLLER
REALTEK RTL8111H
WI-FI
NE
PCI EXPRESS X16 (GEN 5.X) SLOTS
1
NUMBER OF M.2 (M) SLOTS
2
1ST M.2 LARGEST KEY SIZE
2280
1ST M.2 HIGHEST PCI EXPRESS GENERATION
4.0
2ND M.2 LARGEST KEY SIZE
2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION
4.0
BIOS TYPE
UEFI AMI
BIOS MEMORY SIZE, MBIT
256
ACPI VERSION
5.0
CLEAR CMOS JUMPER
TAIP
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION
2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION
2.7
COUNTRY OF ORIGIN
CHINA
BATTERY WEIGHT, G
3
LITHIUM WEIGHT PER BATTERY, G
0.07
NUMBER OF BATTERY CELLS
1
BATTERY CAPACITY, MAH
220
BATTERY TECHNOLOGY
LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE
CR2032
BATTERIES INCLUDED
TAIP
SCREWS INCLUDED
TAIP
BUNDLED SOFTWARE
NORTON INTERNET SECURITY (OEM VERSION)
USB 2.0 PORTS QUANTITY
2
MICROPHONE IN
TAIP
SERIAL PORT HEADERS
1
S/PDIF OUT CONNECTOR
TAIP
PS/2 PORTS QUANTITY
1
PCI EXPRESS X1 (GEN 3.X) SLOTS
1
6 Prekės
4719331879853
Nėra atsiliepimų

Jums taip pat gali patikti

4 kitos prekės toje pačioje kategorijoje:

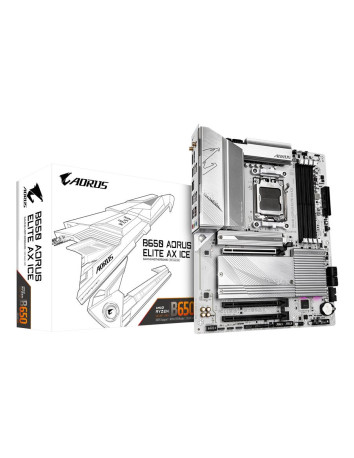

GIGABYTE B650 AORUS ELITE AX ICE pagrindinė plokštė – plokštė ir pakuotė
