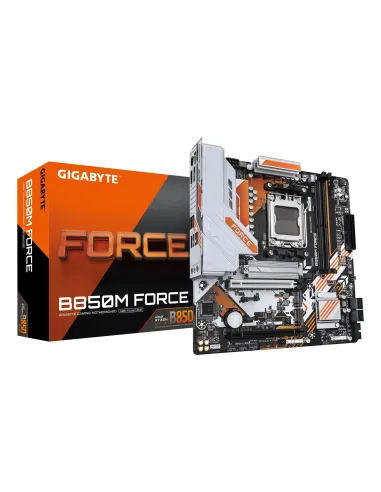

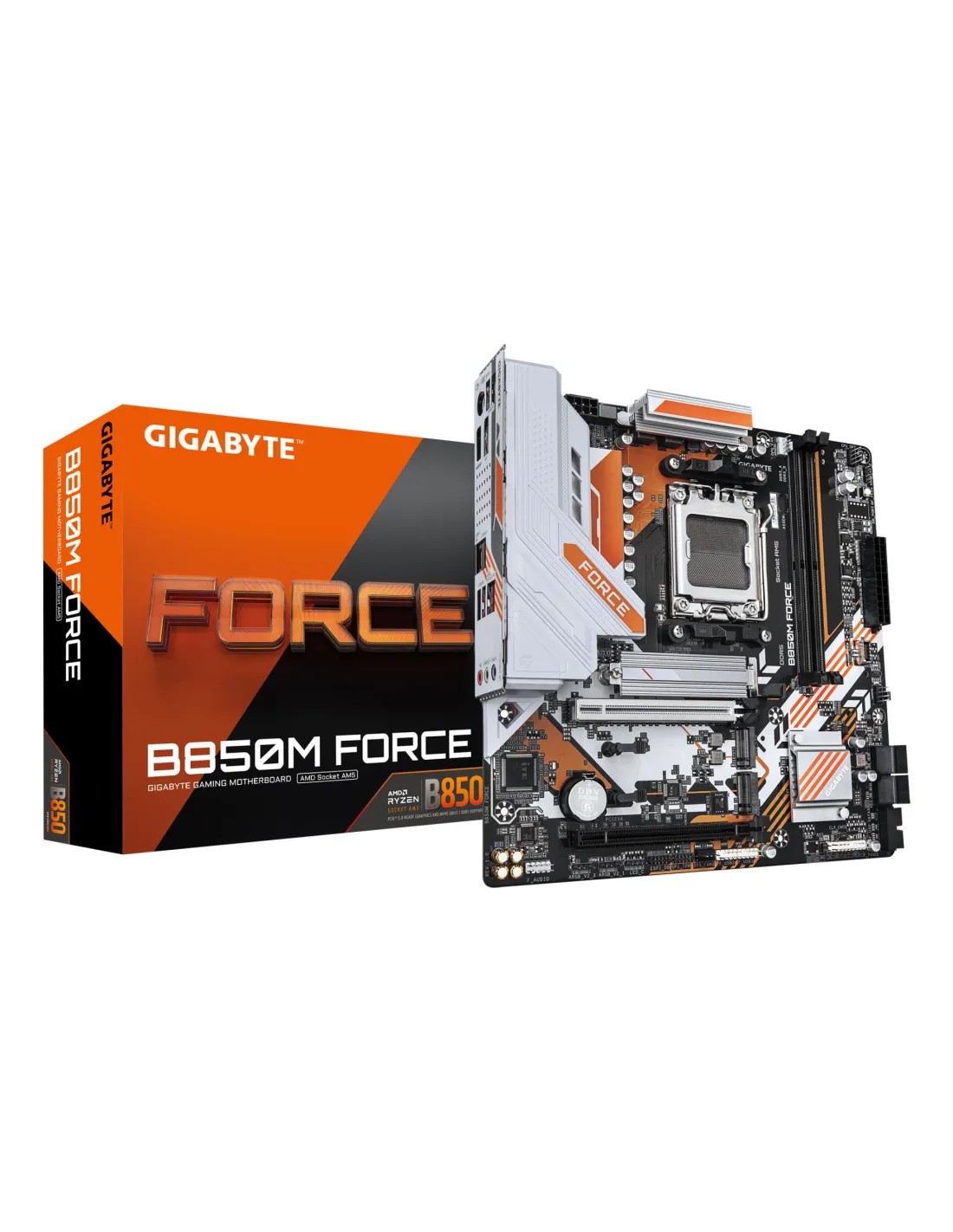

GIGABYTE B850M FORCE pagrindinė plokštė – plokštė ir pakuotė

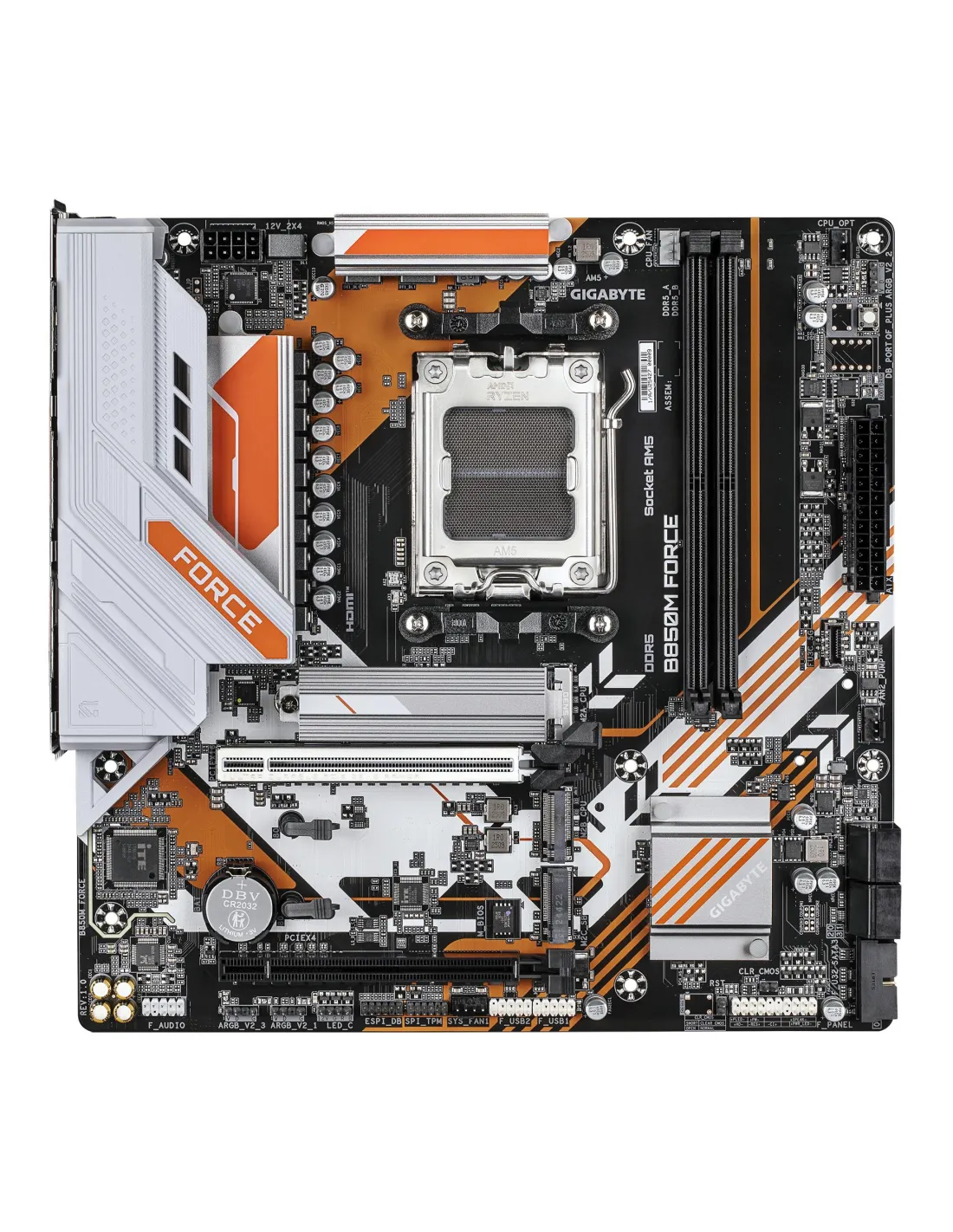

GIGABYTE B850M FORCE pagrindinė plokštė – vaizdas iš viršaus

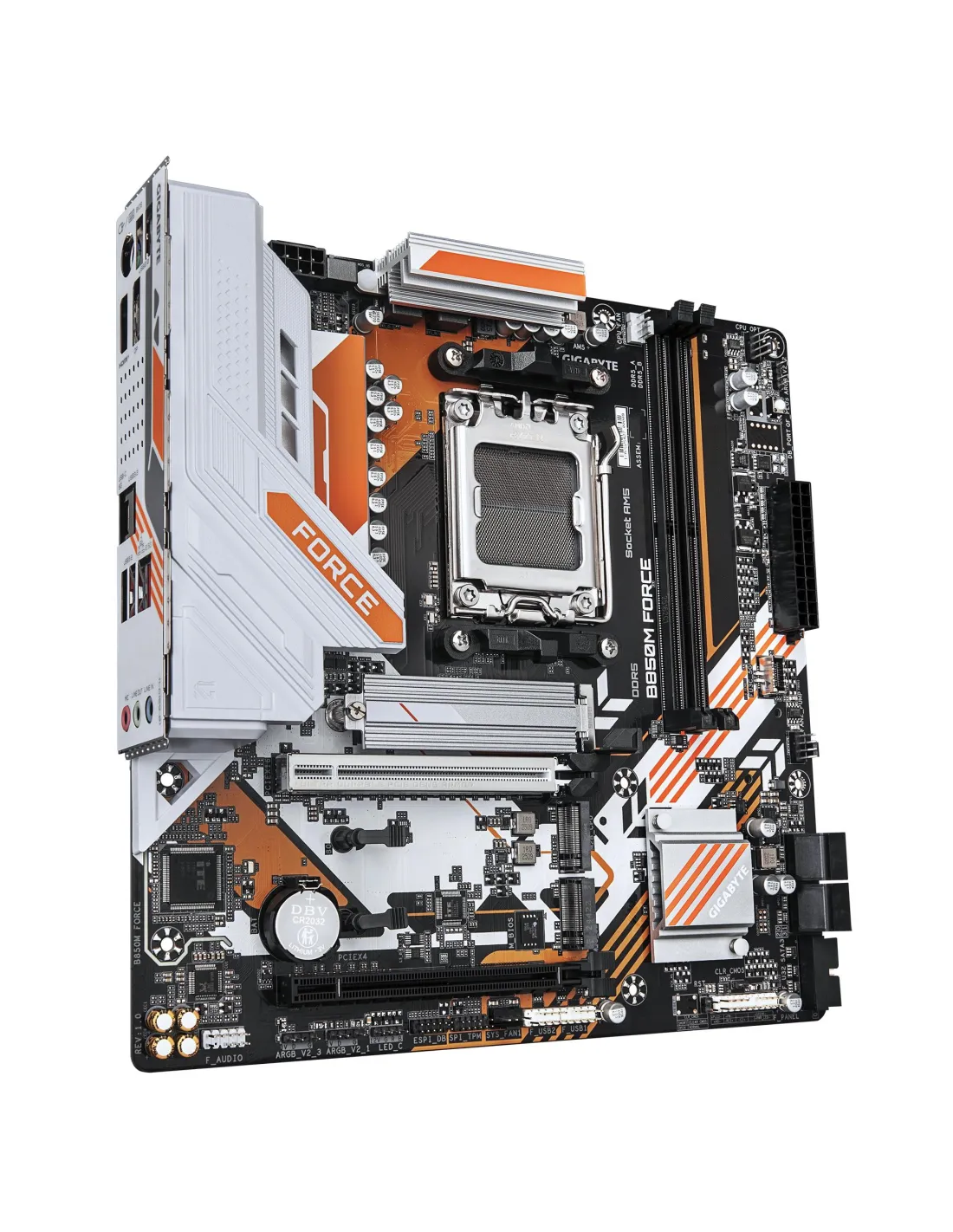

GIGABYTE B850M FORCE pagrindinė plokštė – plokštės vaizdas kampu

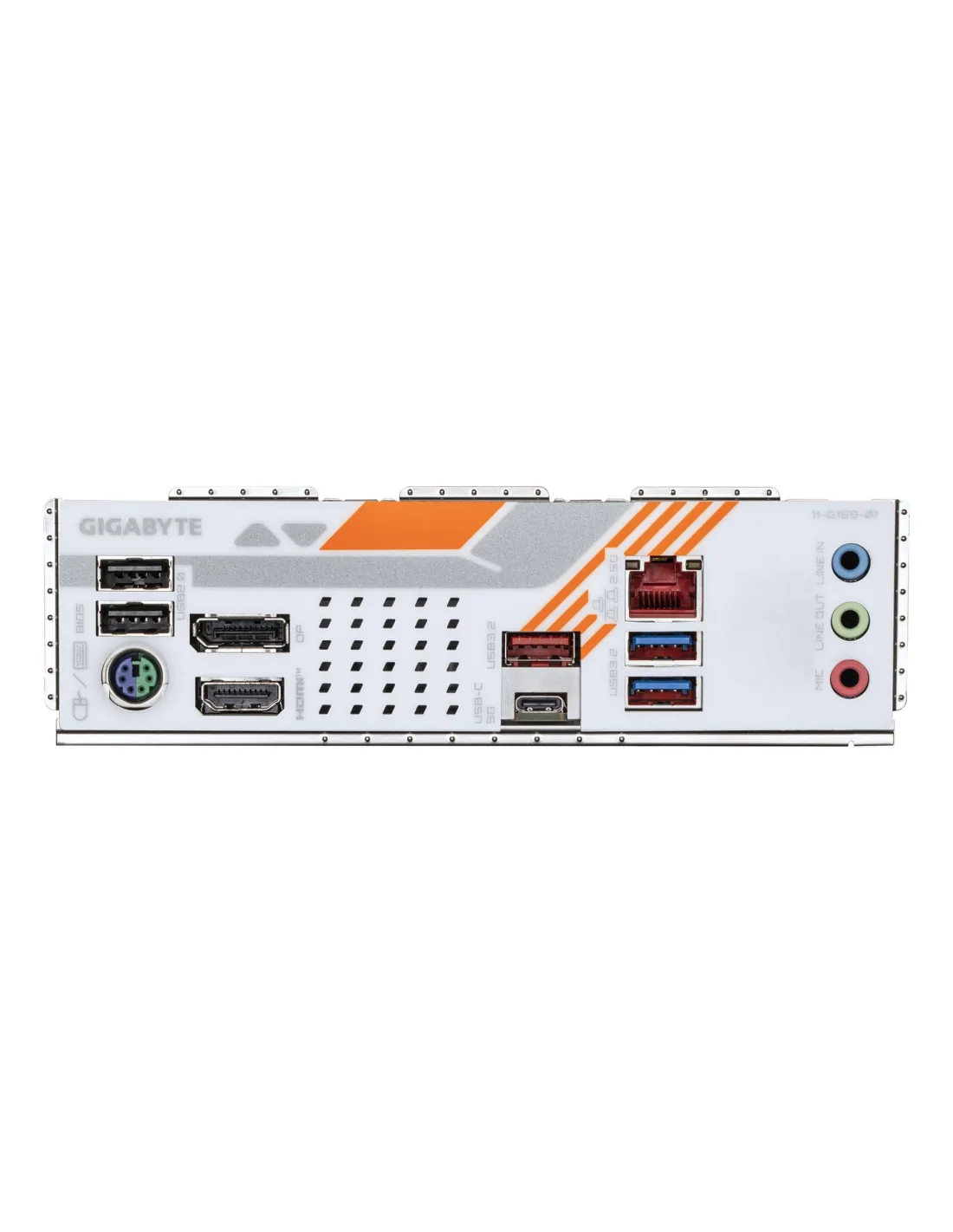

GIGABYTE B850M FORCE pagrindinė plokštė – galinės įvesties ir išvesties jungtys
GIGABYTE B850M FORCE pagrindinė plokštė – plokštė ir pakuotė
GIGABYTE B850M FORCE pagrindinė plokštė – vaizdas iš viršaus
GIGABYTE B850M FORCE pagrindinė plokštė – plokštės vaizdas kampu
GIGABYTE B850M FORCE pagrindinė plokštė – galinės įvesties ir išvesties jungtys

Mainboard, GIGABYTE, AMD B850, Socket AM5, micro ATX, RAM DDR5-SDRAM, 2xSlots, 3xNumber of M.2 (M) slots, B850MFORCE1.1

B850M FORCE 1.1
Turime Lietuvoje
114,31 €
Pristatome 1 - 3 d.d.

AMD B850 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Supported memory types DDR5-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,PCI Express 5.0,SATA III , 4096 x 2160 pixels , 2xUSB 2.0 ports quantity , 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Weight 1.18 kg


CATEGORY CODE
MBA
CNCODE
84733020
UNIT BOX HEIGHT
0.27
UNIT BOX LENGTH
0.27
UNIT BOX WIDTH
0.07
UNIT CALCULATED WEIGHT, KG
1.35
UNIT CALCULATED VOLUME, CUBM
0.007178
UNITS PER SHIPPING BOX
8
SIUNTOS PAKUOTĖS SVORIS, KG
10.8000001907349
UNIT WIDTH, CM
7
SUMMARY
GIGABYTE B850M FORCE MOTHERBOARD - AMD RYZEN 9000 SERIES CPUS, 8+2+2 PHASES DIGITAL VRM, UP TO 9600MHZ DDR5 (OC), 1XPCIE 5.0 + 2XPCIE 4.0 M.2, 2.5 GBE LAN, USB 3.2 GEN 2. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERI
SIUNTOS PAKUOTĖS AUKŠTIS, CM
32.5
UNIT DEPTH, CM
27
SIUNTOS PAKUOTĖS ILGIS, CM
57
UNIT HEIGHT, CM
27
SIUNTOS PAKUOTĖS PLOTIS, CM
31
NAME
MB AMD B850 SAM5 MATX/B850M FORCE 1.1 GIGABYTE
PRODUCT COLOUR
DARK BROWN
NUMBER OF STORAGE DRIVES SUPPORTED
7
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY
1
PLOTIS, MM
244
ILGIS, MM
244
AUKŠTIS, MM
35
WEIGHT, G
1180
PACKAGE WIDTH, MM
270
PACKAGE DEPTH, MM
268
PACKAGE HEIGHT, MM
68
PACKAGE WEIGHT, G
1400
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY
2
MOTHERBOARD CHIPSET
AMD B850
HDMI PORTS QUANTITY
1
HDMI VERSION
2.1
DISPLAYPORTS QUANTITY
1
DISPLAYPORT VERSION
1.4
HEADPHONE OUTPUTS
1
WARRANTY PERIOD, YEAR(S)
3
PRODUCTS PER SHIPPING (INNER) CASE, PC(S)
1
COOLING TYPE
PASSIVE
MAXIMUM RESOLUTION, PIXELS
4096 X 2160
DIRECTX VERSION
12.0
PARALLEL PROCESSING TECHNOLOGY SUPPORT
NOT SUPPORTED
WINDOWS OPERATING SYSTEMS SUPPORTED
WINDOWS 10 X64/WINDOWS 11 X64
AUDIO CHIP
REALTEK ALC897
PC HEALTH MONITORING
FAN/TEMPERATURE/VOLTAGE/WATER COOLING
COMPONENT FOR
PC
MOTHERBOARD FORM FACTOR
MICRO ATX
AUDIO OUTPUT CHANNELS, CHANNELS
7.1
MOTHERBOARD CHIPSET FAMILY
AMD
POWER SOURCE TYPE
ATX
PROCESSOR MANUFACTURER
AMD
PROCESSOR SOCKET
SOCKET AM5
COMPATIBLE PROCESSOR SERIES
AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
SUPPORTED PROCESSOR SOCKETS
SOCKET AM5
SUPPORTED MEMORY TYPES
DDR5-SDRAM
NUMBER OF MEMORY SLOTS
2
MEMORY SLOTS TYPE
DIMM
MEMORY CHANNELS
DUAL-CHANNEL
ECC СOMPATIBILITY
NON-ECC
SUPPORTED MEMORY CLOCK SPEEDS, MHZ
4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9200/9600
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ
9600
MAXIMUM INTERNAL MEMORY, GB
128
UNBUFFERED MEMORY
TAIP
SUPPORTED STORAGE DRIVE TYPES
HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES
M.2,PCI EXPRESS 4.0,PCI EXPRESS 5.0,SATA III
NUMBER OF HDDS SUPPORTED
4
RAID SUPPORT
TAIP
RAID LEVELS
0/1/10/5
HDCP
TAIP
MAXIMUM INTERNAL MEMORY PER SLOT, GB
64
USB 2.0 CONNECTORS
2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS
2
NUMBER OF SATA III CONNECTORS
4
FRONT PANEL AUDIO CONNECTOR
TAIP
FRONT PANEL CONNECTOR
TAIP
ATX POWER CONNECTOR (24-PIN)
TAIP
CPU FAN CONNECTOR
TAIP
NUMBER OF CPU FAN CONNECTORS
2
NUMBER OF CHASSIS FAN CONNECTORS
2
EPS POWER CONNECTOR (8-PIN)
TAIP
NUMBER OF EPS POWER CONNECTORS (8-PIN)
1
NUMBER OF WATER PUMP CONNECTORS
2
TPM CONNECTOR
TAIP
RGB LED PIN HEADER
TAIP
NUMBER OF RGB LED PIN HEADERS
4
ETHERNET LAN (RJ-45) PORTS
1
LINE-IN
TAIP
ETHERNET LAN
TAIP
ETHERNET INTERFACE TYPE
2.5 GIGABIT ETHERNET
LAN CONTROLLER
REALTEK RTL8125
WI-FI
NE
PCI EXPRESS X16 (GEN 4.X) SLOTS
1
PCI EXPRESS X16 (GEN 5.X) SLOTS
1
NUMBER OF M.2 (M) SLOTS
3
1ST M.2 LARGEST KEY SIZE
2280
1ST M.2 HIGHEST PCI EXPRESS GENERATION
5.0
2ND M.2 LARGEST KEY SIZE
2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION
4.0
3RD M.2 LARGEST KEY SIZE
2280
3RD M.2 HIGHEST PCI EXPRESS GENERATION
4.0
BIOS TYPE
UEFI AMI
BIOS MEMORY SIZE, MBIT
256
ACPI VERSION
5.0
CLEAR CMOS JUMPER
TAIP
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION
2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION
2.7
COUNTRY OF ORIGIN
CHINA
BATTERY WEIGHT, G
3
LITHIUM WEIGHT PER BATTERY, G
0.07
NUMBER OF BATTERY CELLS
1
BATTERY TECHNOLOGY
LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE
CR2032
BATTERIES INCLUDED
TAIP
SCREWS INCLUDED
TAIP
BUNDLED SOFTWARE
NORTON INTERNET SECURITY (OEM VERSION)
12V POWER CONNECTOR
TAIP
USB 2.0 PORTS QUANTITY
2
MICROPHONE IN
TAIP
PS/2 PORTS QUANTITY
1
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-C PORTS QUANTITY
1
