Nauja

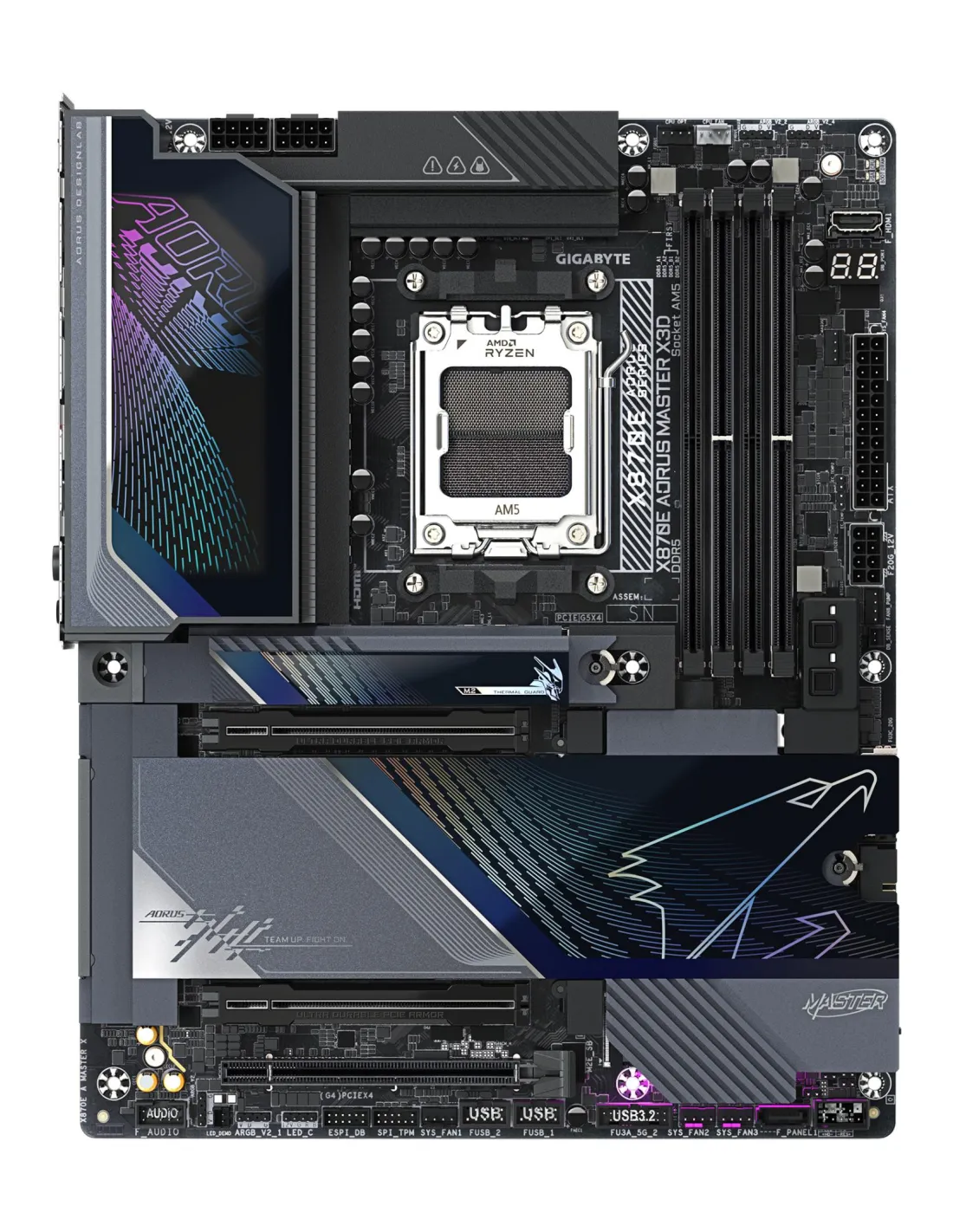

GIGABYTE X870E AORUS MASTER X pagrindinė plokštė – vaizdas iš viršaus

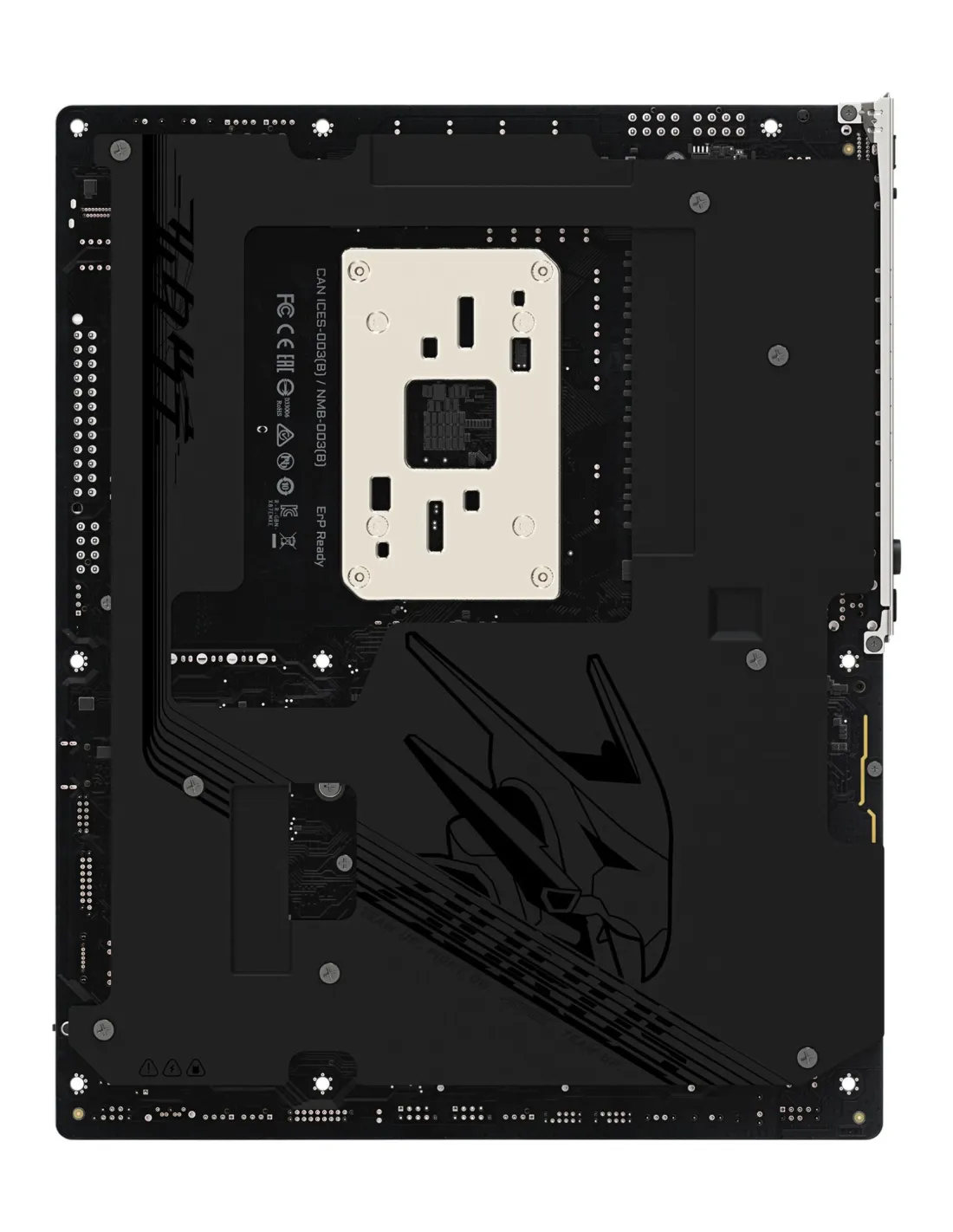

GIGABYTE X870E AORUS MASTER X pagrindinė plokštė – plokštės galinė pusė

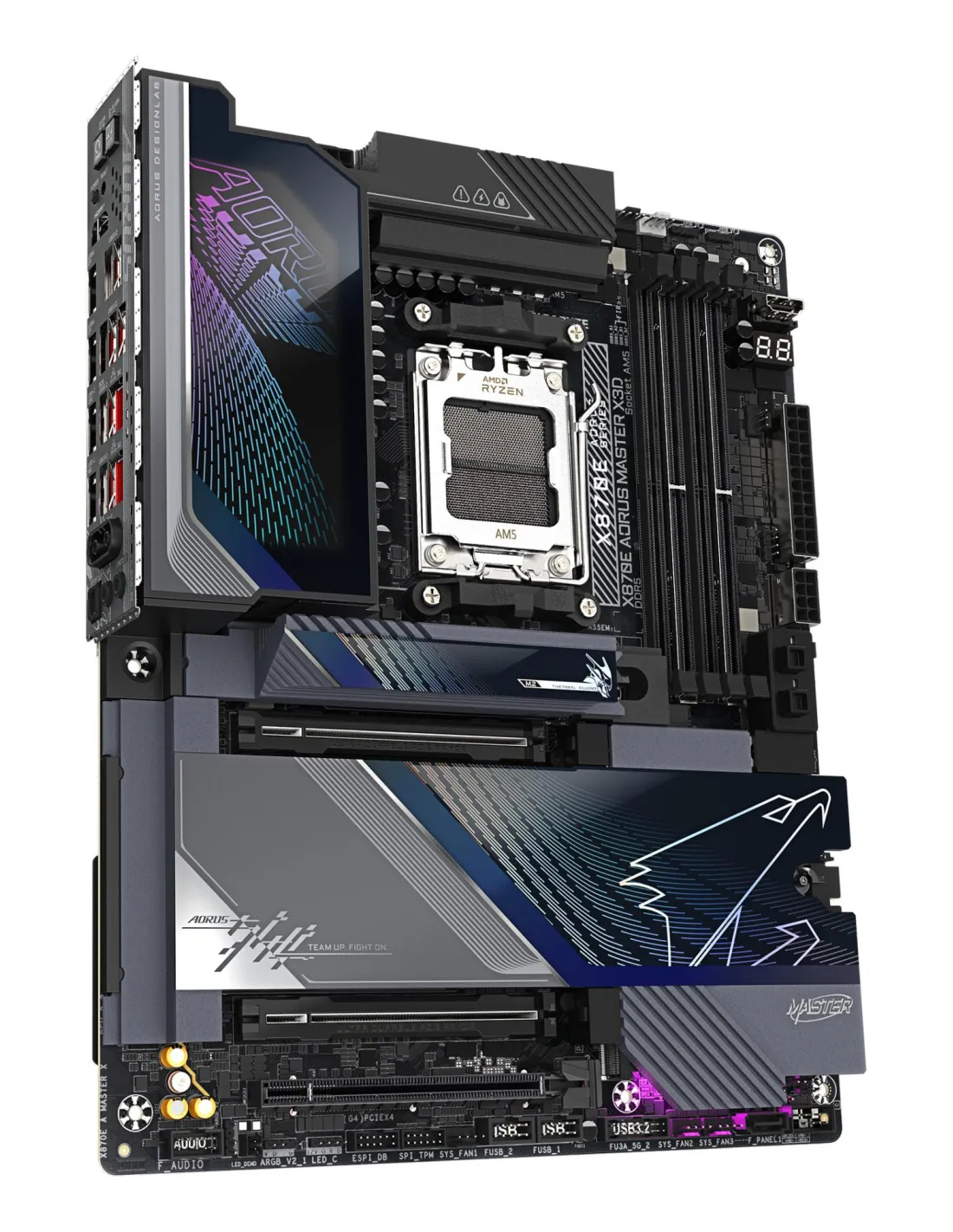

GIGABYTE X870E AORUS MASTER X pagrindinė plokštė – plokštės vaizdas iš kairės

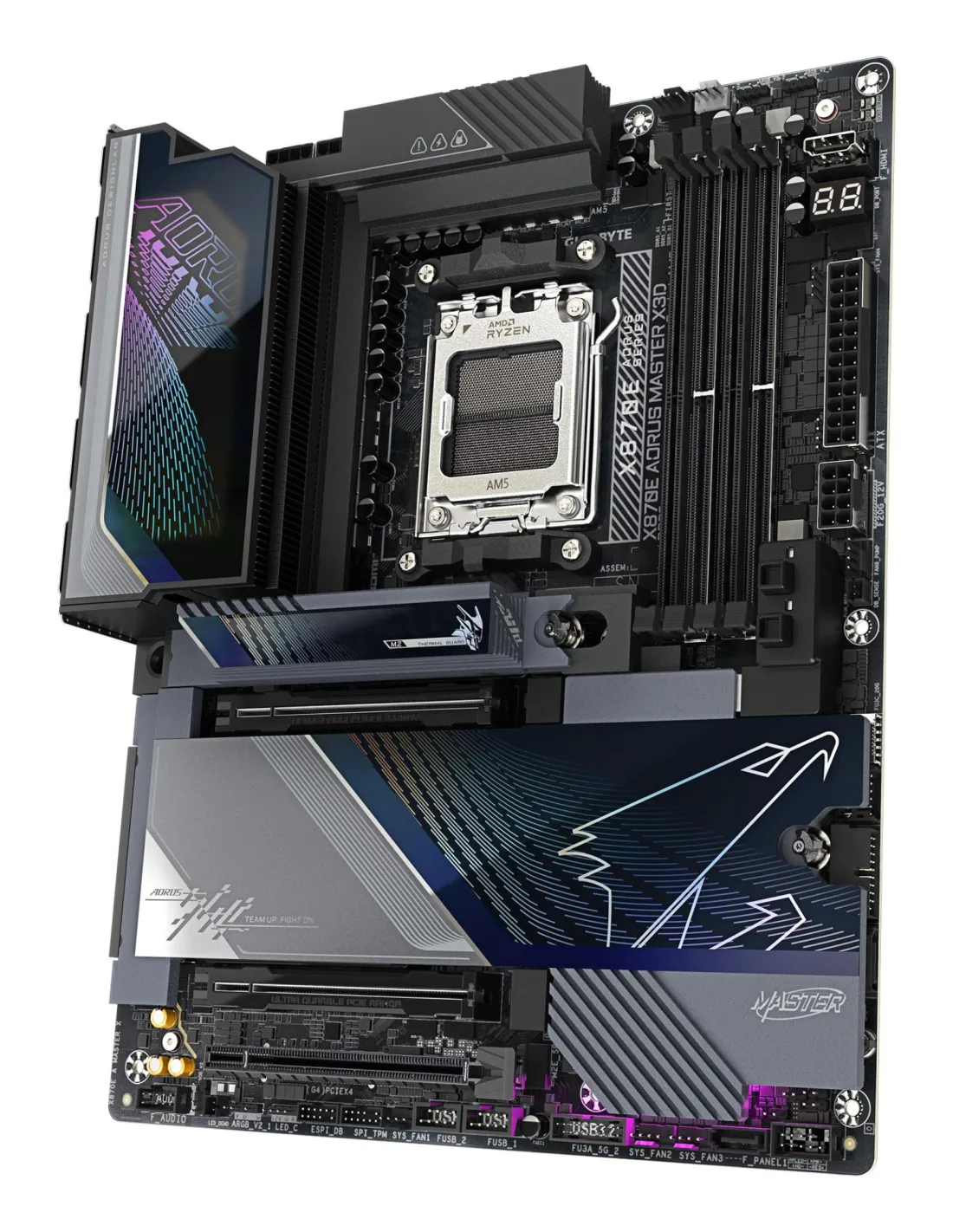

GIGABYTE X870E AORUS MASTER X pagrindinė plokštė – plokštės vaizdas iš dešinės

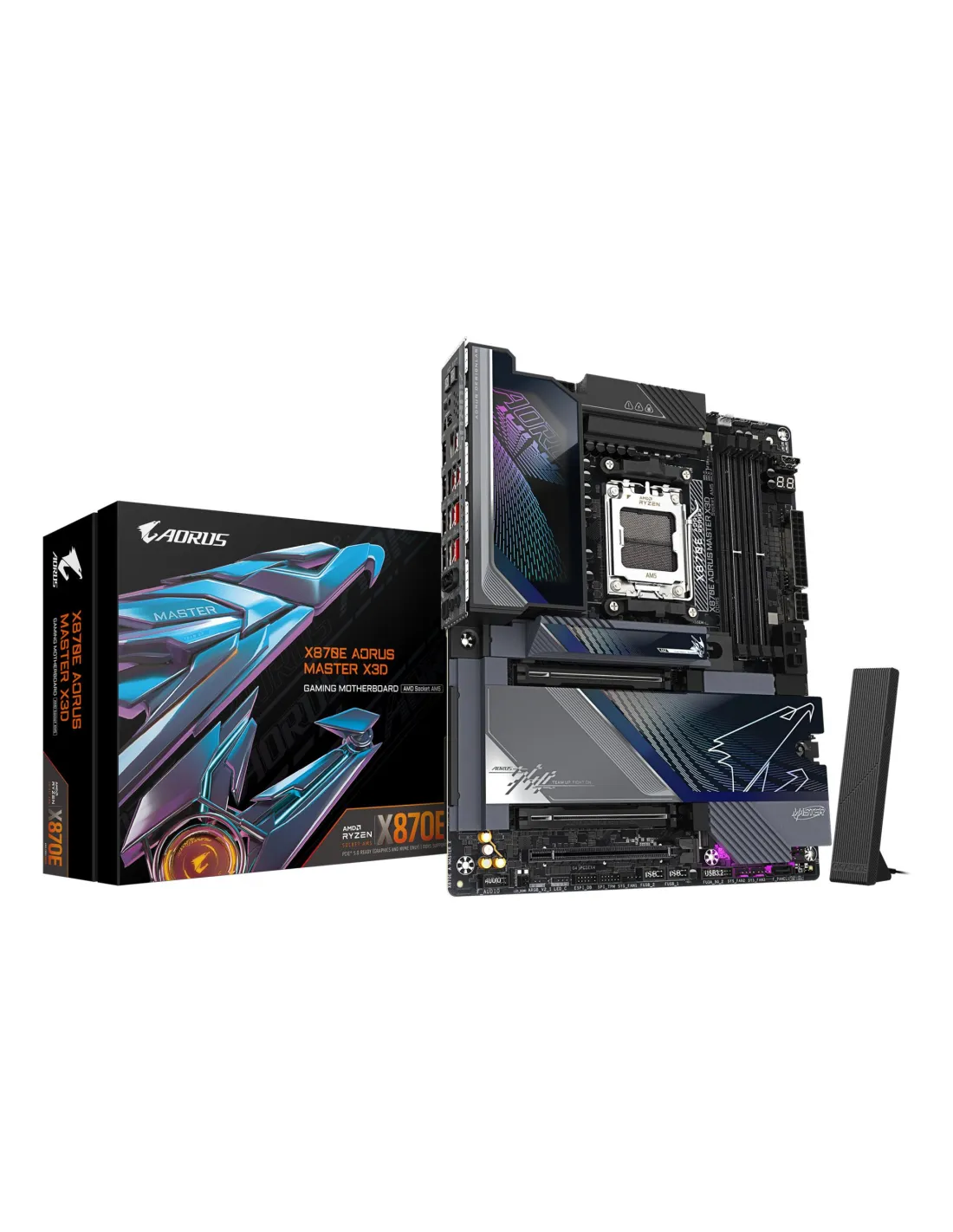

GIGABYTE X870E AORUS MASTER X pagrindinė plokštė – plokštė ir pakuotė

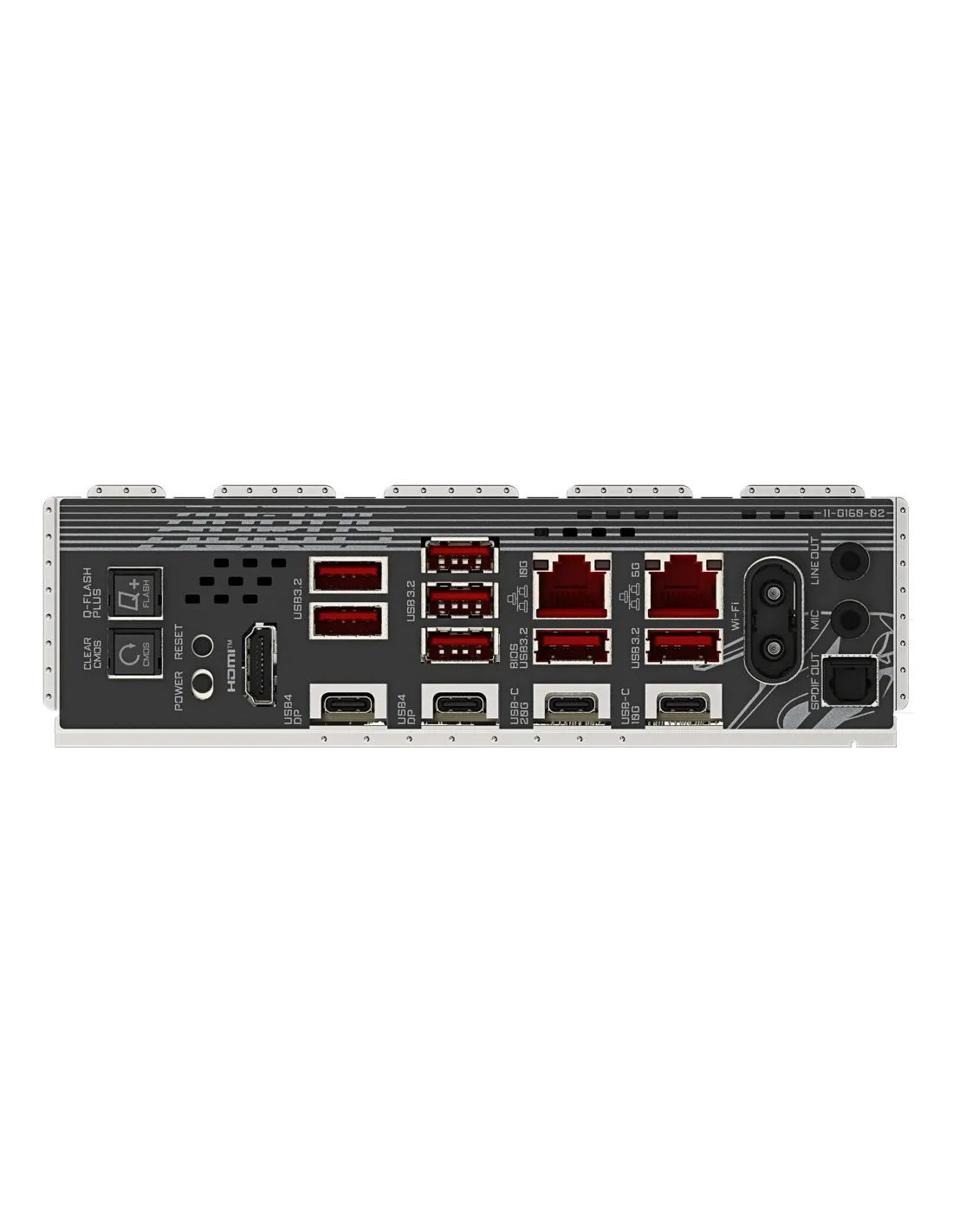

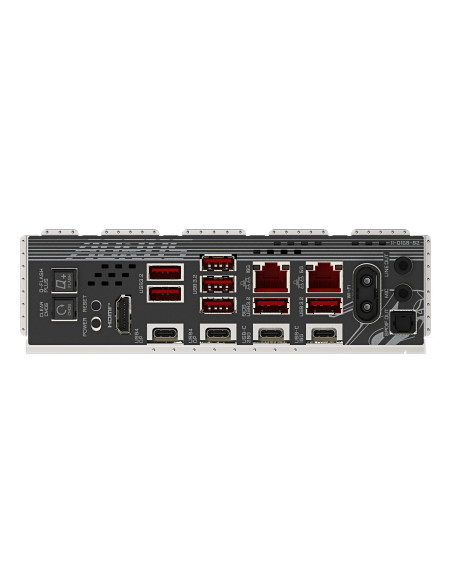

GIGABYTE X870E AORUS MASTER X pagrindinė plokštė – galinės įvesties ir išvesties jungtys

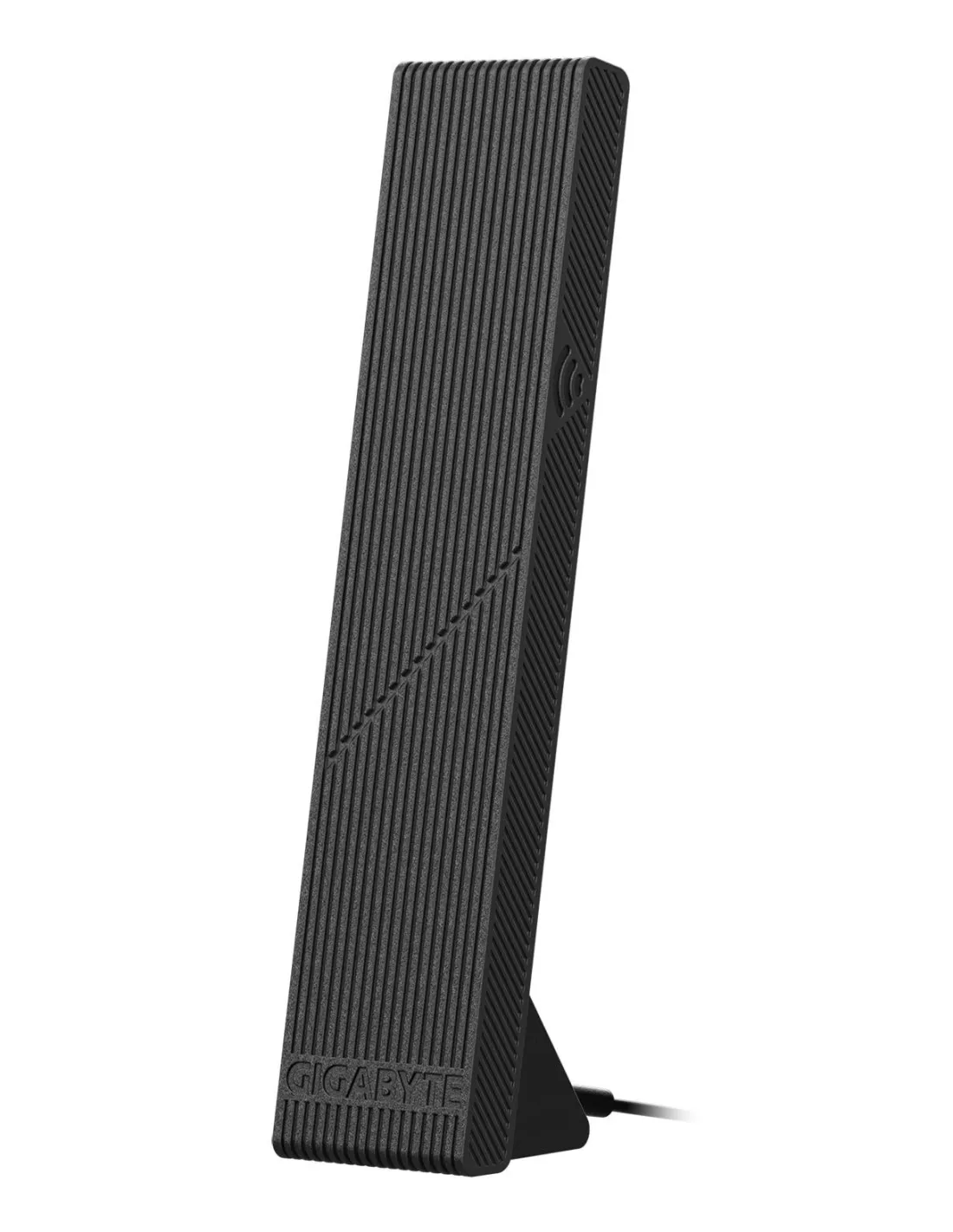

GIGABYTE X870E AORUS MASTER X pagrindinė plokštė – belaidžio ryšio antena

Gigabyte X870E AORUS MASTER X pagrindinė plokštė

Name: Gigabyte X870E AORUS MASTER X pagrindinė plokštė
Brand: GIGABYTE
SKU: X870E A MASTER X
Price: 483.89 EUR
Availability: InStock

Kodas X870E A MASTER X

Turime Lietuvoje

483,89 €

Pristatome 1 - 3 d.d.

AMD X870E , ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,PCI Express 5.0,SATA III , 4096 x 2304 pixels , 7xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity , 2xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes , Weight 3.78 kg

Prekė detaliau
Atsiliepimai (0)

CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.095
UNIT BOX LENGTH: 0.31
UNIT BOX WIDTH: 0.34
UNIT CALCULATED WEIGHT, KG: 4.35
PRODUCT NET WEIGHT, KG: 3.8
UNIT CALCULATED VOLUME, CUBM: 0.01531
UNITS PER SHIPPING BOX: 3
SIUNTOS PAKUOTĖS SVORIS, KG: 13.0500001907349
UNIT WIDTH, CM: 34
SUMMARY: GIGABYTE X870E AORUS MASTER X3D MOTHERBOARD - SUPPORTS AMD RYZEN 9000 CPUS, 18+2+2 PHASES DIGITAL VRM, UP TO 9000HZ DDR5 (OC), 2XPCIE 5.0 + 3XPCIE 4.0, WI-FI 7, 10GBE LAN, USB 4. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCES
SIUNTOS PAKUOTĖS AUKŠTIS, CM: 41
UNIT DEPTH, CM: 31
SIUNTOS PAKUOTĖS ILGIS, CM: 35
UNIT HEIGHT, CM: 9.5
SIUNTOS PAKUOTĖS PLOTIS, CM: 32
NAME: MB AMD X870E SAM5 ATX/X870E A MASTER X GIGABYTE
PRODUCT COLOUR: BLACK
NUMBER OF STORAGE DRIVES SUPPORTED: 7
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 7
PLOTIS, MM: 305
ILGIS, MM: 244
AUKŠTIS, MM: 35
WEIGHT, G: 3780
PACKAGE WIDTH, MM: 340
PACKAGE DEPTH, MM: 310
PACKAGE HEIGHT, MM: 92
PACKAGE WEIGHT, G: 4330
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-C PORTS QUANTITY: 1
MODEL: GIGABYTE X870E AORUS MASTER X3D
MOTHERBOARD CHIPSET: AMD X870E
HDMI PORTS QUANTITY: 1
HDMI VERSION: 2.1
DISPLAYPORT VERSION: 1.4
HEADPHONE OUTPUTS: 1
WARRANTY PERIOD, YEAR(S): 3
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
COOLING TYPE: PASSIVE
MAXIMUM RESOLUTION, PIXELS: 4096 X 2304
DIRECTX VERSION: 12.0
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 11 X64
AUDIO CHIP: REALTEK ALC1220-VB/ESS 9118
PC HEALTH MONITORING: CPU/FAN/TEMPERATURE/VOLTAGE/WATER COOLING
COMPONENT FOR: PC
MOTHERBOARD FORM FACTOR: ATX
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET FAMILY: AMD
POWER SOURCE TYPE: ATX
PROCESSOR MANUFACTURER: AMD
PROCESSOR SOCKET: SOCKET AM5
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
SUPPORTED MEMORY TYPES: DDR5-SDRAM
NUMBER OF MEMORY SLOTS: 4
MEMORY SLOTS TYPE: DIMM
MEMORY CHANNELS: DUAL-CHANNEL
ECC СOMPATIBILITY: NON-ECC
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9000
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 9000
MAXIMUM INTERNAL MEMORY, GB: 256
UNBUFFERED MEMORY: TAIP
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,PCI EXPRESS 5.0,SATA III
NUMBER OF HDDS SUPPORTED: 2
RAID SUPPORT: TAIP
RAID LEVELS: 0/1/10/5
HDCP: TAIP
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
HDCP VERSION: 2.3
NUMBER OF SATA III CONNECTORS: 2
FRONT PANEL AUDIO CONNECTOR: TAIP
FRONT PANEL CONNECTOR: TAIP
ATX POWER CONNECTOR (24-PIN): TAIP
CPU FAN CONNECTOR: TAIP
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF CHASSIS FAN CONNECTORS: 6
CHASSIS INTRUSION CONNECTOR: TAIP
EPS POWER CONNECTOR (8-PIN): TAIP
NUMBER OF EPS POWER CONNECTORS (8-PIN): 2
USB 3.2 GEN 2X2 CONNECTORS: 1
NUMBER OF NOISE DETECTION HEADERS: 1
NUMBER OF WATER PUMP CONNECTORS: 2
TPM CONNECTOR: TAIP
RGB LED PIN HEADER: TAIP
NUMBER OF RGB LED PIN HEADERS: 5
USB 3.2 GEN 2X2 TYPE-C PORTS QUANTITY: 1
USB4 GEN 2X2 PORTS QUANTITY: 2
ETHERNET LAN (RJ-45) PORTS: 2
LINE-IN: TAIP
S/PDIF OUT PORT: TAIP
DIGITAL AUDIO OPTICAL OUT: 1
WIFI-AP ANTENNA JACK: 2
ETHERNET LAN: TAIP
ETHERNET INTERFACE TYPE: 10 GIGABIT ETHERNET/2.5 GIGABIT ETHERNET/5 GIGABIT ETHERNET/FAST ETHERNET/GIGABIT ETHERNET
LAN CONTROLLER: REALTEK RTL8126/REALTEK RTL8127
WI-FI: TAIP
TOP WI-FI STANDARD: WI-FI 7 (802.11BE)
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)/WI-FI 7 (802.11BE)
WLAN CONTROLLER MODEL: MEDIATEK MT7927
BLUETOOTH: TAIP
BLUETOOTH VERSION: 5.4
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
PCI EXPRESS X16 (GEN 5.X) SLOTS: 2
NUMBER OF M.2 (M) SLOTS: 5
1ST M.2 LARGEST KEY SIZE: 2580
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
2ND M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
3RD M.2 LARGEST KEY SIZE: 2280
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
4TH M.2 LARGEST KEY SIZE: 2280
4TH M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
NUMBER OF TEMPERATURE SENSOR HEADERS: 2
5TH M.2 LARGEST KEY SIZE: 2280
BIOS TYPE: UEFI AMI
BIOS MEMORY SIZE, MBIT: 512
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: TAIP
CLEAR CMOS BUTTON: TAIP
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
COUNTRY OF ORIGIN: TAIWAN
BATTERY WEIGHT, G: 3
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
BATTERY CAPACITY, MAH: 220
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
ANTENNA INCLUDED: TAIP
BATTERIES INCLUDED: TAIP
SCREWS INCLUDED: TAIP
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION)
5TH M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
