Nauja

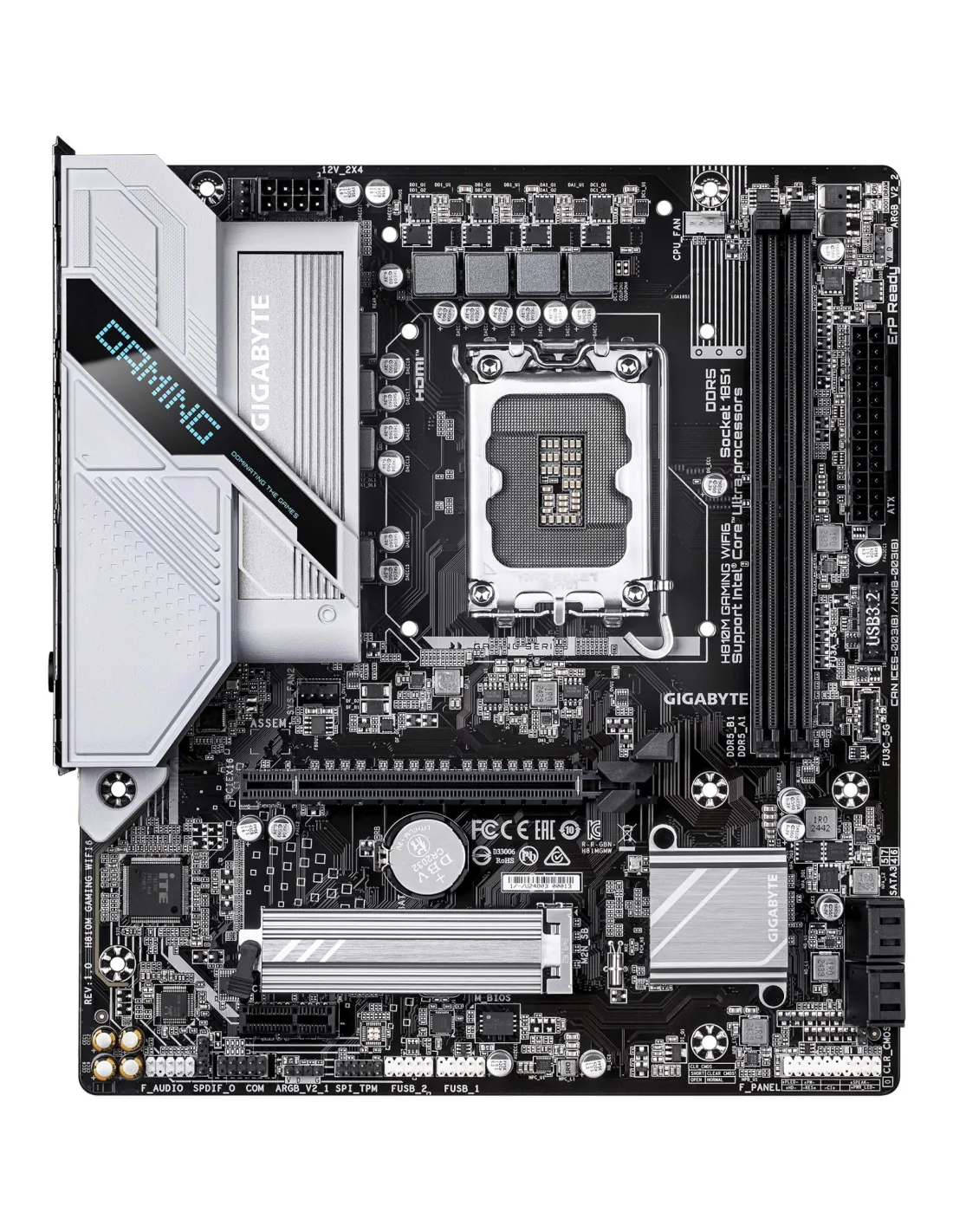

GIGABYTE H810M GAMING WIFI6 pagrindinė plokštė – vaizdas iš viršaus

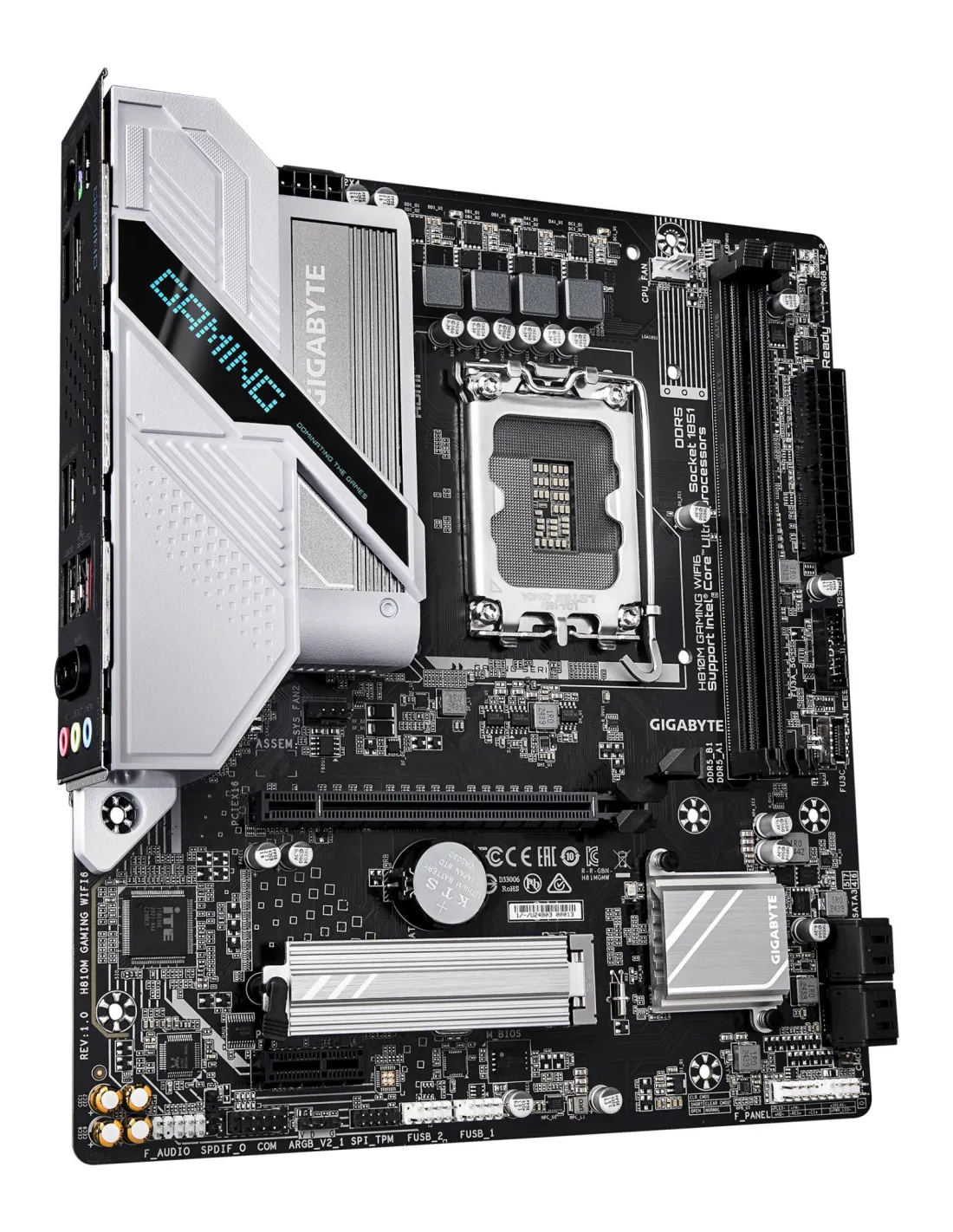

GIGABYTE H810M GAMING WIFI6 pagrindinė plokštė – plokštės vaizdas kampu

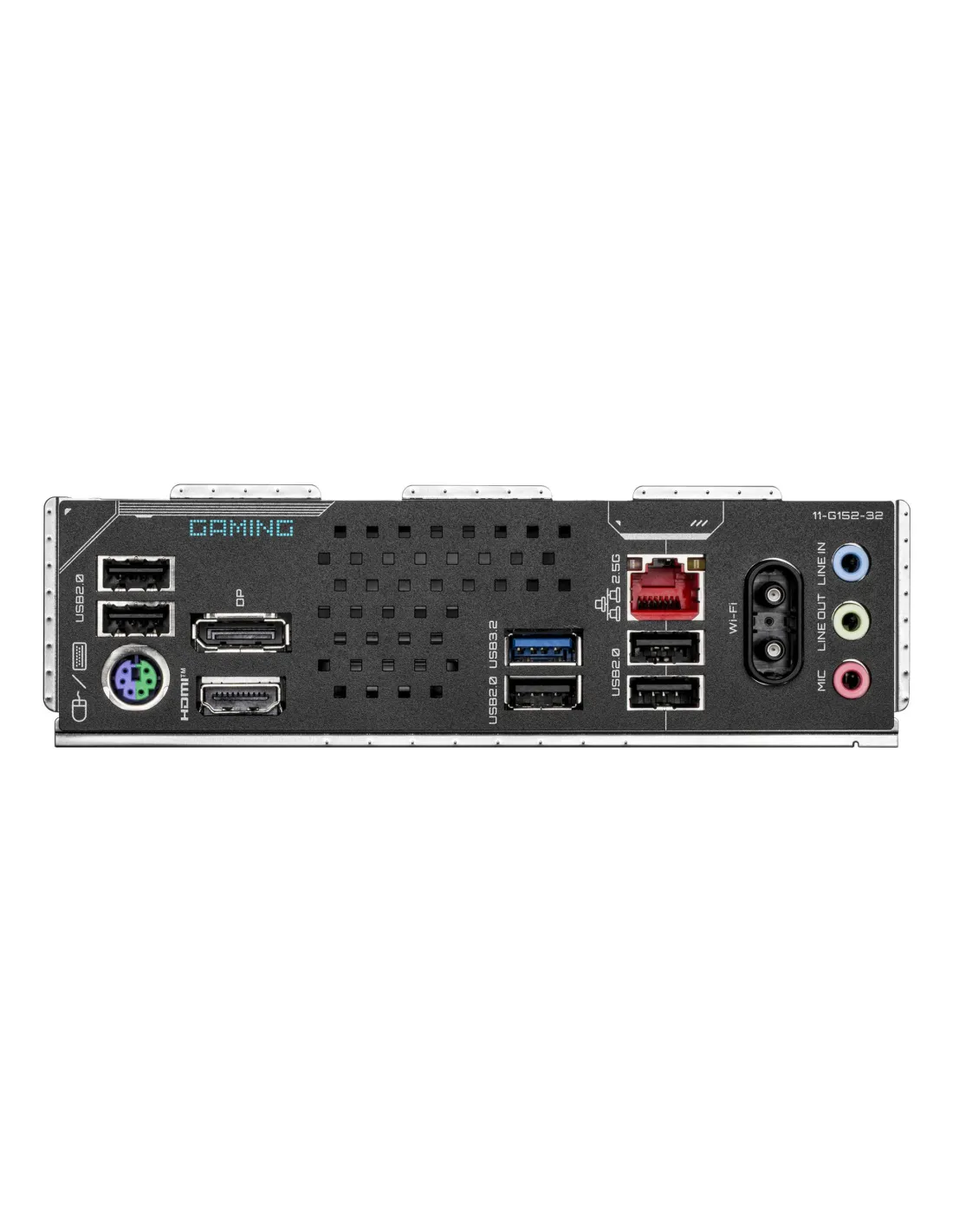

GIGABYTE H810M GAMING WIFI6 pagrindinė plokštė – galinės įvesties ir išvesties jungtys

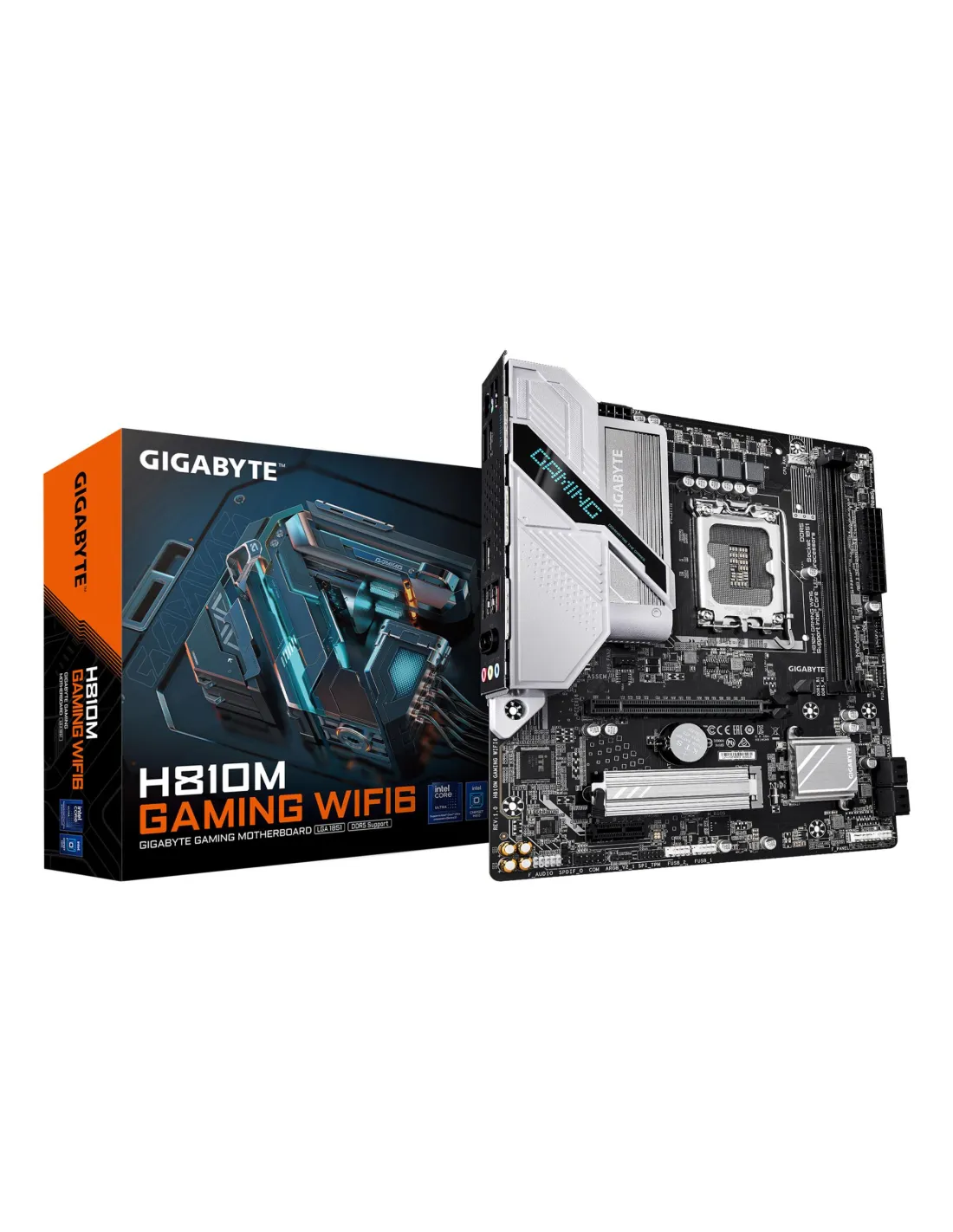

GIGABYTE H810M GAMING WIFI6 pagrindinė plokštė – plokštė ir pakuotė

Mainboard, GIGABYTE, 1xNumber of M.2 (M) slots, micro ATX, Intel H810, Bluetooth Yes, Wi-Fi Yes, 2xSlots, RAM DDR5-SDRAM, LGA 1

Name: Mainboard, GIGABYTE, 1xNumber of M.2 (M) slots, micro ATX, Intel H810, Bluetooth Yes, Wi-Fi Yes, 2xSlots, RAM DDR5-SDRAM, LGA 1
Brand: GIGABYTE
SKU: H810M GAMING WIFI6
Price: 105.67 EUR
Availability: InStock

Kodas H810M GAMING WIFI6

Turime Lietuvoje

105,67 €

Pristatome 1 - 3 d.d.

Intel H810 , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1851 (Socket V1) , Supported memory types DDR5-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,SATA III , 4096 x 2160 pixels , 5xUSB 2.0 ports quantity , 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes , Weight 1.1 kg

Prekė detaliau
Atsiliepimai (0)

CATEGORY CODE: MBI
CNCODE: 84733020
UNIT BOX HEIGHT: 0.07
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.27
UNIT CALCULATED WEIGHT, KG: 1.16
UNIT CALCULATED VOLUME, CUBM: 0.006165
UNITS PER SHIPPING BOX: 10
SIUNTOS PAKUOTĖS SVORIS, KG: 11.5500001907349
UNIT WIDTH, CM: 27
SUMMARY: GIGABYTE H810M GAMING WIFI6 MOTHERBOARD - INTEL CORE ULTRA (SERIES 2) CPUS, 4+1+2 PHASES VRM, UP TO 6400MHZ DDR5, 1XPCIE 4.0 M.2, 2.5GBE LAN, WIFI 6, USB 3.2 GEN 1. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1851 (SOCKET V1), COMPATIBLE PROCESSO
SIUNTOS PAKUOTĖS AUKŠTIS, CM: 29.5
UNIT DEPTH, CM: 27
SIUNTOS PAKUOTĖS ILGIS, CM: 55
UNIT HEIGHT, CM: 7
SIUNTOS PAKUOTĖS PLOTIS, CM: 38
NAME: MB H810 S1851 MATX/H810M GAMING WIFI6 GIGABYTE
PRODUCT COLOUR: DARK BROWN
NUMBER OF STORAGE DRIVES SUPPORTED: 5
PLOTIS, MM: 244
ILGIS, MM: 215
AUKŠTIS, MM: 35
WEIGHT, G: 1.1
PACKAGE WIDTH, MM: 270
PACKAGE DEPTH, MM: 268
PACKAGE HEIGHT, MM: 68
PACKAGE WEIGHT, G: 1193
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 1
MOTHERBOARD CHIPSET: INTEL H810
HDMI PORTS QUANTITY: 1
HDMI VERSION: 2.1
DISPLAYPORTS QUANTITY: 1
DISPLAYPORT VERSION: 2.1
HEADPHONE OUTPUTS: 1
WARRANTY PERIOD, YEAR(S): 3
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
COOLING TYPE: PASSIVE
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
DIRECTX VERSION: 12.0
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
AUDIO CHIP: REALTEK ALC897
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
COMPONENT FOR: PC
MOTHERBOARD FORM FACTOR: MICRO ATX
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET FAMILY: INTEL
POWER SOURCE TYPE: ATX
PROCESSOR MANUFACTURER: INTEL
PROCESSOR SOCKET: LGA 1851 (SOCKET V1)
COMPATIBLE PROCESSOR SERIES: INTEL CORE ULTRA (SERIES 2)
SUPPORTED PROCESSOR SOCKETS: LGA 1851
SUPPORTED MEMORY TYPES: DDR5-SDRAM
NUMBER OF MEMORY SLOTS: 2
MEMORY SLOTS TYPE: DIMM
MEMORY CHANNELS: DUAL-CHANNEL
ECC СOMPATIBILITY: ECC & NON-ECC
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 5600/6400
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 6400
MAXIMUM INTERNAL MEMORY, GB: 128
UNBUFFERED MEMORY: TAIP
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,SATA III
NUMBER OF HDDS SUPPORTED: 4
RAID SUPPORT: TAIP
RAID LEVELS: 0/1/10/5
HDCP: TAIP
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
NUMBER OF SATA III CONNECTORS: 4
FRONT PANEL AUDIO CONNECTOR: TAIP
FRONT PANEL CONNECTOR: TAIP
ATX POWER CONNECTOR (24-PIN): TAIP
CPU FAN CONNECTOR: TAIP
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF CHASSIS FAN CONNECTORS: 2
EPS POWER CONNECTOR (8-PIN): TAIP
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
TPM CONNECTOR: TAIP
RGB LED PIN HEADER: TAIP
NUMBER OF RGB LED PIN HEADERS: 2
ETHERNET LAN (RJ-45) PORTS: 1
LINE-IN: TAIP
WIFI-AP ANTENNA JACK: 2
ETHERNET LAN: TAIP
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
LAN CONTROLLER: REALTEK RTL8125
WI-FI: TAIP
TOP WI-FI STANDARD: WI-FI 6 (802.11AX)
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)
WLAN CONTROLLER MODEL: REALTEK RTL8851BE
BLUETOOTH: TAIP
BLUETOOTH VERSION: 5.3
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
NUMBER OF M.2 (M) SLOTS: 1
1ST M.2 LARGEST KEY SIZE: 2280
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
BIOS TYPE: UEFI AMI
BIOS MEMORY SIZE, MBIT: 256
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: TAIP
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
BATTERY WEIGHT, G: 3
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
ANTENNA INCLUDED: TAIP
BATTERIES INCLUDED: TAIP
SCREWS INCLUDED: TAIP
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
USB 2.0 PORTS QUANTITY: 5
MICROPHONE IN: TAIP
SERIAL PORT HEADERS: 1
S/PDIF OUT CONNECTOR: TAIP
PS/2 PORTS QUANTITY: 1
PCI EXPRESS X1 (GEN 3.X) SLOTS: 1
