Nauja

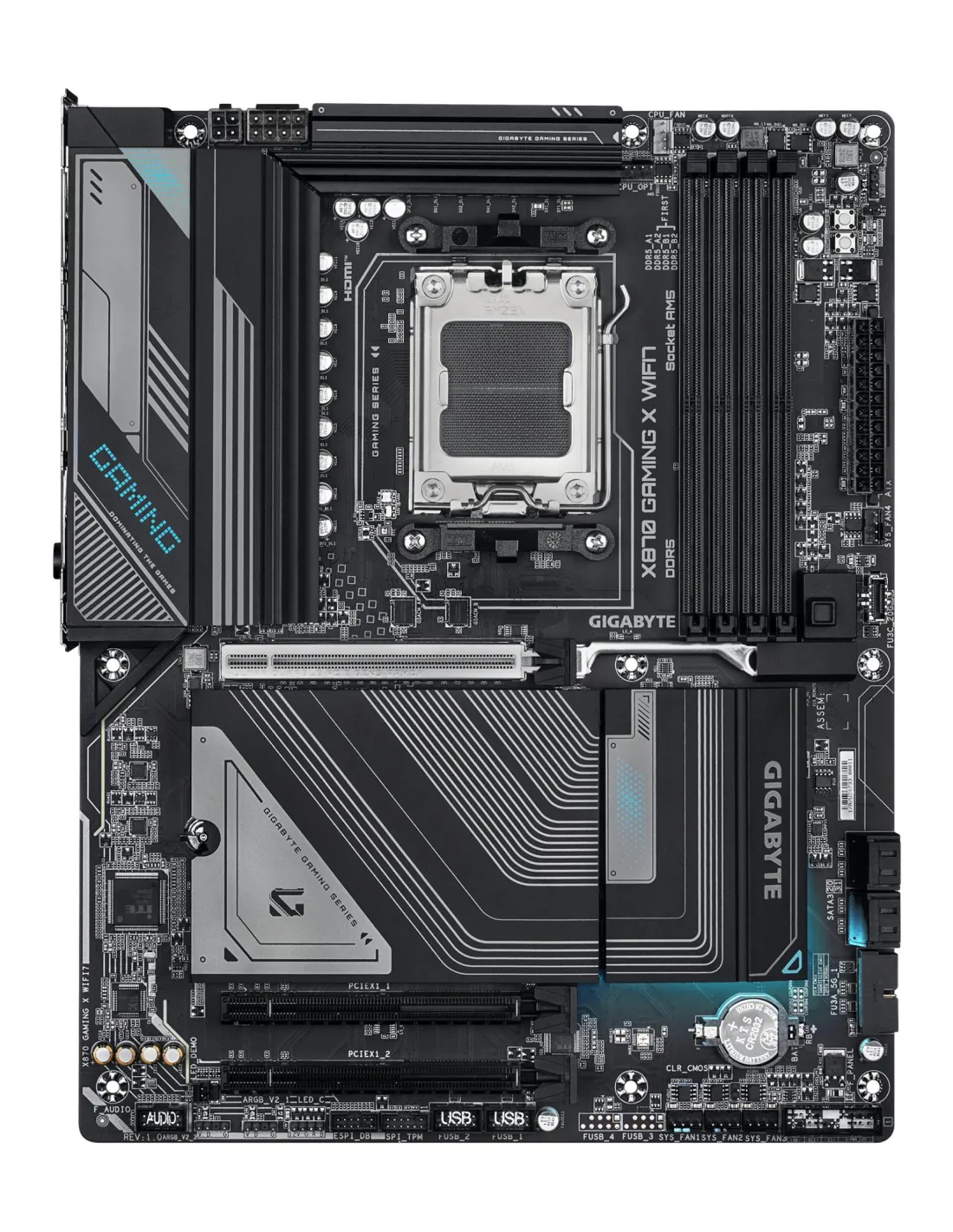

GIGABYTE X870 GAMING X WIFI7 pagrindinė plokštė – vaizdas iš viršaus

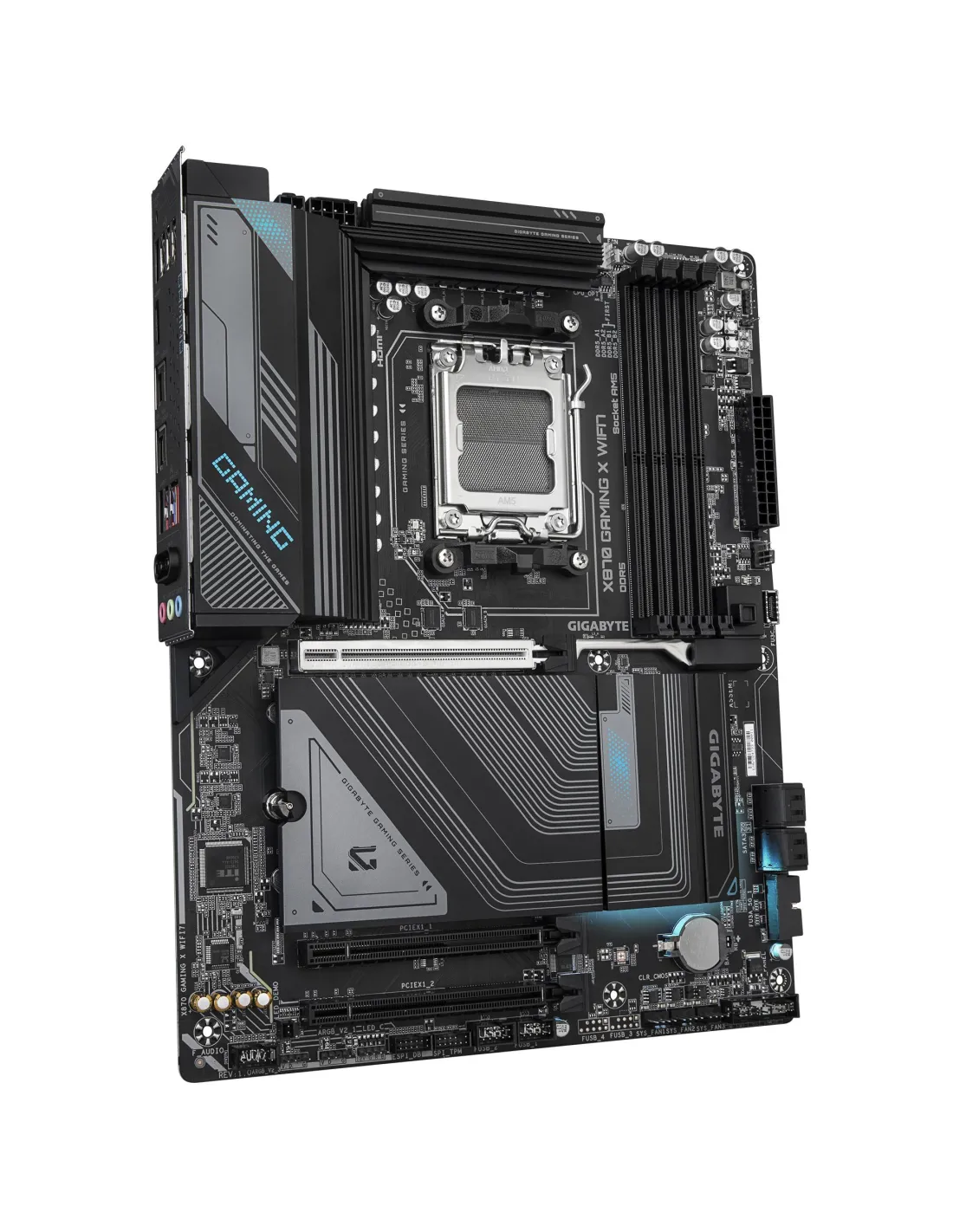

GIGABYTE X870 GAMING X WIFI7 pagrindinė plokštė – plokštės vaizdas kampu

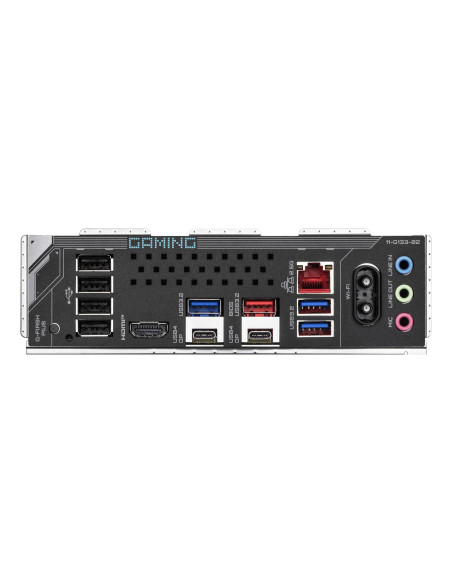

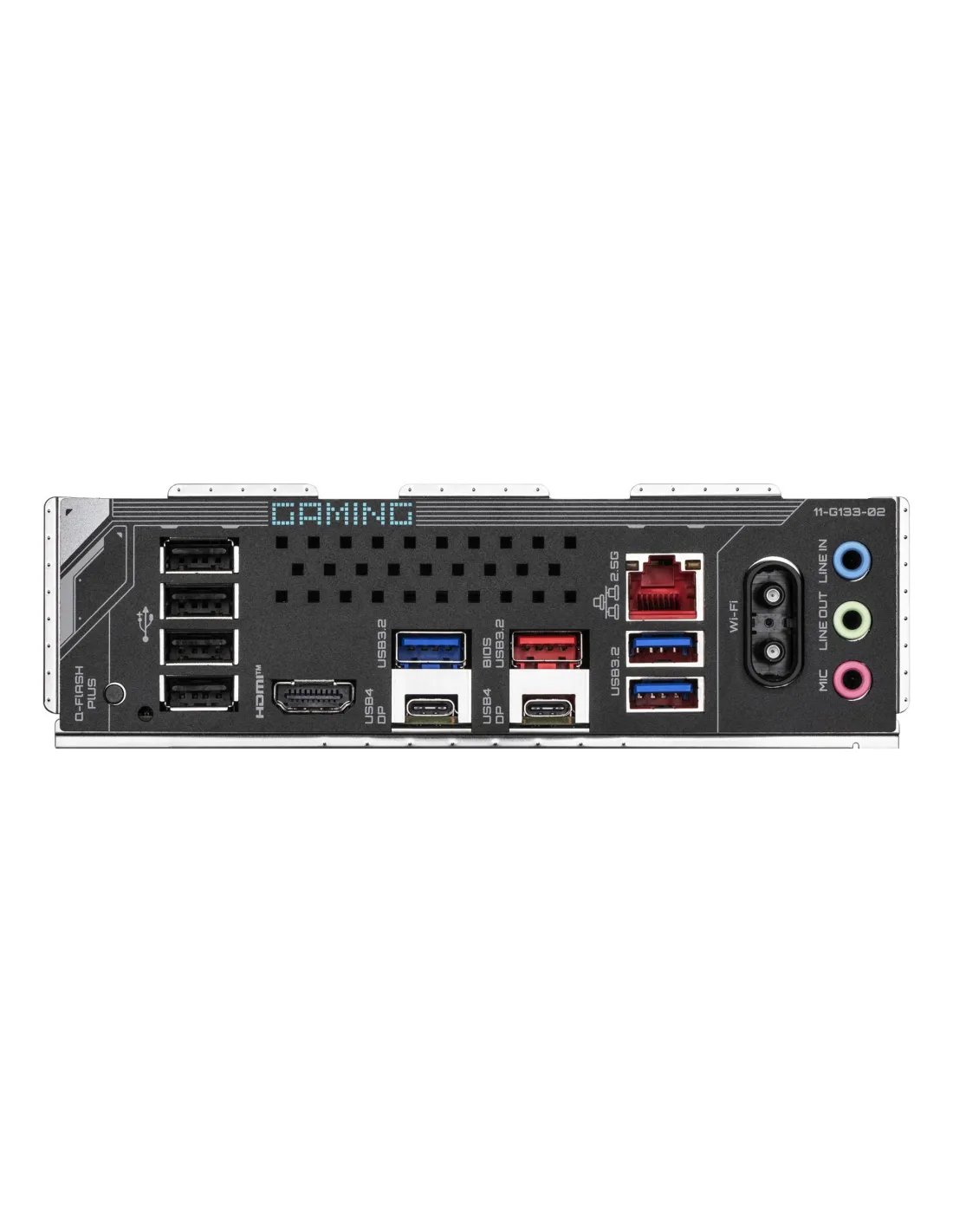

GIGABYTE X870 GAMING X WIFI7 pagrindinė plokštė – galinės įvesties ir išvesties jungtys

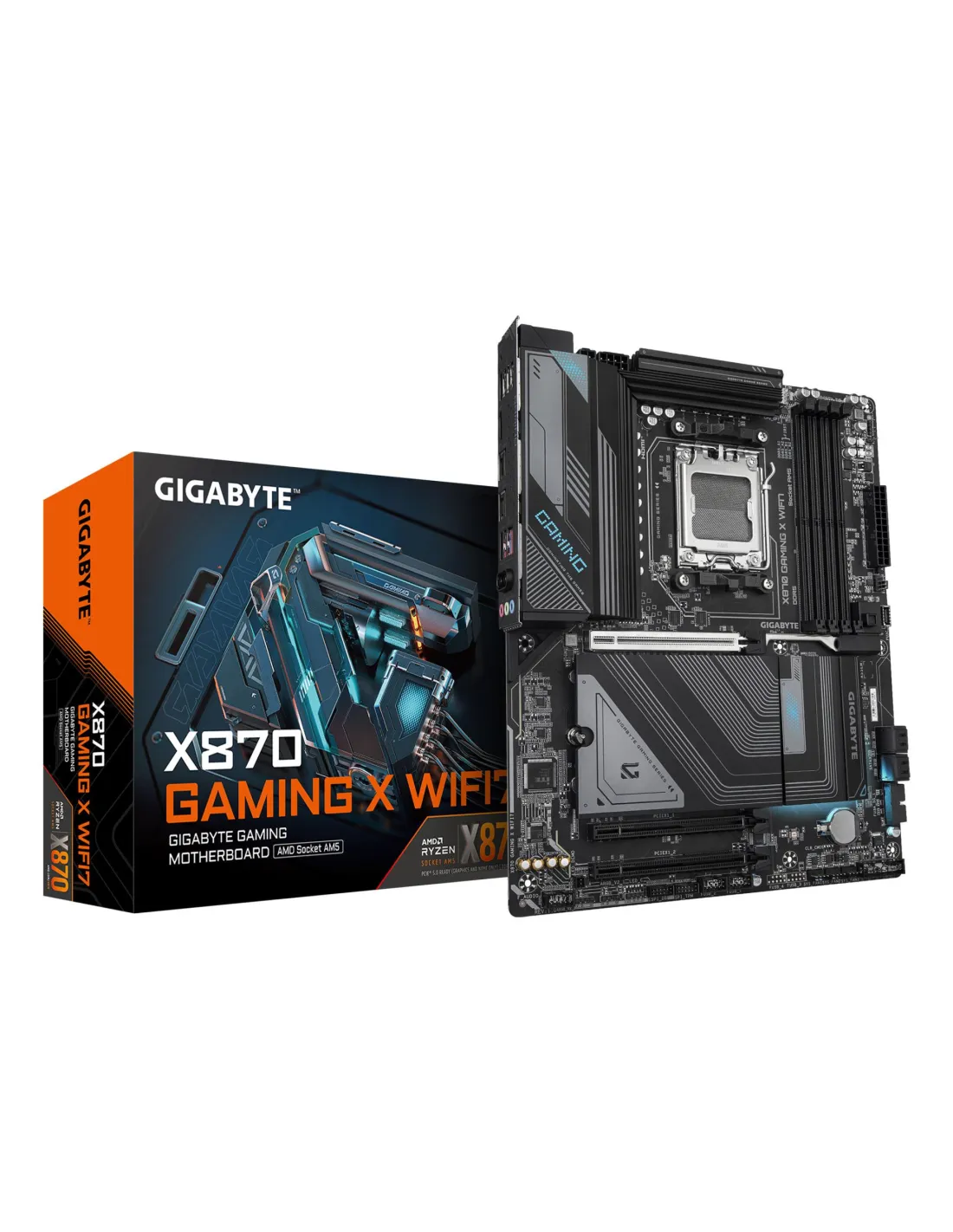

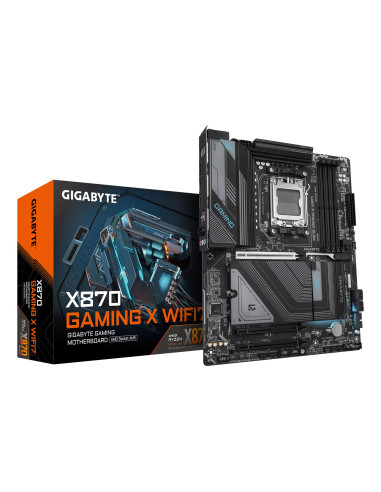

GIGABYTE X870 GAMING X WIFI7 pagrindinė plokštė – plokštė ir pakuotė

Gigabyte X870 GAMING X WIFI7 (rev. 1.1) pagrindinė plokštė

Name: Gigabyte X870 GAMING X WIFI7 (rev. 1.1) pagrindinė plokštė
Brand: GIGABYTE
SKU: X870 GAMING X WIFI7 1.1
Price: 219.36 EUR
Availability: InStock

Kodas X870 GAMING X WIFI7 1.1

Turime Lietuvoje

219,36 €

Pristatome 1 - 3 d.d.

AMD X870 , ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4xUSB 2.0 ports quantity , 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes , Weight 2.23 kg

Prekė detaliau
Atsiliepimai (0)

CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.38
UNIT BOX LENGTH: 0.535
UNIT BOX WIDTH: 0.0525
UNIT CALCULATED WEIGHT, KG: 2.37
PRODUCT NET WEIGHT, KG: 1.8
UNIT CALCULATED VOLUME, CUBM: 0.01067
UNITS PER SHIPPING BOX: 6
SIUNTOS PAKUOTĖS SVORIS, KG: 14.1999998093
UNIT WIDTH, CM: 5.25
SUMMARY: GIGABYTE X870 GAMING X WIFI7 MOTHERBOARD - SUPPORTS AMD RYZEN 9000 CPUS, 16+2+2 PHASES VRM, UP TO 8000MHZ DDR5 (OC), 1XPCIE 5.0 + 2XPCIE 4.0, WI-FI 7, 2.5GBE LAN, USB 4. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERIE
SIUNTOS PAKUOTĖS AUKŠTIS, CM: 38
UNIT DEPTH, CM: 53.5
SIUNTOS PAKUOTĖS ILGIS, CM: 53.5
UNIT HEIGHT, CM: 38
SIUNTOS PAKUOTĖS PLOTIS, CM: 31.5
NAME: MB AMD X870 SAM5 ATX/X870 GAMING X WIFI7 GIGABYTE
PRODUCT COLOUR: BLACK
NUMBER OF STORAGE DRIVES SUPPORTED: 7
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 1
PLOTIS, MM: 305
ILGIS, MM: 244
AUKŠTIS, MM: 35
WEIGHT, G: 2230
PACKAGE WIDTH, MM: 335
PACKAGE DEPTH, MM: 270
PACKAGE HEIGHT, MM: 80
PACKAGE WEIGHT, G: 2530
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 2
MODEL: X870 GAMING X WIFI7 1.1
MOTHERBOARD CHIPSET: AMD X870
HDMI PORTS QUANTITY: 1
HDMI VERSION: 2.1
DISPLAYPORT VERSION: 1.4
HEADPHONE OUTPUTS: 1
WARRANTY PERIOD, YEAR(S): 3
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN): 1
DIRECTX VERSION: 12.0
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 11 X64
AUDIO CHIP: REALTEK ALC897
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE
COMPONENT FOR: PC
MOTHERBOARD FORM FACTOR: ATX
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET FAMILY: AMD
PROCESSOR MANUFACTURER: AMD
PROCESSOR SOCKET: SOCKET AM5
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
SUPPORTED MEMORY TYPES: DDR5-SDRAM
NUMBER OF MEMORY SLOTS: 4
MEMORY SLOTS TYPE: DIMM
MEMORY CHANNELS: DUAL-CHANNEL
ECC СOMPATIBILITY: NON-ECC
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8200
MAXIMUM INTERNAL MEMORY, GB: 256
UNBUFFERED MEMORY: TAIP
MAXIMUM INTERNAL MEMORY SUPPORTED BY PROCESSOR, GB: 256
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
NUMBER OF HDDS SUPPORTED: 7
RAID SUPPORT: TAIP
RAID LEVELS: 0/1/10
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
FRONT PANEL AUDIO CONNECTOR: TAIP
FRONT PANEL CONNECTOR: TAIP
ATX POWER CONNECTOR (24-PIN): TAIP
CPU FAN CONNECTOR: TAIP
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF CHASSIS FAN CONNECTORS: 4
EPS POWER CONNECTOR (8-PIN): TAIP
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
USB 3.2 GEN 2X2 CONNECTORS: 1
NUMBER OF WATER PUMP CONNECTORS: 1
TPM CONNECTOR: TAIP
RGB LED PIN HEADER: TAIP
NUMBER OF RGB LED PIN HEADERS: 4
USB4 GEN 2X2 PORTS QUANTITY: 2
ETHERNET LAN (RJ-45) PORTS: 1
WIFI-AP ANTENNA JACK: 2
ETHERNET LAN: TAIP
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
LAN CONTROLLER: REALTEK RTL8125
WI-FI: TAIP
TOP WI-FI STANDARD: WI-FI 7 (802.11BE)
WI-FI STANDARDS: WI-FI 7 (802.11BE)
WLAN CONTROLLER MODEL: MEDIATEK MT7925
BLUETOOTH: TAIP
BLUETOOTH VERSION: 5.4
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
NUMBER OF M.2 (M) SLOTS: 3
1ST M.2 LARGEST KEY SIZE: 25110
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
2ND M.2 LARGEST KEY SIZE: 25110
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
3RD M.2 LARGEST KEY SIZE: 25110
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
BIOS TYPE: UEFI AMI
BIOS MEMORY SIZE, MBIT: 256
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: TAIP
CLEAR CMOS BUTTON: TAIP
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
COUNTRY OF ORIGIN: CHINA
BATTERY WEIGHT, G: 3
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
ANTENNA INCLUDED: TAIP
BATTERIES INCLUDED: TAIP
SCREWS INCLUDED: TAIP
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
PCI EXPRESS X16 (GEN 3.X) SLOTS: 2
ON-BOARD GRAPHICS CARD: NE
USB 2.0 PORTS QUANTITY: 4
MICROPHONE IN: TAIP
SUPPORTED MEMORY MODULE CAPACITIES: 16GB/1GB/24GB/2GB/32GB/40GB/48GB/4GB/64GB/8GB
PCI EXPRESS X4 SLOTS: 2
