Nauja

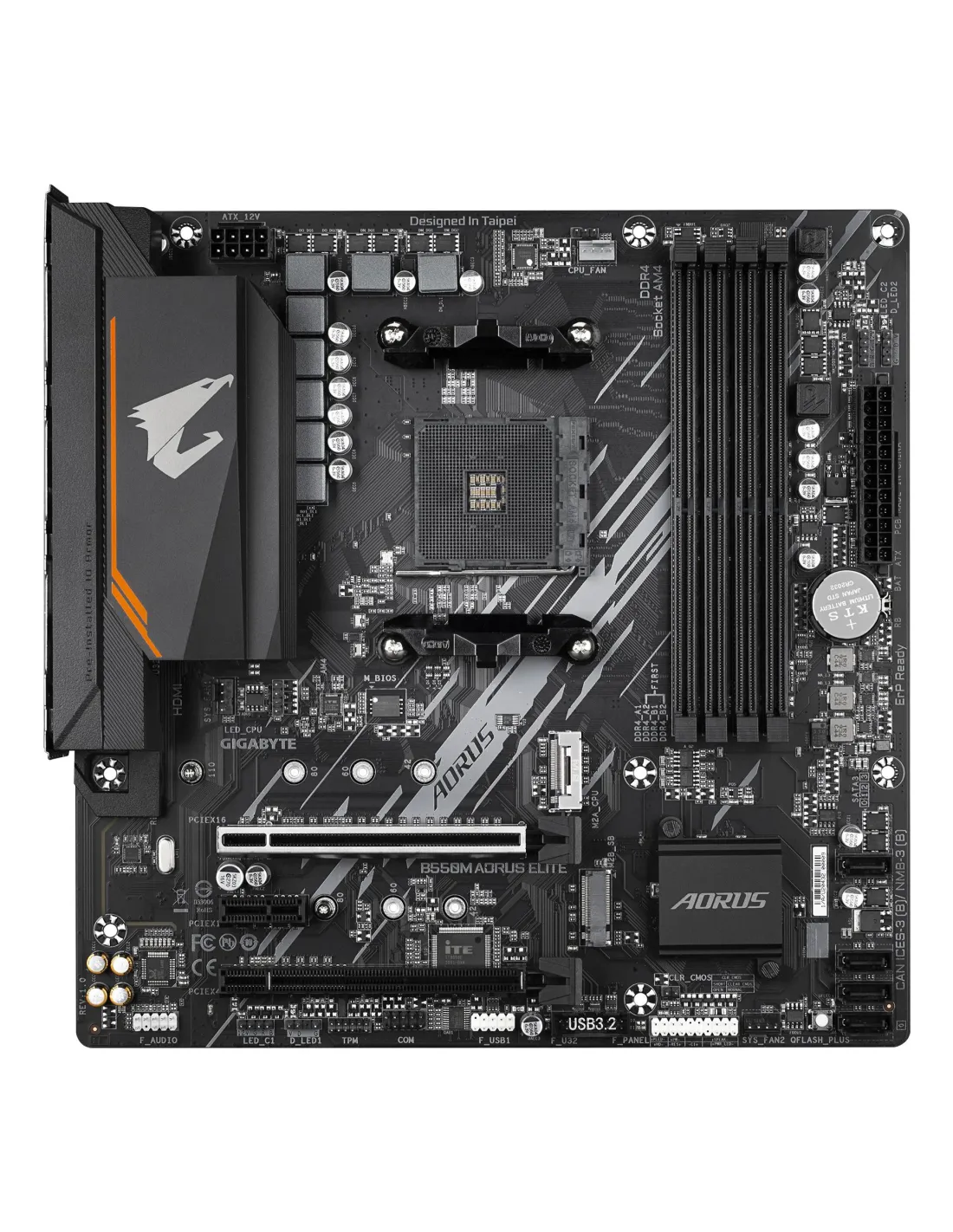

GIGABYTE B550M AORUS ELITE pagrindinė plokštė – vaizdas iš viršaus

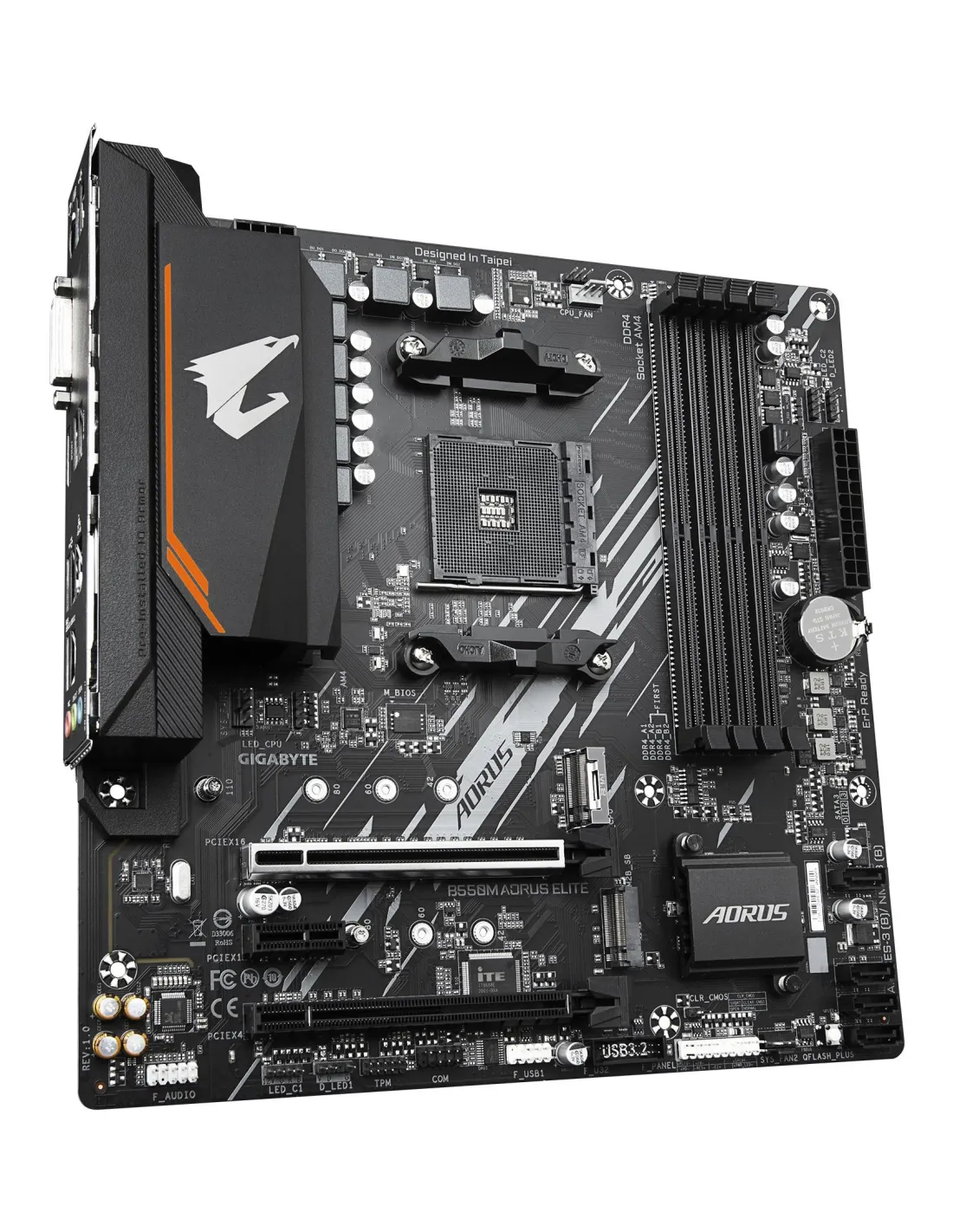

GIGABYTE B550M AORUS ELITE pagrindinė plokštė – plokštės vaizdas kampu

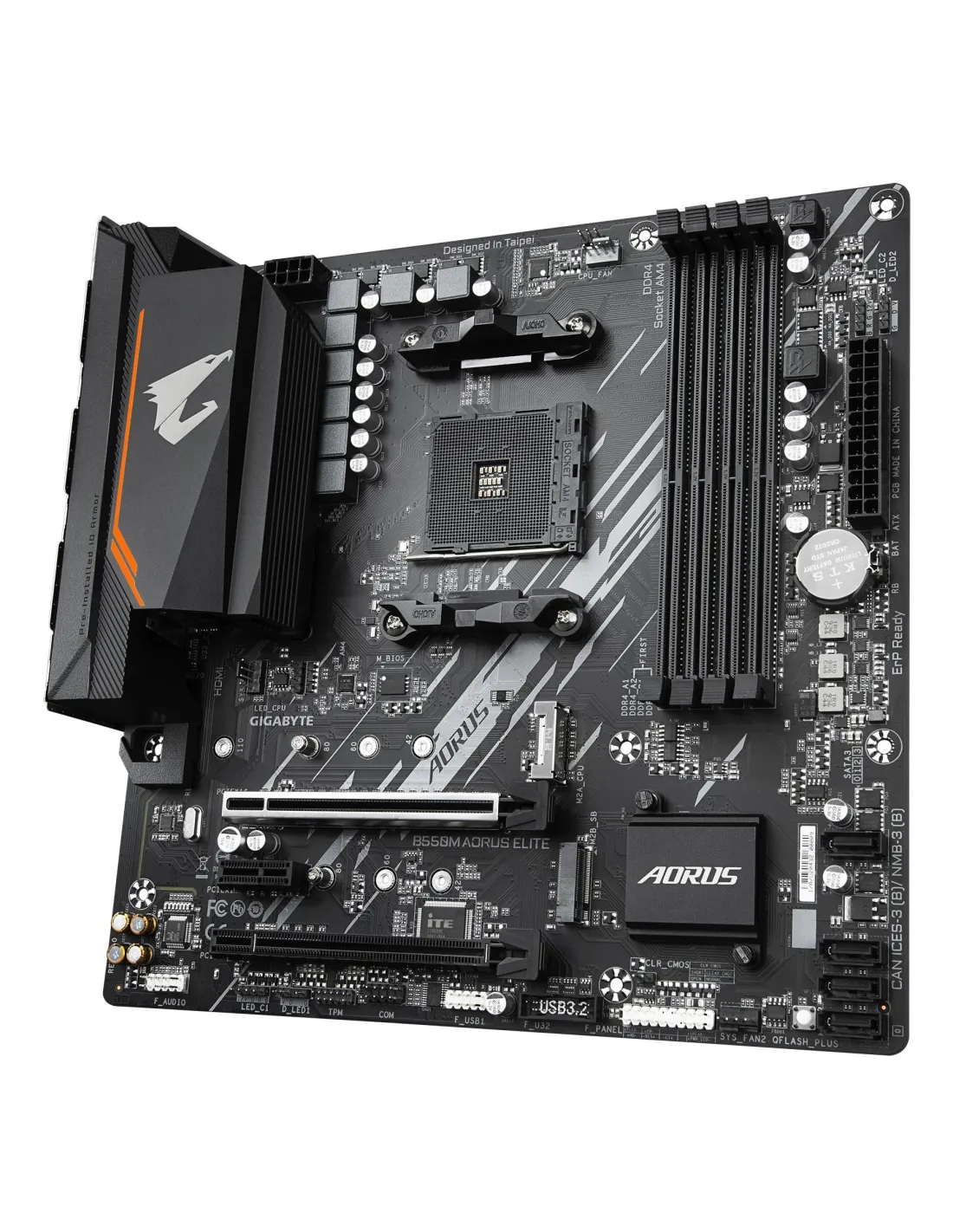

GIGABYTE B550M AORUS ELITE pagrindinė plokštė – procesoriaus ir atminties lizdai kampu

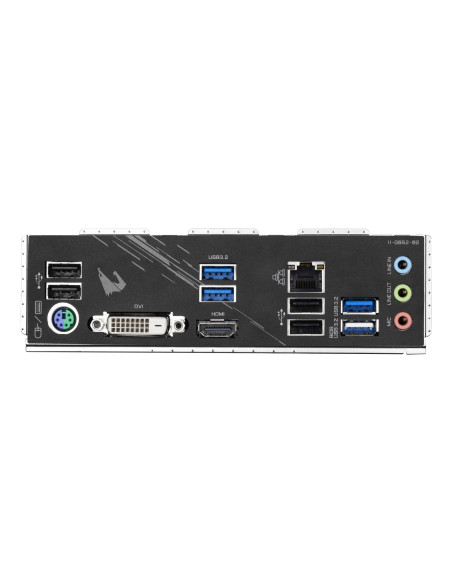

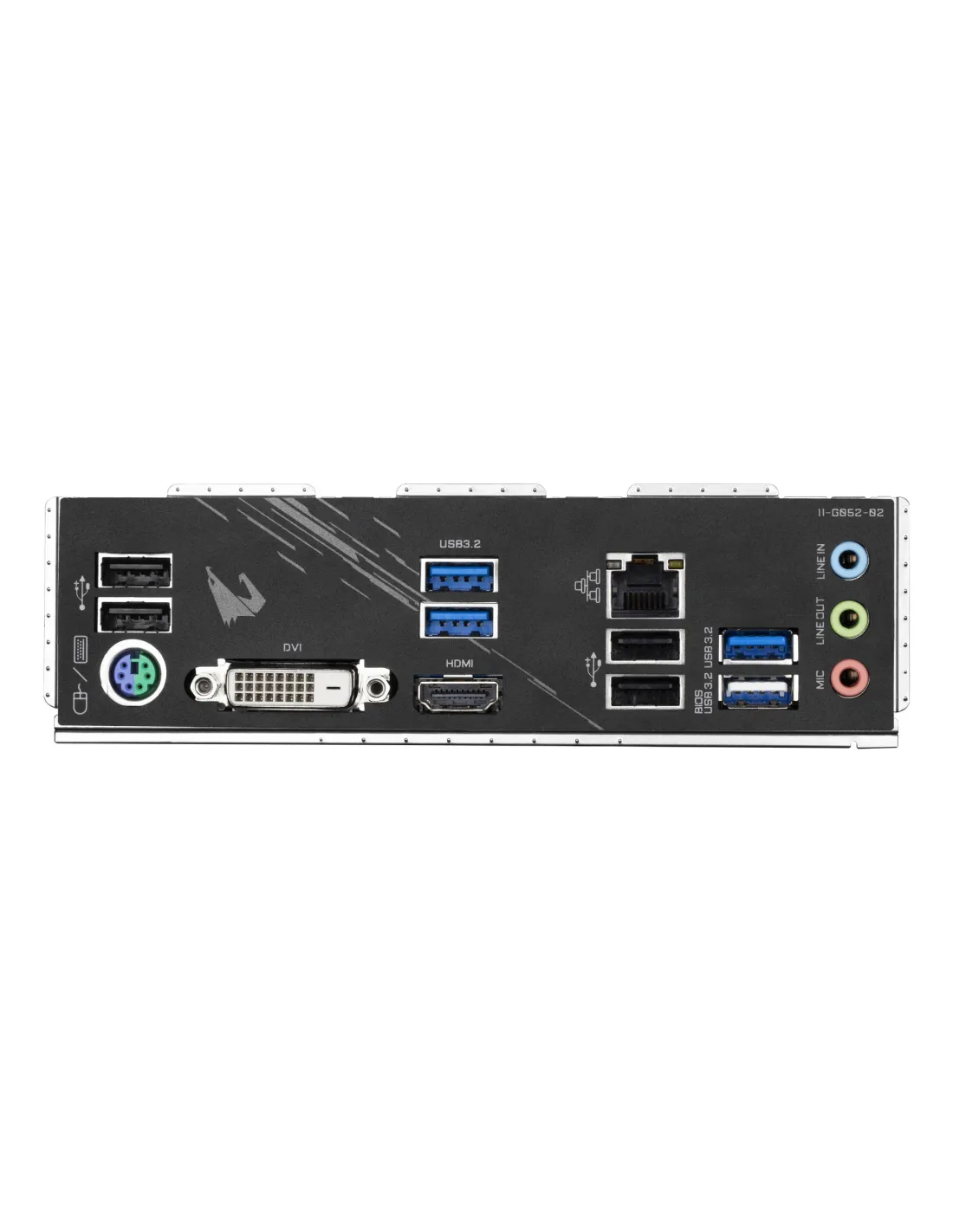

GIGABYTE B550M AORUS ELITE pagrindinė plokštė – galinės įvesties ir išvesties jungtys

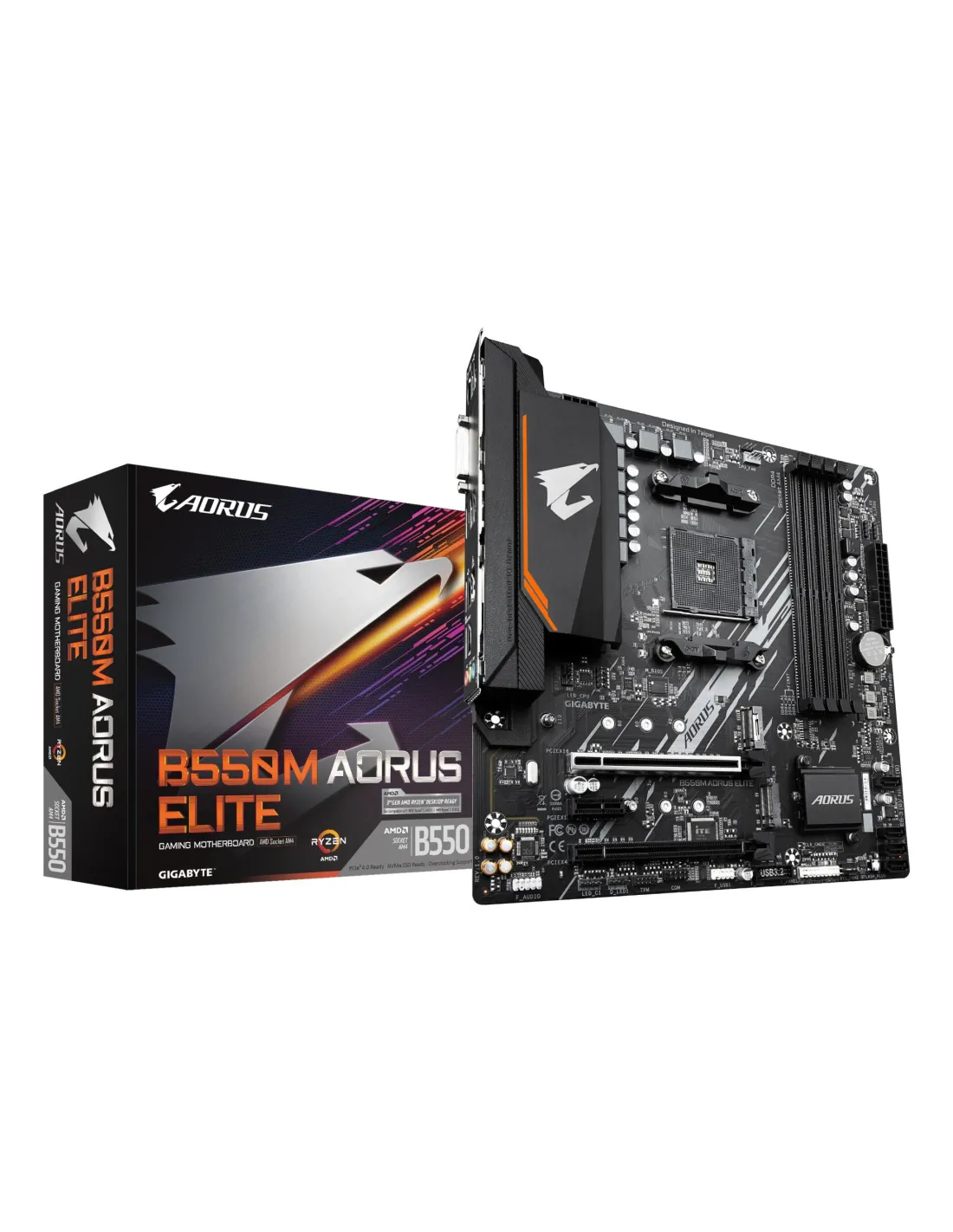

GIGABYTE B550M AORUS ELITE pagrindinė plokštė – plokštė ir pakuotė

Mainboard, GIGABYTE, AMD B550, Socket AM4, micro ATX, RAM DDR4-SDRAM, 4xSlots, 2xNumber of M.2 (M) slots, B550M AORUS ELITE 1.3

Name: Mainboard, GIGABYTE, AMD B550, Socket AM4, micro ATX, RAM DDR4-SDRAM, 4xSlots, 2xNumber of M.2 (M) slots, B550M AORUS ELITE 1.3
Brand: GIGABYTE
SKU: B550MAORUSELITE1.3
Price: 90.54 EUR
Availability: InStock

Kodas B550MAORUSELITE1.3

Turime Lietuvoje

90,54 €

Pristatome 1 - 3 d.d.

AMD B550 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM4 , Supported memory types DDR4-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4096 x 2160 pixels , 4xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , 1xDVI-D ports quantity

Prekė detaliau
Atsiliepimai (0)

CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.072
UNIT BOX LENGTH: 0.275
UNIT BOX WIDTH: 0.27
UNIT CALCULATED WEIGHT, KG: 1.1
PRODUCT NET WEIGHT, KG: 0.8
UNIT CALCULATED VOLUME, CUBM: 0.006244
UNITS PER SHIPPING BOX: 10
SIUNTOS PAKUOTĖS SVORIS, KG: 11
UNIT WIDTH, CM: 27
SUMMARY: GIGABYTE B550M AORUS ELITE MOTHERBOARD - AMD RYZEN 5000 CPUS, 5+3 PHASES VRM, UP TO 4733MHZ DDR4, 1XPCIE 4.0 + 1XPCIE 3.0 M.2, 1GBE LAN, USB 3.2 GEN 1. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM4, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000
SIUNTOS PAKUOTĖS AUKŠTIS, CM: 30
UNIT DEPTH, CM: 27.5
SIUNTOS PAKUOTĖS ILGIS, CM: 55.5
UNIT HEIGHT, CM: 7.2
SIUNTOS PAKUOTĖS PLOTIS, CM: 37.5
NAME: MB AMD B550 SAM4 MATX/B550M AORUS ELITE 1.3 GIGABYTE
PRODUCT COLOUR: BROWN
NUMBER OF STORAGE DRIVES SUPPORTED: 6
PLOTIS, MM: 244
ILGIS, MM: 244
AUKŠTIS, MM: 35
PACKAGE WIDTH, MM: 265
PACKAGE DEPTH, MM: 265
PACKAGE HEIGHT, MM: 65
PACKAGE WEIGHT, G: 1273
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
MODEL: B550M AORUS ELITE 1.3
HARMONIZED SYSTEM (HS) CODE: 84733020
MOTHERBOARD CHIPSET: AMD B550
HDMI PORTS QUANTITY: 1
HDMI VERSION: 2.1
HEADPHONE OUTPUTS: 1
WARRANTY PERIOD, YEAR(S): 3
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
COOLING TYPE: PASSIVE
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
DIRECTX VERSION: 12.0
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
AUDIO CHIP: REALTEK ALC897
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE
COMPONENT FOR: PC
MOTHERBOARD FORM FACTOR: MICRO ATX
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET FAMILY: AMD
POWER SOURCE TYPE: ATX
PROCESSOR MANUFACTURER: AMD
PROCESSOR SOCKET: SOCKET AM4
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES/AMD RYZEN 4000 SERIES/AMD RYZEN 5000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM4
SUPPORTED MEMORY TYPES: DDR4-SDRAM
NUMBER OF MEMORY SLOTS: 4
MEMORY SLOTS TYPE: DIMM
MEMORY CHANNELS: DUAL-CHANNEL
ECC СOMPATIBILITY: ECC & NON-ECC
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 4733
MAXIMUM INTERNAL MEMORY, GB: 128
UNBUFFERED MEMORY: TAIP
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
NUMBER OF HDDS SUPPORTED: 4
RAID LEVELS: 0/1/10
HDCP: TAIP
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 32
USB 2.0 CONNECTORS: 1
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
FRONT PANEL AUDIO CONNECTOR: TAIP
FRONT PANEL CONNECTOR: TAIP
ATX POWER CONNECTOR (24-PIN): TAIP
CPU FAN CONNECTOR: TAIP
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF CHASSIS FAN CONNECTORS: 2
EPS POWER CONNECTOR (8-PIN): TAIP
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF WATER PUMP CONNECTORS: 2
TPM CONNECTOR: TAIP
RGB LED PIN HEADER: TAIP
NUMBER OF RGB LED PIN HEADERS: 5
ETHERNET LAN (RJ-45) PORTS: 1
LINE-IN: TAIP
ETHERNET LAN: TAIP
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
LAN CONTROLLER: REALTEK RTL8111H
WI-FI: NE
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
NUMBER OF M.2 (M) SLOTS: 2
1ST M.2 LARGEST KEY SIZE: 22110
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 3.0
BIOS TYPE: UEFI AMI
BIOS MEMORY SIZE, MBIT: 128
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: TAIP
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
COUNTRY OF ORIGIN: CHINA
BATTERY WEIGHT, G: 3
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
BATTERIES INCLUDED: TAIP
SCREWS INCLUDED: TAIP
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
12V POWER CONNECTOR: TAIP
USB 2.0 PORTS QUANTITY: 4
MICROPHONE IN: TAIP
SERIAL PORT HEADERS: 1
MAXIMUM NUMBER OF SMP PROCESSORS: 1
PS/2 PORTS QUANTITY: 1
PCI EXPRESS X1 (GEN 3.X) SLOTS: 1
DVI-D PORTS QUANTITY: 1
